SV21R-UEMDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )SED

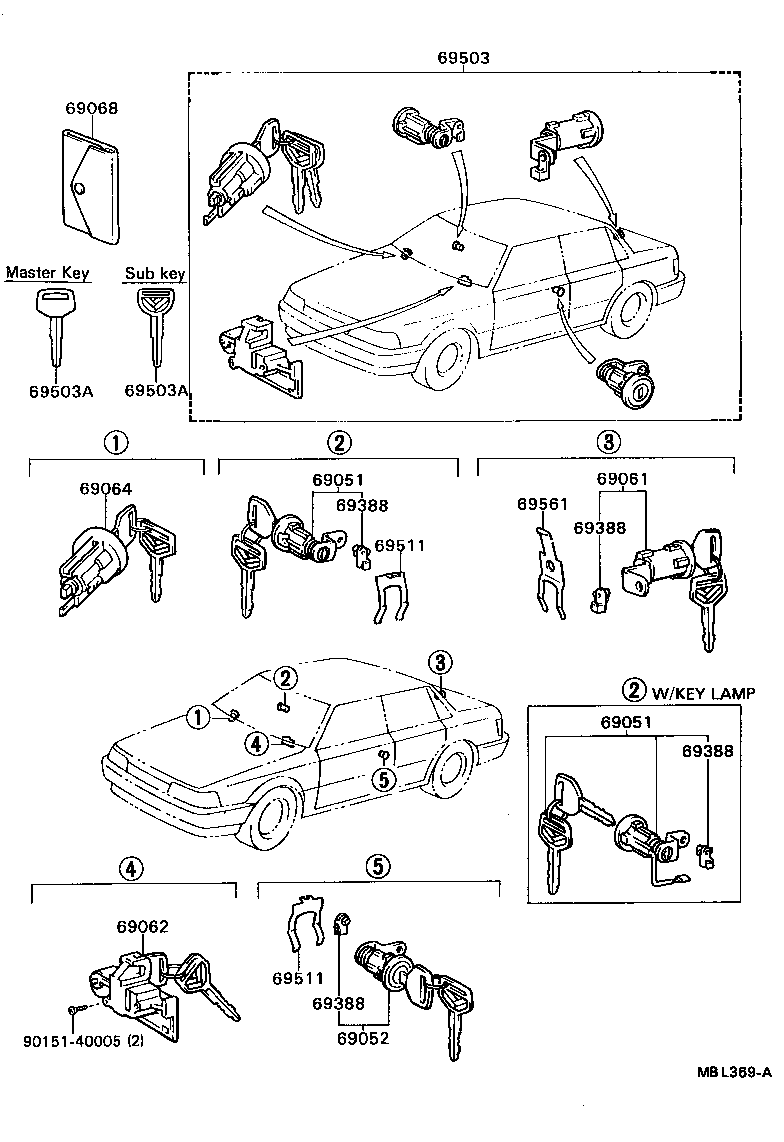

Click highlighted areas on diagram

diagram 69051 69051 69052 69061 69062 69064 69068 69388 69388 69388 69388 69503 69503A 69503A 69511 69511 69561 9015140005
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-32060

SV2#..CS,S

 1
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-32060

SV2#..CS,S

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-32060

SV2#

 1
69052-32060

SV2#,VZV21

 1
69052-32060

SV2#

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-32120

SV2#..SED

 1
69055-32120

SV2#,VZV21..SED

 1
69055-32120

SV2#..SED

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-32050

SV2#,VZV21

 1
69056-32050

SV2#

 1
69056-32050

SV2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-32120

SV2#..CS,S

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

SV2#,VZV21

 1
69555-20010

SV2#

 1
69555-20010

SV2#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69759-32080

SV2#

DOOR,LH

 1
69759-32080

SV2#,VZV21

FR DOOR,LH

 1
69759-32070

SV2#

FR DOOR,RH

 1
69759-32080

SV2#

FR DOOR,LH

 1
69759-24080

SV2#,VZV21..SED

LUGGAGE DOOR

 1
69759-32070

SV2#

DOOR,RH

 1
69759-32070

SV2#,VZV21

FR DOOR,RH

 1
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69759-32080

SV2#

DOOR,LH

 1
69759-32080

SV2#,VZV21

FR DOOR,LH

 1
69759-32070

SV2#

FR DOOR,RH

 1
69759-32080

SV2#

FR DOOR,LH

 1
69759-24080

SV2#,VZV21..SED

LUGGAGE DOOR

 1
69759-32070

SV2#

DOOR,RH

 1
69759-32070

SV2#,VZV21

FR DOOR,RH

 1
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69759-32080

SV2#

DOOR,LH

 1
69759-32080

SV2#,VZV21

FR DOOR,LH

 1
69759-32070

SV2#

FR DOOR,RH

 1
69759-32080

SV2#

FR DOOR,LH

 1
69759-24080

SV2#,VZV21..SED

LUGGAGE DOOR

 1
69759-32070

SV2#

DOOR,RH

 1
69759-32070

SV2#,VZV21

FR DOOR,RH

 1
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69759-32080

SV2#

DOOR,LH

 1
69759-32080

SV2#,VZV21

FR DOOR,LH

 1
69759-32070

SV2#

FR DOOR,RH

 1
69759-32080

SV2#

FR DOOR,LH

 1
69759-24080

SV2#,VZV21..SED

LUGGAGE DOOR

 1
69759-32070

SV2#

DOOR,RH

 1
69759-32070

SV2#,VZV21

FR DOOR,RH

 1
69759-24080

SV2#..SED

LUGGAGE DOOR

 1
69503 - CYLINDER SET, LOCK
69005-32410

SV2#..SED..(CS,S)

 1
69503A - KEY, BLANK
90999-00118

SV2#

MASTER KEY,W(*68),MASTER KEY W/*68

 1
90999-00099

SV2#,VZV21

MASTER KEY

 1
90999-00099

SV2#

MASTER KEY,MASTER KEY

 1
90999-00099

SV2#

MASTER KEY,MASTER KEY

 1
90999-00100

SV2#

SUB KEY,SUB KEY

 1
90999-00118

SV2#,VZV21

MASTER KEY,W(*68)

 1
90999-00100

SV2#,VZV21

SUB KEY

 1
90999-00100

SV2#

SUB KEY,SUB KEY

 1
90999-00118

SV2#

MASTER KEY,W(*68),MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00118

SV2#

MASTER KEY,W(*68),MASTER KEY W/*68

 1
90999-00099

SV2#,VZV21

MASTER KEY

 1
90999-00099

SV2#

MASTER KEY,MASTER KEY

 1
90999-00099

SV2#

MASTER KEY,MASTER KEY

 1
90999-00100

SV2#

SUB KEY,SUB KEY

 1
90999-00118

SV2#,VZV21

MASTER KEY,W(*68)

 1
90999-00100

SV2#,VZV21

SUB KEY

 1
90999-00100

SV2#

SUB KEY,SUB KEY

 1
90999-00118

SV2#

MASTER KEY,W(*68),MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

SV2#,VZV21

 2
69511-32020

SV2#

 2
69511-32020

SV2#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

SV2#,VZV21

 2
69511-32020

SV2#

 2
69511-32020

SV2#

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-32020

SV2#..SED

 1
69561-32020

SV2#,VZV21..SED

 1
69561-32020

SV2#..SED

 1
Common parts
90151-40005

(8808- )

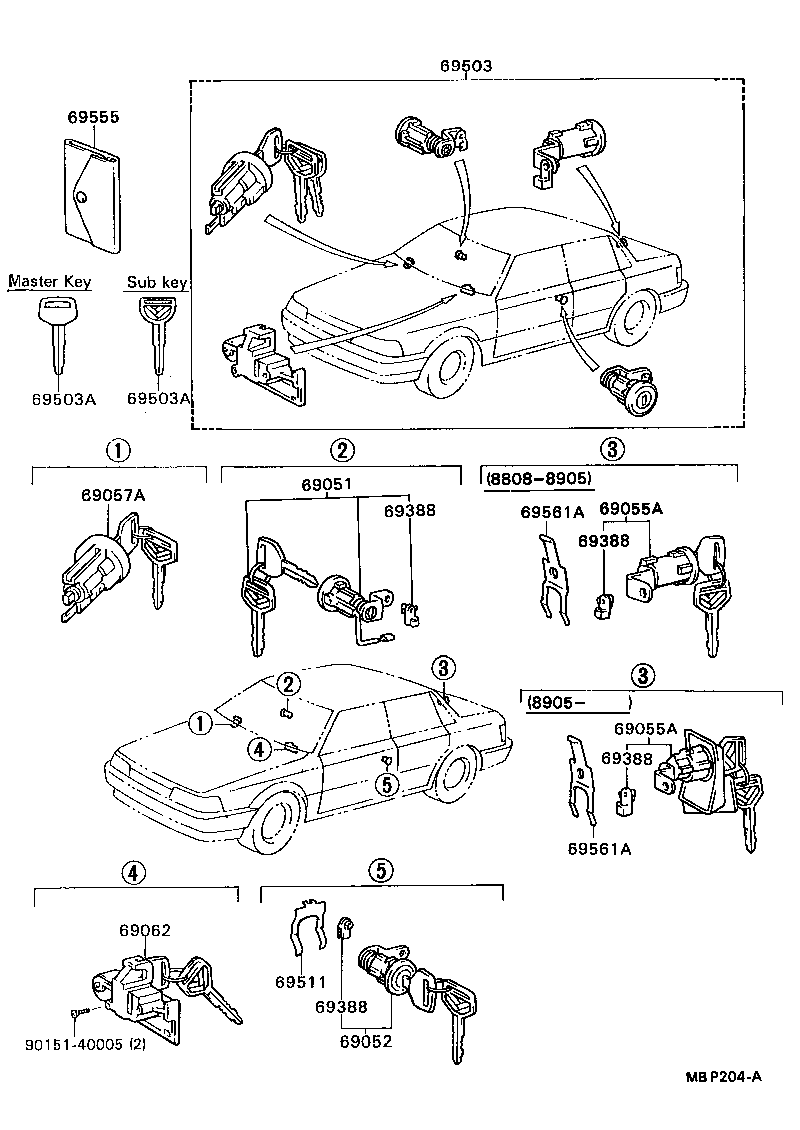

Click highlighted areas on diagram

diagram 69051 69052 69055A 69055A 69057A 69062 69388 69388 69388 69388 69503 69503A 69503A 69511 69555 69561A 69561A 9015140005
Part # Description Qty Price
Common parts
90151-40005
