SV21R-UEMDKQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )3SFE

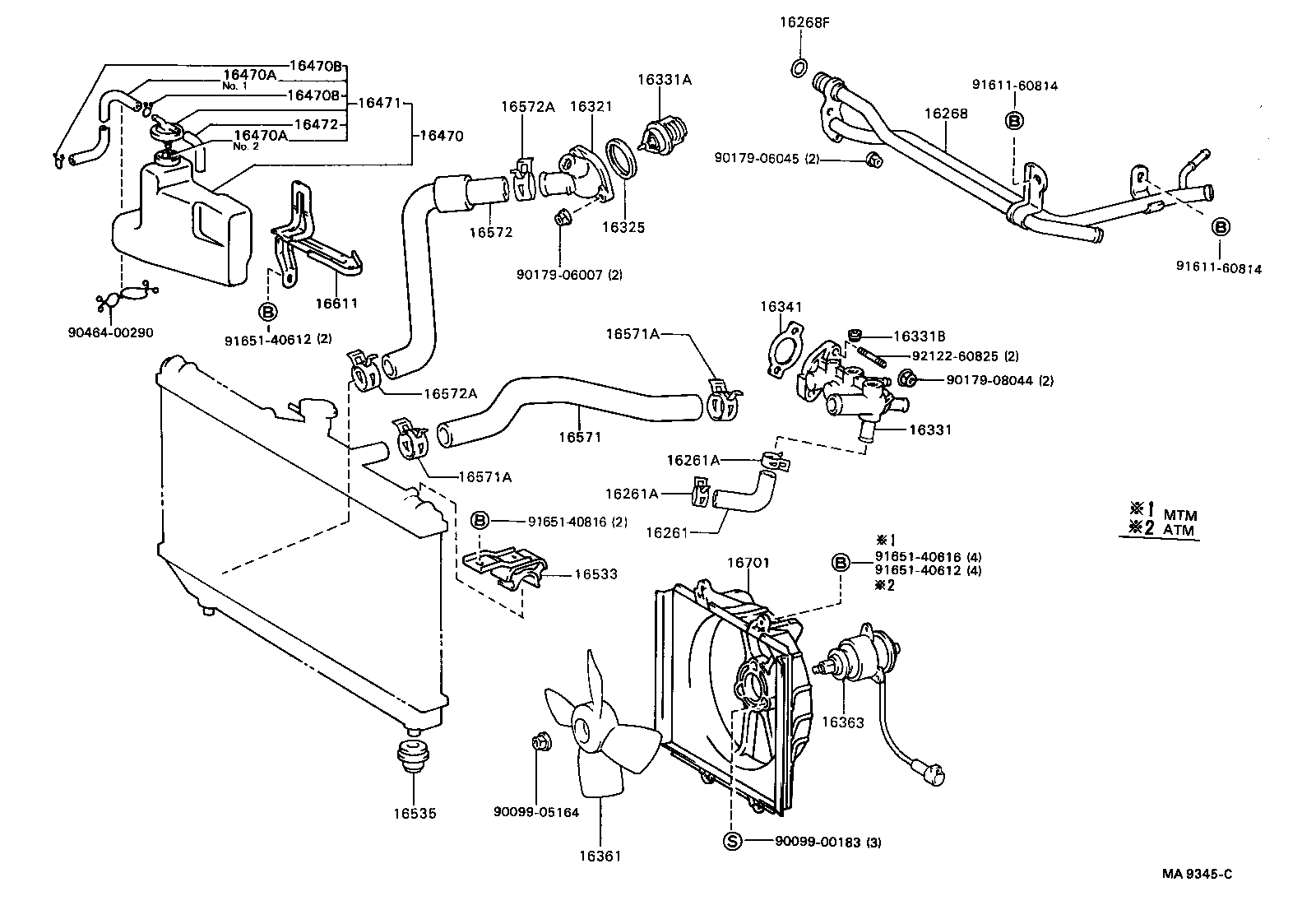

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16268 16268F 16321 16325 16331 16331A 16331B 16341 16361 16363 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16701 9009900183 9009905164 9017906007 9017906045 9017908044 9046400290 9161160814 9161160814 9165140612 9165140612 9165140616 9165140816 9212260825
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-74010

3SFE..SV21

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SV21

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE..SV21

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-74010

3SFE..SV21

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3SFE..SV21

 1
16321 - INLET, WATER
16321-88360

3SFE..SV21

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1SI,3SFE..SV2#

 1
16325-63010

1SI,3SFE..SV2#

 1
16331 - OUTLET, WATER
16304-74030

3SFE..SV21

 1
16331A - THERMOSTAT
90916-03046

1SI,3SFE..SV2#

*WAX 82-95

 1
90916-03046

1SI,3SFE..SV2#

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90344-53011

3SFE..SV21..5F

 1
90345-53007

3SFE..SV21..5F

 1
16341 - GASKET, WATER OUTLET
16341-63010

1SI,3SFE..SV2#

 1
16361 - FAN
16361-63040

1SI,3SFE..SV2#..5F

 1
16361-63040

1SI,3SFE..SV2#..5F

 1
16363 - MOTOR, COOLING FAN
16363-10010

1SI,3SFE..SV2#..5F

 1
16363-10010

1SI,3SFE..SV2#..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74040

1SI,3SFE..SV2#

 1
16470-74041

1SI,3SFE..SV2#

 1
16470-74040

1SI,3SFE..SV2#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1SI,3SFE..SV2#

*H,L=450,NO.1,NO.2

 1
90445-12078

1SI,3SFE..SV2#

L=600,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1SI,3SFE..SV2#

*H,L=450,NO.1,NO.2

 1
90445-12078

1SI,3SFE..SV2#

L=600,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1SI,3SFE..SV2#

 2
90467-11085

1SI,3SFE..SV2#

 2
90467-11085

1SI,3SFE..SV2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1SI,3SFE..SV2#

 2
90467-11085

1SI,3SFE..SV2#

 2
90467-11085

1SI,3SFE..SV2#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74030

1SI,3SFE..SV2#

 1
16405-74030

1SI,3SFE..SV2#

 1
16405-74031

1SI,3SFE..SV2#

 1
16472 - HOSE, BREATHER
85338-74040

1SI,3SFE..SV2#

 1
85338-74040

1SI,3SFE..SV2#

 1
85338-74040

1SI,3SFE..SV2#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-74040

1SI,3SFE..SV2#

 2
16533-74040

1SI,3SFE..SV2#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74030

1SI,3SFE..SV2#

 2
16535-74030

1SI,3SFE..SV2#

 2
16571 - HOSE, RADIATOR, INLET
16571-74050

3SFE..SV21

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

1SI,3SFE..SV2#

 2
90467-33002

1SI,3SFE..SV2#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33002

1SI,3SFE..SV2#

 2
90467-33002

1SI,3SFE..SV2#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74050

1SI,3SFE..SV2#

 1
16572-74050

1SI,3SFE..SV2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

1SI,3SFE..SV2#

 2
90467-33002

1SI,3SFE..SV2#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

1SI,3SFE..SV2#

 2
90467-33002

1SI,3SFE..SV2#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74030

1SI,3SFE..SV2#

 1
16611-74030

1SI,3SFE..SV2#

 1
16611-74030

1SI,3SFE..SV2#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-74070

1SI,3SFE..SV2#..5F

 1
16711-74070

1SI,3SFE..SV2#..5F

 1
Common parts
90099-00183
90099-05164
90179-06007
90179-06045
90179-08044
90464-00290
91611-60814
91651-40612
91651-40616
91651-40816
92122-60825

ILLUST NO. 2 OF 2(8808- )

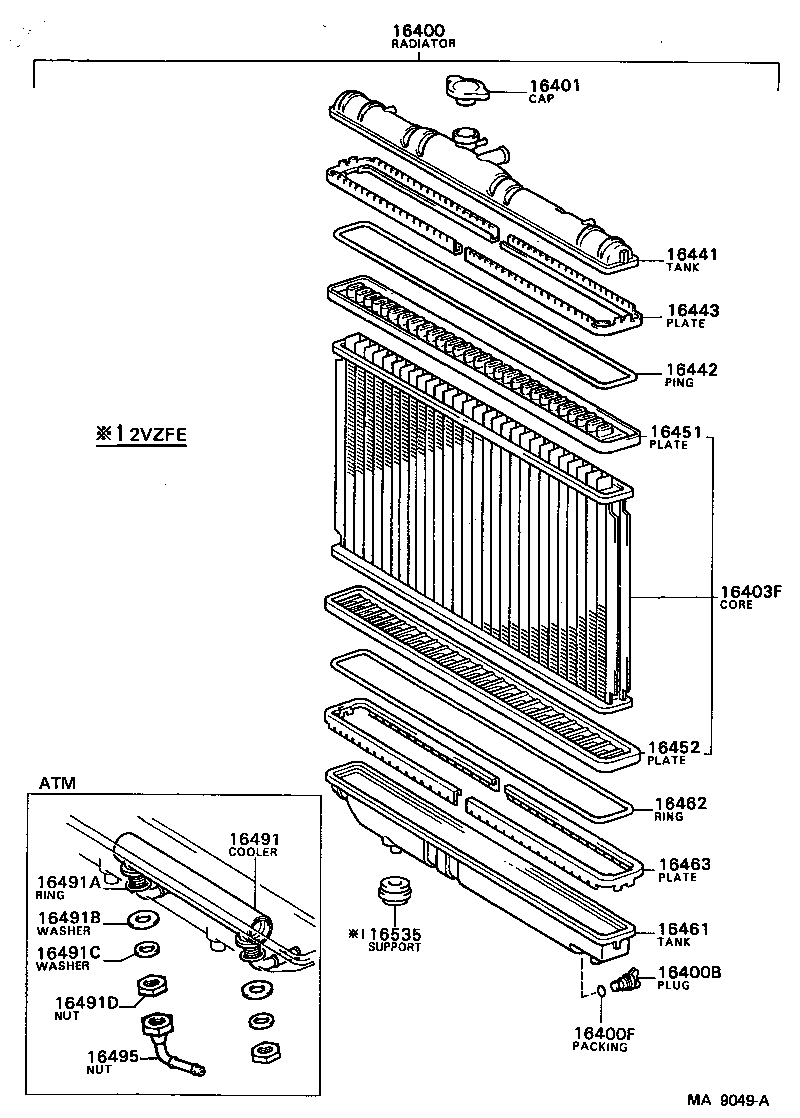

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D 16495 16535
Part # Description Qty Price

ILLUST NO. 1 OF 2(8808- )

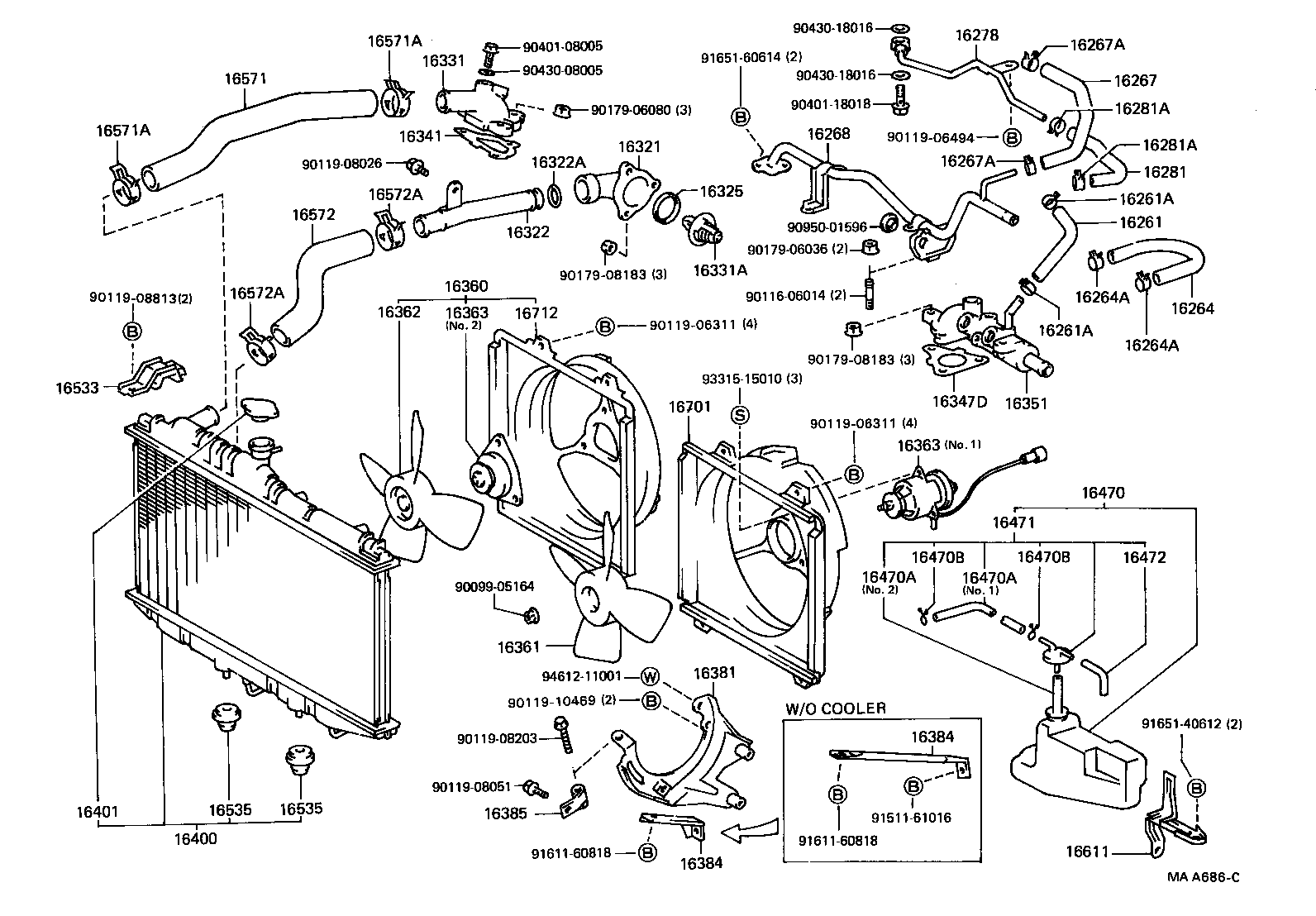

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16268 16278 16281 16281A 16281A 16321 16322 16322A 16325 16331 16331A 16341 16347D 16351 16360 16361 16362 16363 16363 16381 16384 16384 16385 16400 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16535 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16701 16712 9009905164 9011606014 9011906311 9011906311 9011906494 9011908026 9011908051 9011908203 9011908813 9011910469 9017906036 9017906080 9017908183 9017908183 9040108005 9040118018 9043008005 9043018016 9043018016 9095001596 9151161016 9161160818 9161160818 9165140612 9165160614 9331515010 9461211001
Part # Description Qty Price
Common parts
90099-05164
90116-06014
90119-06311
90119-06494
90119-08026
90119-08051
90119-08203
90119-08813
90119-10469
90179-06036
90179-06080
90179-08183
90401-08005
90401-18018
90430-08005
90430-18016
90950-01596
91511-61016
91611-60818
91651-40612
91651-60614
93315-15010
94612-11001
