SV20RG-UWMBLQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
1SI
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

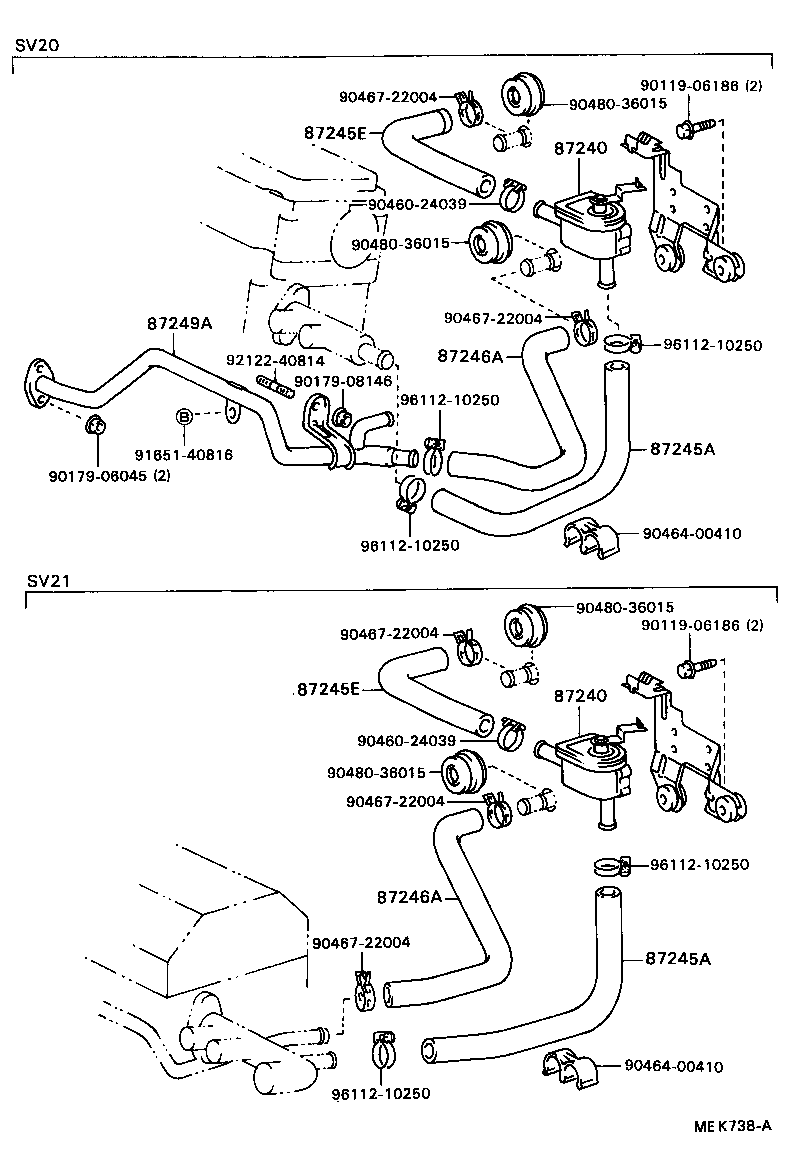

(8611- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-32040 |
SV2# |
1 | ||
| 87240-32040 |
SV2#,VZV21 |
1 | ||
| 87240-32040 |
SV2# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-32040 |
SV2# |
1 | ||
| 87240-32040 |
SV2#,VZV21 |
1 | ||
| 87240-32040 |
SV2# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-32150 |
SV2# |
1 | ||
| 87245-32150 |
SV2# |
1 | ||
| 87245-32150 |
SV2#,VZV21 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-32150 |
SV2# |
1 | ||
| 87245-32150 |
SV2# |
1 | ||
| 87245-32150 |
SV2#,VZV21 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30500 |
SV20 *H,L=360 |
1 | ||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30500 |
SV20 *H,L=360 |
1 | ||
| 99556-30500 |
SV20 L=500 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-20180 |
SV20 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90179-06045 | ||||
| 90179-08146 | ||||
| 90460-24039 | ||||
| 90464-00410 | ||||
| 90467-22004 | ||||
| 90480-36015 | ||||
| 91651-40816 | ||||
| 92122-40814 | ||||
| 96112-10250 | ||||

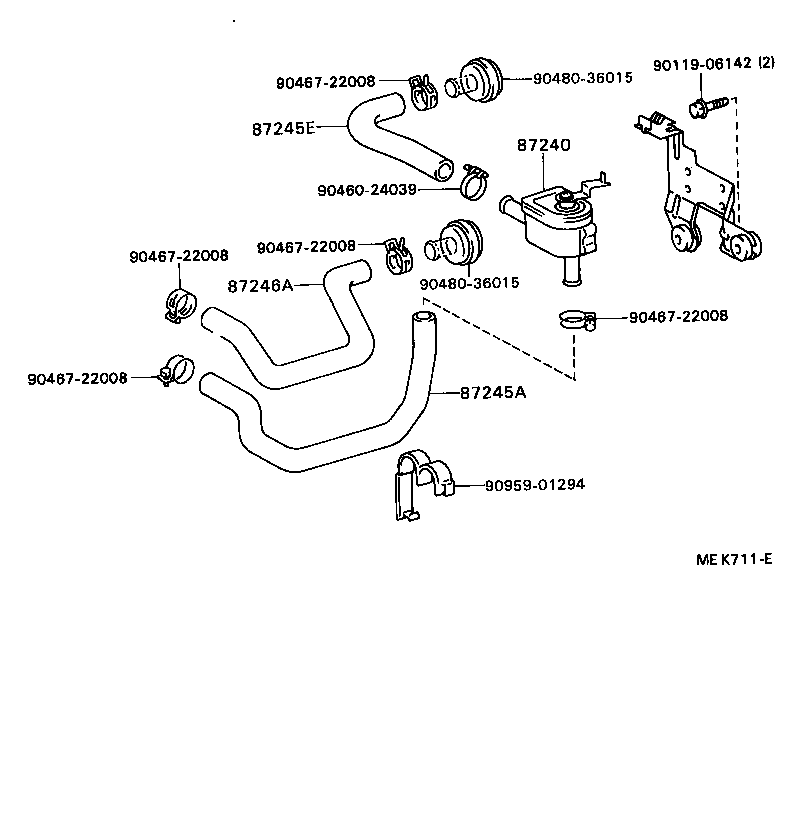

(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06142 | ||||
| 90460-24039 | ||||
| 90467-22008 | ||||
| 90480-36015 | ||||
| 90959-01294 | ||||
