SV20RG-UWMBLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

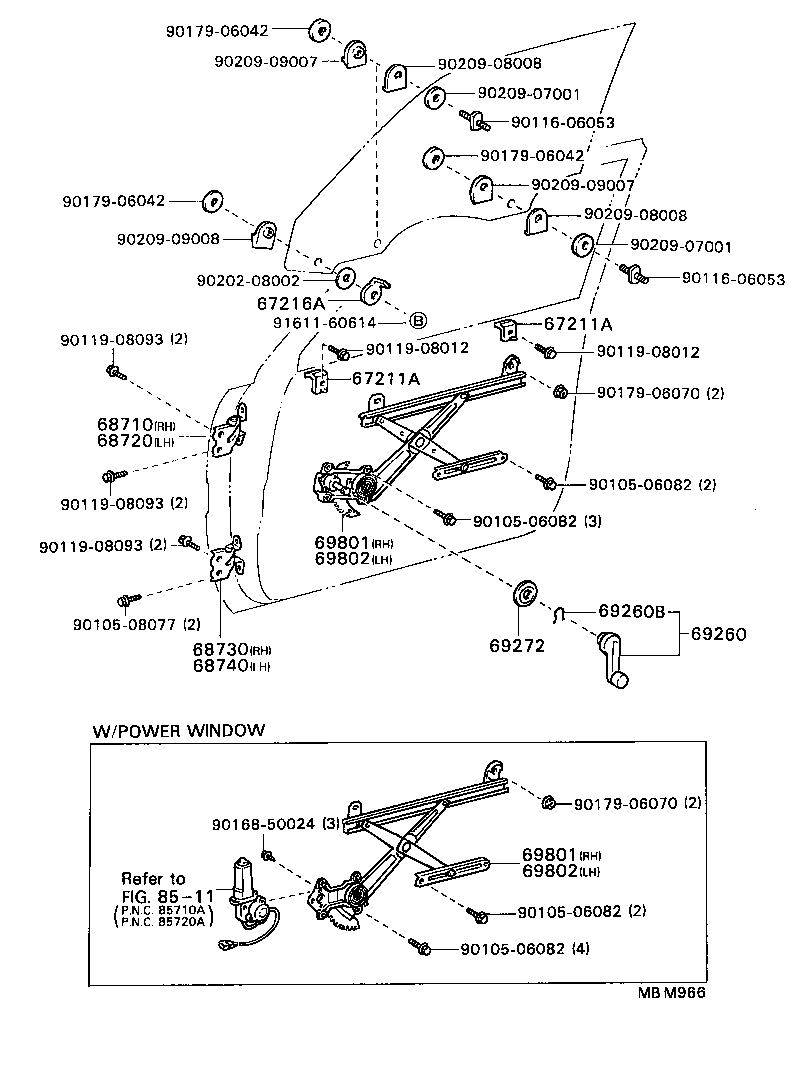

(8611- )

Click highlighted areas on diagram

diagram 67211A 67211A 67216A 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010506082 9010506082 9010506082 9010506082 9010508077 9011606053 9011606053 9011908012 9011908012 9011908093 9011908093 9011908093 9016850024 9017906042 9017906042 9017906042 9017906070 9017906070 9020208002 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007 9020909008 9161160614
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-32010

SV2#,VZV21

 4
67211-32010

SV2#

 4
67211-32010

SV2#

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-32010

SV2#,VZV21

 4
67211-32010

SV2#

 4
67211-32010

SV2#

 4
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-32010

SV2#

 1
67216-32010

SV2#,VZV21

 2
67216-32010

SV2#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

SV2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

SV2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

SV2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

SV2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203023

SV2#

GRAY,MEDIUM GRAY

 2
69260-2203015

SV2#

DARK BEIGE,TRIM4#

 2
69260-2203023

SV2#

MEDIUM GRAY,TRIM1#

 2
69260-2203015

SV2#

BEIGE,DARK BEIGE

 2
69260-2203014

SV2#

BLUE,DARK BLUE

 2
69260-2203014

SV2#

DARK BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

SV2#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

SV2#

NATURAL WHITE,TRIM1#,4#,8#

 2
69285-22010

SV2#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-32050

SV2#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-32050

SV2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-32050

SV2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-32050

SV2#

 1
Common parts
90105-06082
90105-08077
90116-06053
90119-08012
90119-08093
90168-50024
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
90209-09008
91611-60614
Linked diagrams
8511

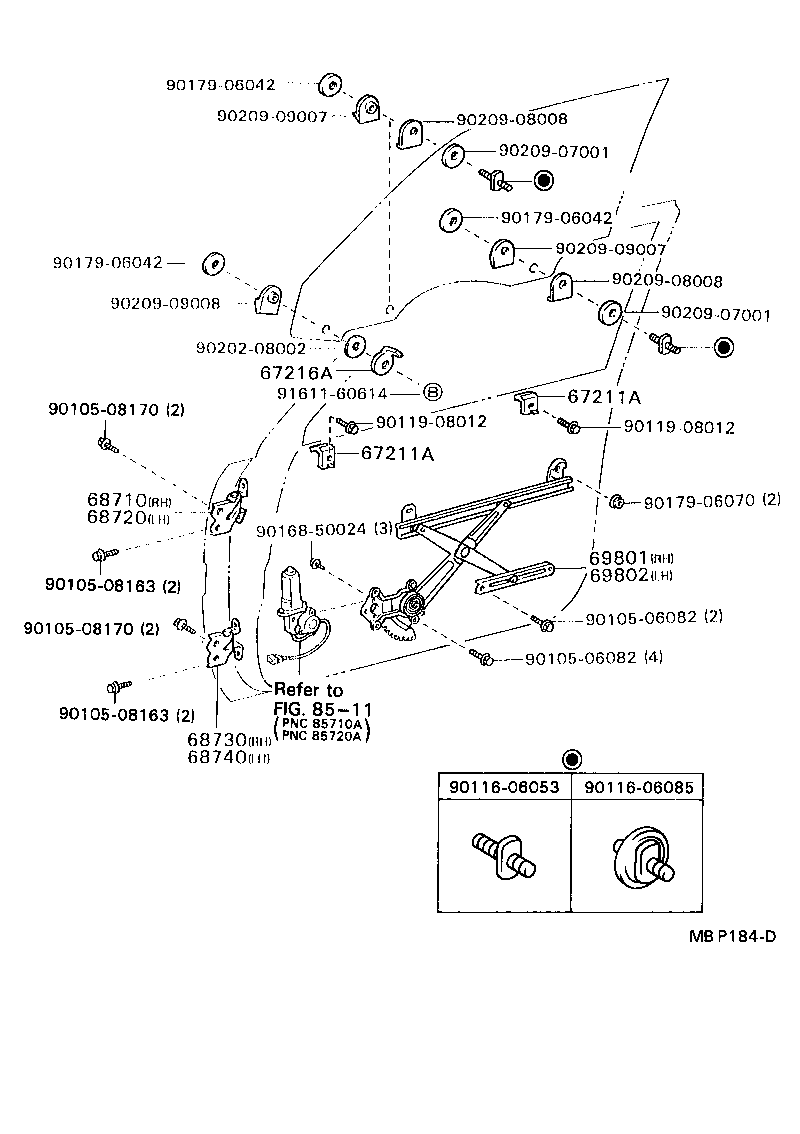

(8808- )

Click highlighted areas on diagram

diagram 67211A 67211A 67216A 68710 68720 68730 68740 69801 69802 8511 9010506082 9010506082 9010508163 9010508163 9010508170 9010508170 9011606053 9011606085 9011908012 9011908012 9016850024 9017906042 9017906042 9017906042 9017906070 9020208002 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007 9020909008 9161160614
Part # Description Qty Price
Common parts
90105-06082
90105-08163
90105-08170
90116-06053
90116-06085
90119-08012
90168-50024
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
90209-09008
91611-60614
Linked diagrams
8511
