SV20R-UEPBLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )

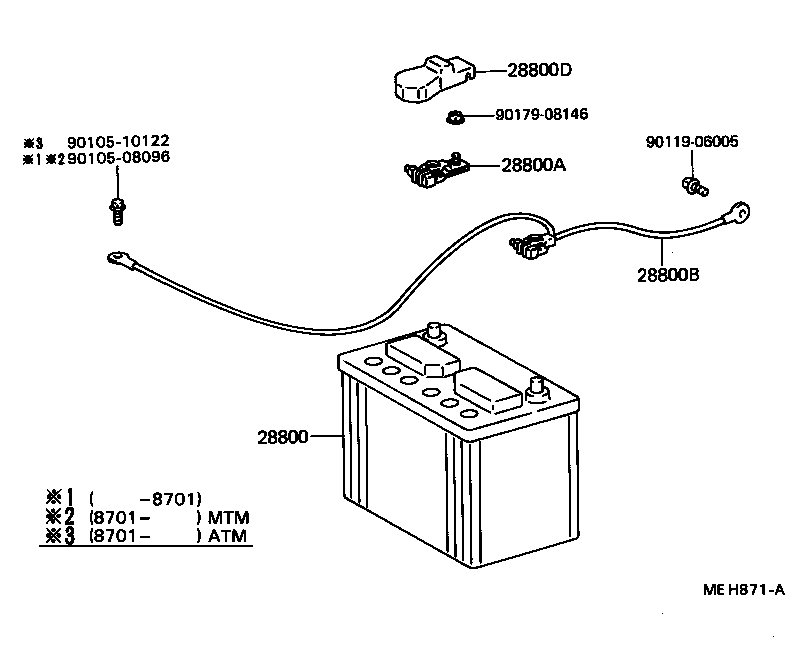

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800D 9010508096 9010510122 9011906005 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-72010

1SI,3SFE..SV2#

34B19L(S),34B19L(S)

 1
28800-72010

1SI,3SFE..SV2#

34B19L(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

1SI,3SFE,2VZFE..SV2#,VZV21

 1
90982-05030

1SI,3SFE..SV2#

 1
90982-05030

1SI,3SFE..SV2#

 1
28800B - CABLE, BATTERY TO GROUND
82123-32051

1SI,3SFE..SV2#

 1
82123-32050

1SI,3SFE..SV2#

 1
82123-32051

1SI,3SFE..SV2#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-32030

1SI,3SFE..SV2#

 1
82821-32030

1SI,3SFE..SV2#

 1
82821-32030

1SI,3SFE,2VZFE..SV2#,VZV21

 1
Common parts
90105-08096
90105-10122
90119-06005
90179-08146

(8808- )

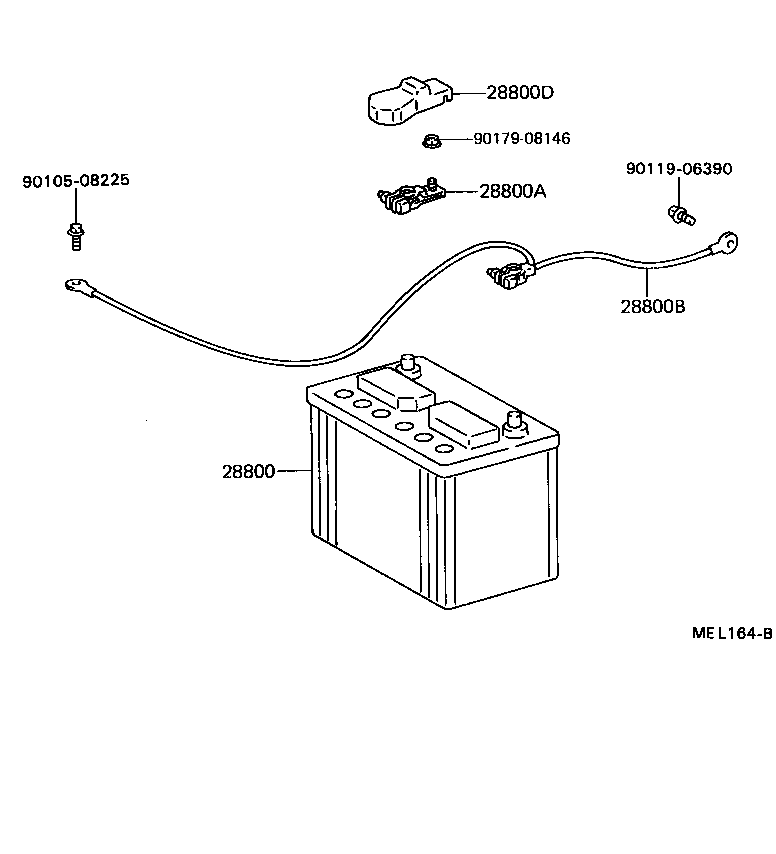

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800D 9010508225 9011906390 9017908146
Part # Description Qty Price
Common parts
90105-08225
90119-06390
90179-08146
