SV20R-UEPBLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

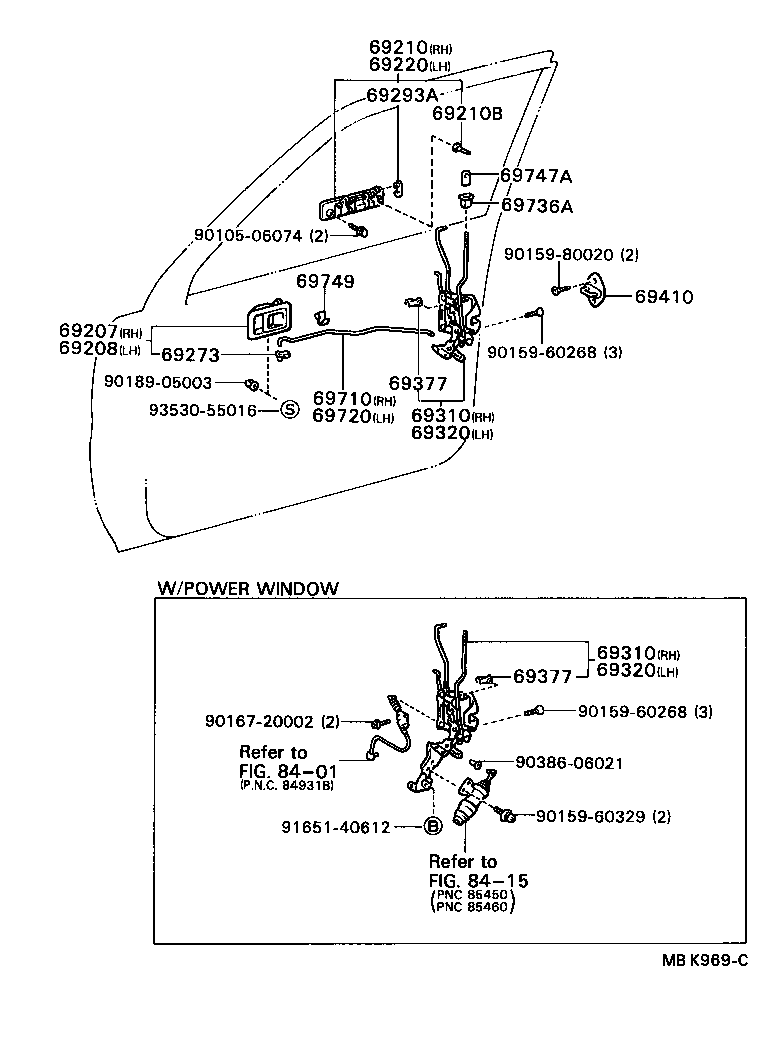

(8611- )

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273 69293A 69310 69310 69320 69320 69377 69377 69410 69710 69720 69736A 69747A 69749 8401 8415 9010506074 9015960268 9015960268 9015960329 9015980020 9016720002 9018905003 9038606021 9165140612 9353055016
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-3202005

SV2#..CS,S

BEIGE,DARK BEIGE

 1
69205-3202003

SV2#..CS,S

GRAY,MEDIUM GRAY

 1
69205-3202004

SV2#..CS,S

BLUE,DARK BLUE

 1
69205-3202003

SV2#..CS,S

MEDIUM GRAY,TRIM1#

 1
69205-3202004

SV2#..CS,S

DARK BLUE,TRIM8#

 1
69205-3202005

SV2#..CS,S

DARK BEIGE,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-3202004

SV2#..CS,S

BLUE,DARK BLUE

 1
69206-3202003

SV2#..CS,S

GRAY,MEDIUM GRAY

 1
69206-3202005

SV2#..CS,S

DARK BEIGE,TRIM4#

 1
69206-3202005

SV2#..CS,S

BEIGE,DARK BEIGE

 1
69206-3202003

SV2#..CS,S

MEDIUM GRAY,TRIM1#

 1
69206-3202004

SV2#..CS,S

DARK BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-32030

SV2#..CS,S

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

SV2#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-32030

SV2#

 1
69220-32030

SV2#

 1
69220-32030

SV2#,VZV21

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-14050

SV2#..CS,S

RH

 1
69759-14050

SV2#..CS,S

RH

 1
69759-24070

SV2#..CS,S

LH

 1
69759-24070

SV2#..CS,S

LH

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050

SV2#

RH

 1
69293-12060

SV2#,VZV21

LH

 1
69293-12050

SV2#..CS,S

RH

 1
69293-12060

SV2#

LH

 1
69293-12060

SV2#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-32180

SV2#..CS,S

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-32180

SV2#..CS,S

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-32170

SV2#..CS,S

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-32170

SV2#..CS,S

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24050

SV2#

LH

 1
69759-24060

SV2#

RH

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24050

SV2#

LH

 1
69759-24060

SV2#

RH

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

SV2#,VZV21

 2
69410-87001

SV2#

 1
69410-87001

SV2#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-32030

SV2#

 1
69711-32030

SV2#

 1
69711-32030

SV2#,VZV21

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-32020

SV2#

 1
69712-32020

SV2#

 1
69712-32020

SV2#,VZV21

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-12030

SV2#,VZV21

 2
69736-12030

SV2#

 2
69736-12030

SV2#

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3202003

SV2#

GRAY,MEDIUM GRAY

 2
69741-3202005

SV2#,VZV21

DARK BEIGE,TRIM4#

 2
69741-3202004

SV2#

BLUE,DARK BLUE

 2
69741-3202004

SV2#,VZV21

DARK BLUE,TRIM8#

 2
69741-3202004

SV2#

DARK BLUE,DARK BLUE,TRIM8#

 2
69741-3202005

SV2#

BEIGE,DARK BEIGE

 2
69741-3202003

SV2#

MEDIUM GRAY,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30020

SV2#

 2
69749-30020

SV2#,VZV21

 2
69749-30020

SV2#

 2
Common parts
90105-06074
90159-60268
90159-60329
90159-80020
90167-20002
90189-05003
90386-06021
91651-40612
93530-55016
Linked diagrams
8401
8415

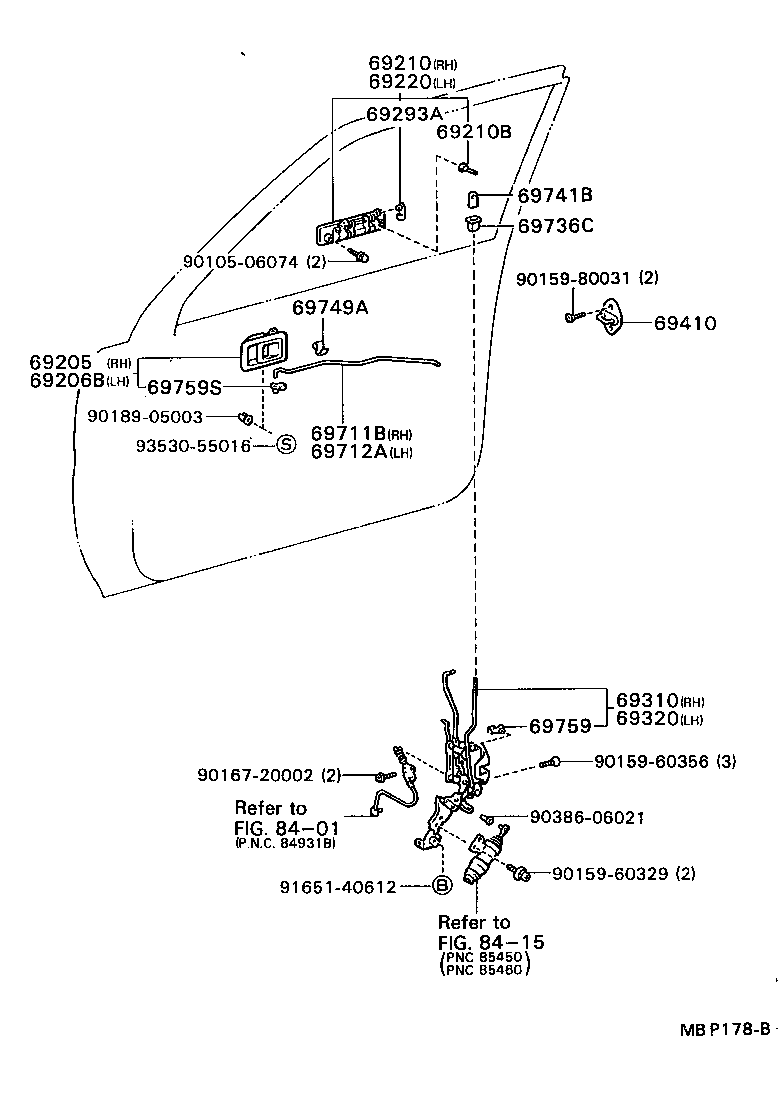

(8808- )

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69293A 69310 69320 69410 69711B 69712A 69736C 69741B 69749A 69759 69759S 8401 8415 9010506074 9015960329 9015960356 9015980031 9016720002 9018905003 9038606021 9165140612 9353055016
Part # Description Qty Price
Common parts
90105-06074
90159-60329
90159-60356
90159-80031
90167-20002
90189-05003
90386-06021
91651-40612
93530-55016
Linked diagrams
8401
8415
