SV20R-UEMDLQ (1986)
Toyota Camry
Production
Nov 1986
-
Apr 1989
Engine
1SI
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

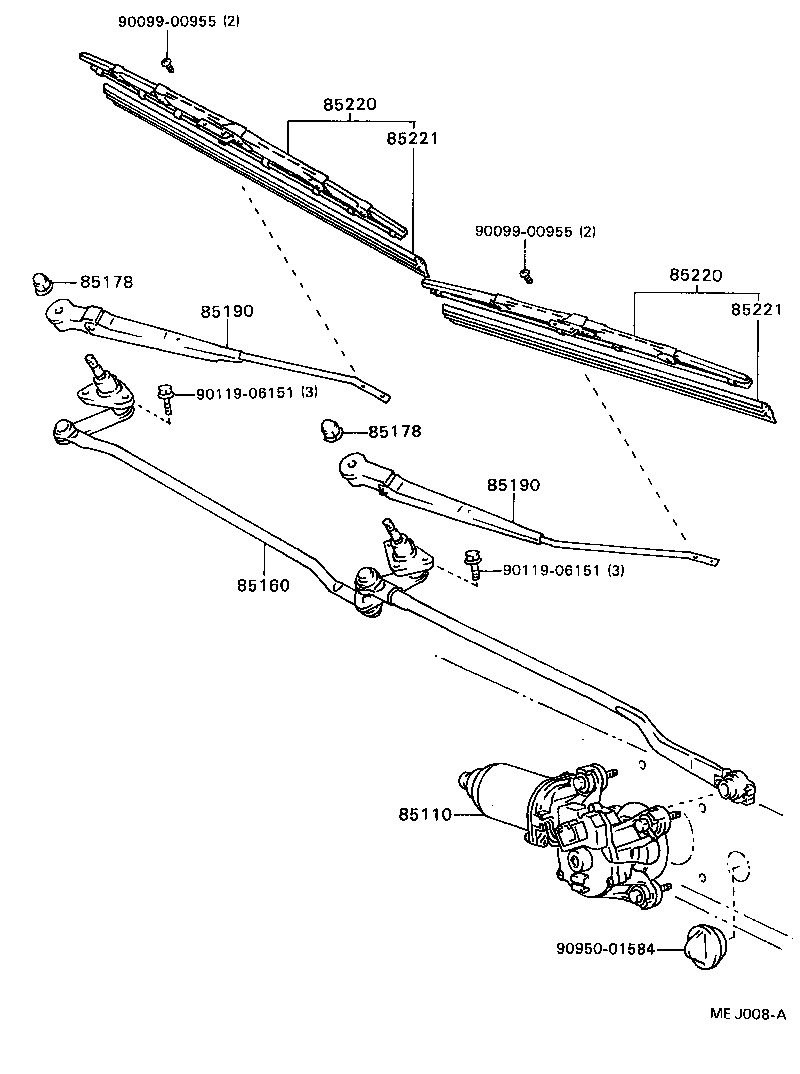

(8611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-32210 |
SV2# |
1 | ||
| 85110-32210 |
SV2#,VZV21 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-32110 |
SV2#,VZV21 |
1 | ||
| 85160-32110 |
SV2# |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
SV2#,VZV21 |
2 | ||
| 90176-08040 |
SV2# |
2 | ||
| 90176-08040 |
SV2#,VZV21 |
2 | ||
| 90176-08033 |
SV2# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
SV2#,VZV21 |
2 | ||
| 90176-08040 |
SV2# |
2 | ||
| 90176-08040 |
SV2#,VZV21 |
2 | ||
| 90176-08033 |
SV2# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-32190 |
SV2#,VZV21 LH |
1 | ||
| 85210-32190 |
SV2# LH |
1 | ||
| 85190-32260 |
SV2#,VZV21 RH |
1 | ||
| 85190-32260 |
SV2# RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-32190 |
SV2#,VZV21 LH |
1 | ||
| 85210-32190 |
SV2# LH |
1 | ||
| 85190-32260 |
SV2#,VZV21 RH |
1 | ||
| 85190-32260 |
SV2# RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16230 |
SV2#,VZV21 LH |
1 | ||
| 85220-32590 |
SV2# RH |
1 | ||
| 85220-32590 |
SV2#,VZV21 RH |
1 | ||
| 85220-16230 |
SV2# LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16230 |
SV2#,VZV21 LH |
1 | ||
| 85220-32590 |
SV2# RH |
1 | ||
| 85220-32590 |
SV2#,VZV21 RH |
1 | ||
| 85220-16230 |
SV2# LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-32050 |
SV2# RH |
1 | ||
| 85221-30100 |
SV2#,VZV21 LH |
1 | ||
| 85221-30100 |
SV2# LH |
1 | ||
| 85221-30100 |
SV2# LH |
1 | ||
| 85221-32050 |
SV2#,VZV21 RH |
1 | ||
| 85221-32050 |
SV2# RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-32050 |
SV2# RH |
1 | ||
| 85221-30100 |
SV2#,VZV21 LH |
1 | ||
| 85221-30100 |
SV2# LH |
1 | ||
| 85221-30100 |
SV2# LH |
1 | ||
| 85221-32050 |
SV2#,VZV21 RH |
1 | ||
| 85221-32050 |
SV2# RH |
1 | ||
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06151 | ||||
| 90950-01584 | ||||

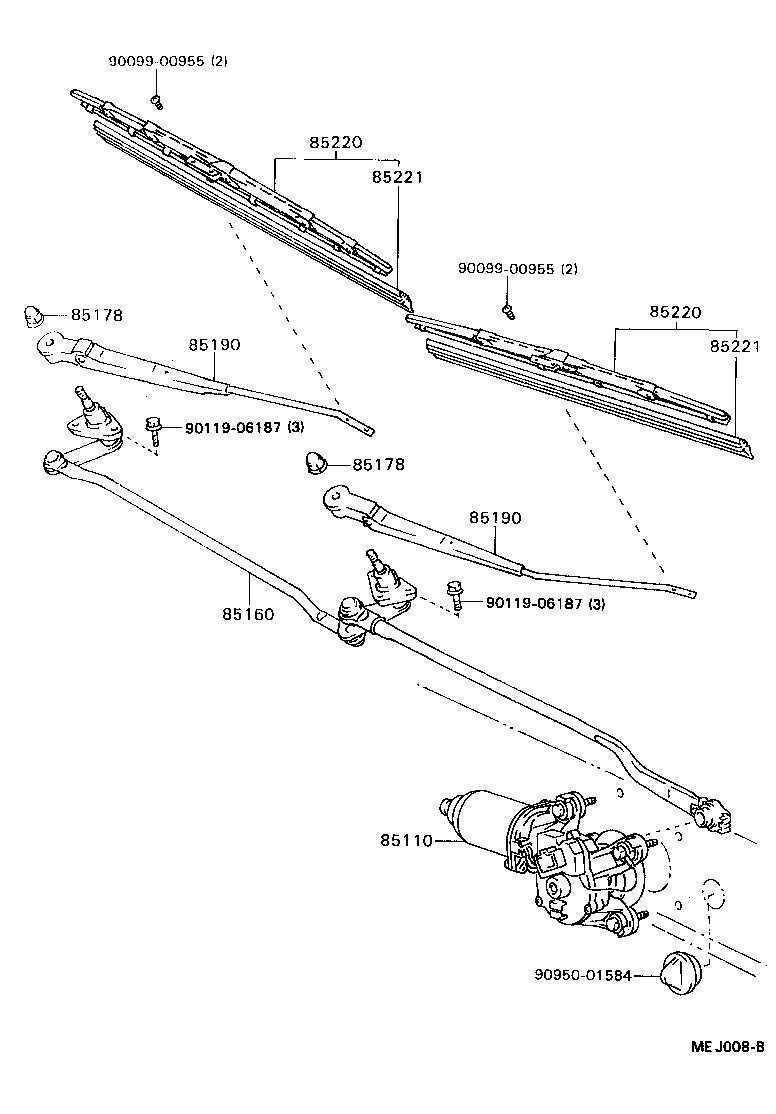

(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06187 | ||||
| 90950-01584 | ||||
