SV20R-UEMDLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )SED

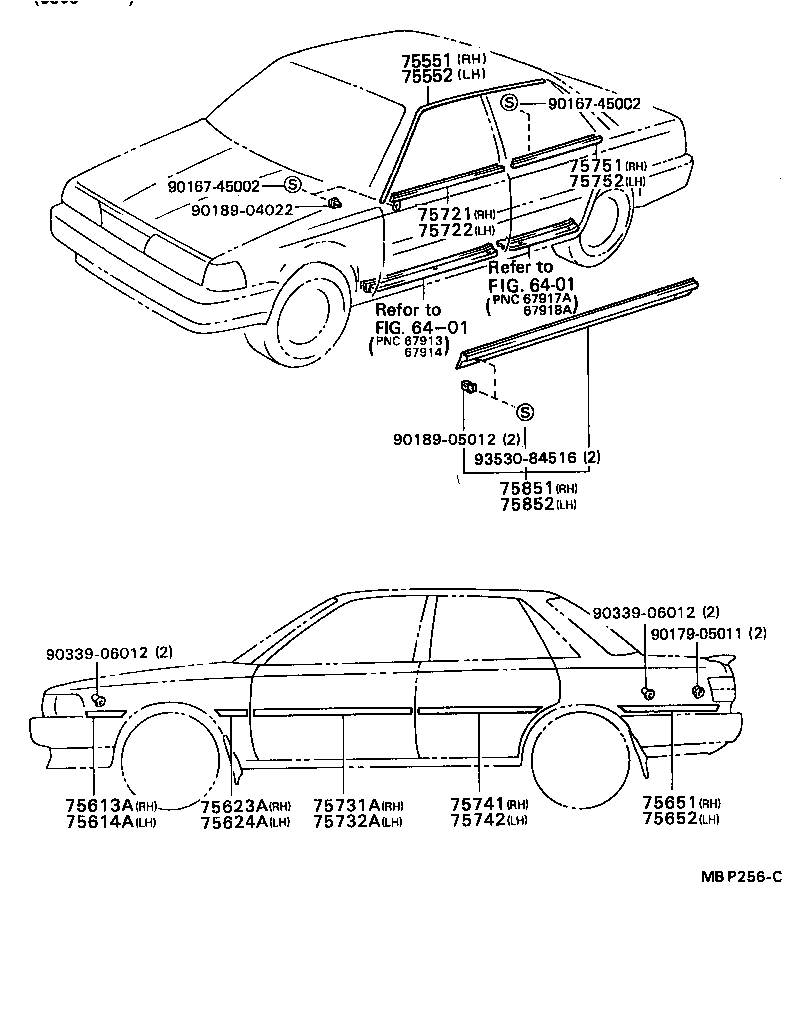

Click highlighted areas on diagram

diagram 75553 75554 75613 75614 75623A 75624A 75651 75652 75721 75722 75731A 75732A 75741 75742 75751 75752 75851 75852 75951 75952 75955 75956 9016745002 9016745002 9017905011 9018904022 9018905012 9033906012 9033906012 9353074516 9354054008 9354054008
Part # Description Qty Price
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-32030

SV2#..SED

 1
75551-32030

SV2#..SED

 1
75551-32030

SV2#,VZV21..SED

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-32030

SV2#..SED

 1
75552-32030

SV2#..SED

 1
75552-32030

SV2#,VZV21..SED

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-32030

SV2#

 1
75710-32030

SV2#,VZV21

 1
75710-32030

SV2#

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-32030

SV2#

 1
75720-32030

SV2#,VZV21

 1
75720-32030

SV2#

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-32020

SV2#,VZV21

 1
75730-32020

SV2#

 1
75730-32020

SV2#

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-32020

SV2#

 1
75740-32020

SV2#

 1
75740-32020

SV2#,VZV21

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-39075

SV2#

 1
75850-39075

SV2#,VZV21

 1
75850-39075

SV2#

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-39075

SV2#

 1
75850-39075

SV2#

 1
75850-39075

SV2#,VZV21

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-3202005

SV2#

BEIGE,DARK BEIGE

 1
67913-3202004

SV2#,VZV21

DARK BLUE,TRIM8#

 1
67913-3202005

SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67913-3202003

SV2#

MEDIUM GRAY,TRIM1#

 1
67913-3202004

SV2#

BLUE,DARK BLUE

 1
67913-3202003

SV2#

GRAY,MEDIUM GRAY

 1
67913-3202004

SV2#

DARK BLUE,DARK BLUE,TRIM8#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-3202005

SV2#

BEIGE,DARK BEIGE

 1
67913-3202003

SV2#

GRAY,MEDIUM GRAY

 1
67913-3202005

SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67913-3202004

SV2#

BLUE,DARK BLUE

 1
67913-3202004

SV2#,VZV21

DARK BLUE,TRIM8#

 1
67913-3202003

SV2#

MEDIUM GRAY,TRIM1#

 1
67913-3202004

SV2#

DARK BLUE,DARK BLUE,TRIM8#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-3202003

SV2#

GRAY,MEDIUM GRAY

 1
67917-3202005

SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67917-3202005

SV2#

BEIGE,DARK BEIGE

 1
67917-3202004

SV2#,VZV21

DARK BLUE,TRIM8#

 1
67917-3202004

SV2#

BLUE,DARK BLUE

 1
67917-3202003

SV2#

MEDIUM GRAY,TRIM1#

 1
67917-3202004

SV2#

DARK BLUE,DARK BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-3202003

SV2#

GRAY,MEDIUM GRAY

 1
67917-3202005

SV2#,VZV21

DARK BEIGE,TRIM4#

 1
67917-3202005

SV2#

BEIGE,DARK BEIGE

 1
67917-3202004

SV2#,VZV21

DARK BLUE,TRIM8#

 1
67917-3202004

SV2#

BLUE,DARK BLUE

 1
67917-3202003

SV2#

MEDIUM GRAY,TRIM1#

 1
67917-3202004

SV2#

DARK BLUE,DARK BLUE,TRIM8#

 1
Common parts
90167-45002
90179-05011
90189-04022
90189-05012
90339-06012
93530-74516
93540-54008

(8808- )

Click highlighted areas on diagram

diagram 6401 6401 75551 75552 75613A 75614A 75623A 75624A 75651 75652 75721 75722 75731A 75732A 75741 75742 75751 75752 75851 75852 9016745002 9016745002 9017905011 9018904022 9018905012 9033906012 9033906012 9353084516
Part # Description Qty Price
Common parts
90167-45002
90179-05011
90189-04022
90189-05012
90339-06012
93530-84516
Linked diagrams
6401
