Toyota Camry SV20 WIRING & CLAMP

SV20R-UEMBLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989

Engine 1SI

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

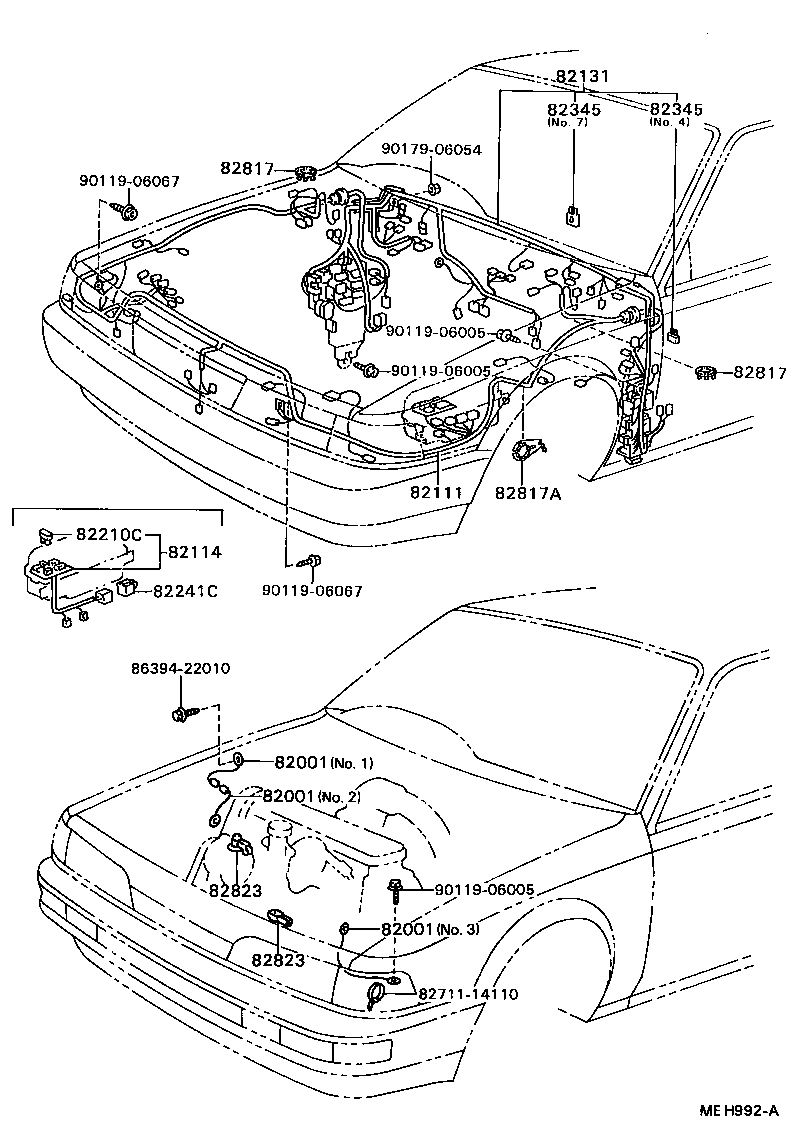

ILLUST NO. 1 OF 5(8611- )SV2#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07136	SV2# NO.3	11/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	11/1986 - 10/1987	1
90980-07206	SV2# NO.1	11/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	08/1988 - 04/1989	1
82001 - CABLE, BOND, NO.1
90980-07136	SV2# NO.3	11/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	11/1986 - 10/1987	1
90980-07206	SV2# NO.1	11/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	08/1988 - 04/1989	1
82001 - CABLE, BOND, NO.1
90980-07136	SV2# NO.3	11/1986 - 10/1987	1
90980-07136	SV2# NO.3	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	04/1987 - 10/1987	1
90980-07287	SV2#,VZV21 NO.1	10/1987 - 08/1988	1
90980-07205	SV20 NO.2	11/1986 - 10/1987	1
90980-07206	SV2# NO.1	11/1986 - 04/1987	1
90980-07205	SV20 NO.2	10/1987 - 04/1989	1
90980-07287	SV2# NO.1	08/1988 - 04/1989	1
82111 - WIRE, ENGINE ROOM MAIN
82111-32130	SV2#	02/1988 - 03/1988	1
82111-32131	SV2#	03/1988 - 04/1989	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32030	SV2#	11/1986 - 04/1989	1
82210C - FUSIBLE LINK
90982-08188	SV2#,VZV21 30A,TERM.:FEMALE,PNK	10/1987 - 08/1988	1
90982-08189	SV20..5F 40A,TERM.:FEMALE,GRN	10/1987 - 04/1989	1
90982-08203	SV2# 80A,TERM.:MALE,BLK,80A,TERMINAL:FEMALE	11/1986 - 10/1987	1
90982-08189	SV2# 40A,TERM.:FEMALE,GRN,40A,TERMINAL:FEMALE	11/1986 - 10/1987	1
90982-08189	SV20..5F;SV21,VZV21 40A,TERM.:FEMALE,GRN	10/1987 - 08/1988	1
90982-08188	SV2# 30A,TERM.:FEMALE,PNK,30A,TERMINAL:FEMALE	08/1988 - 04/1989	1
90982-08253	SV20..5F;SV21,VZV21 80A,TERM.:MALE,BLK	10/1987 - 08/1988	1
90982-08253	SV20..5F 80A,TERM.:MALE,BLK	10/1987 - 04/1989	1
90982-08188	SV2# 30A,TERM.:FEMALE,PNK,30A,TERMINAL:FEMALE	11/1986 - 10/1987	3
82241C - WIRE, RELAY
82241-32020	SV2#,VZV21	10/1987 - 08/1988	1
82241-32020	SV2#	08/1988 - 04/1989	1
82241-32020	SV2#	11/1986 - 10/1987	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32420	SV2#,VZV21	10/1987 - 08/1988	2
82817-32420	SV2#	08/1988 - 04/1989	2
82817-32420	SV2#	11/1986 - 10/1987	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32420	SV2#,VZV21	10/1987 - 08/1988	2
82817-32420	SV2#	08/1988 - 04/1989	2
82817-32420	SV2#	11/1986 - 10/1987	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32310	SV2#,VZV21	10/1987 - 03/1988	1
82817-32310	SV2#	11/1986 - 10/1987	1
82823 - CAP, TERMINAL, NO.1
82823-20030	SV2# ST	10/1987 - 04/1989	1
82823-22050	SV2# ALTERNATOR	10/1987 - 04/1989	1
82823-22050	SV2# ALTERNATOR	11/1986 - 10/1987	1
82823-20030	SV2# STARTER	11/1986 - 10/1987	1
82823 - CAP, TERMINAL, NO.1
82823-20030	SV2# ST	10/1987 - 04/1989	1
82823-22050	SV2# ALTERNATOR	10/1987 - 04/1989	1
82823-22050	SV2# ALTERNATOR	11/1986 - 10/1987	1
82823-20030	SV2# STARTER	11/1986 - 10/1987	1
Common parts
82711-14110
86394-22010
90119-06005
90119-06067
90179-06054

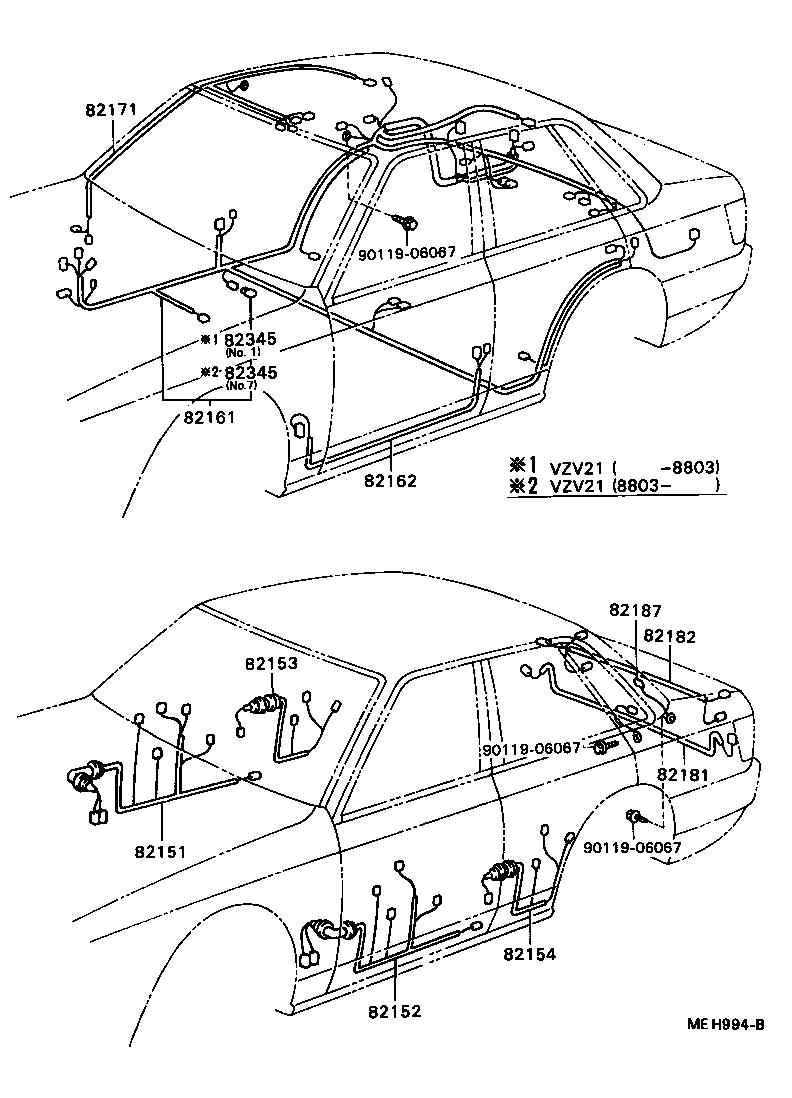

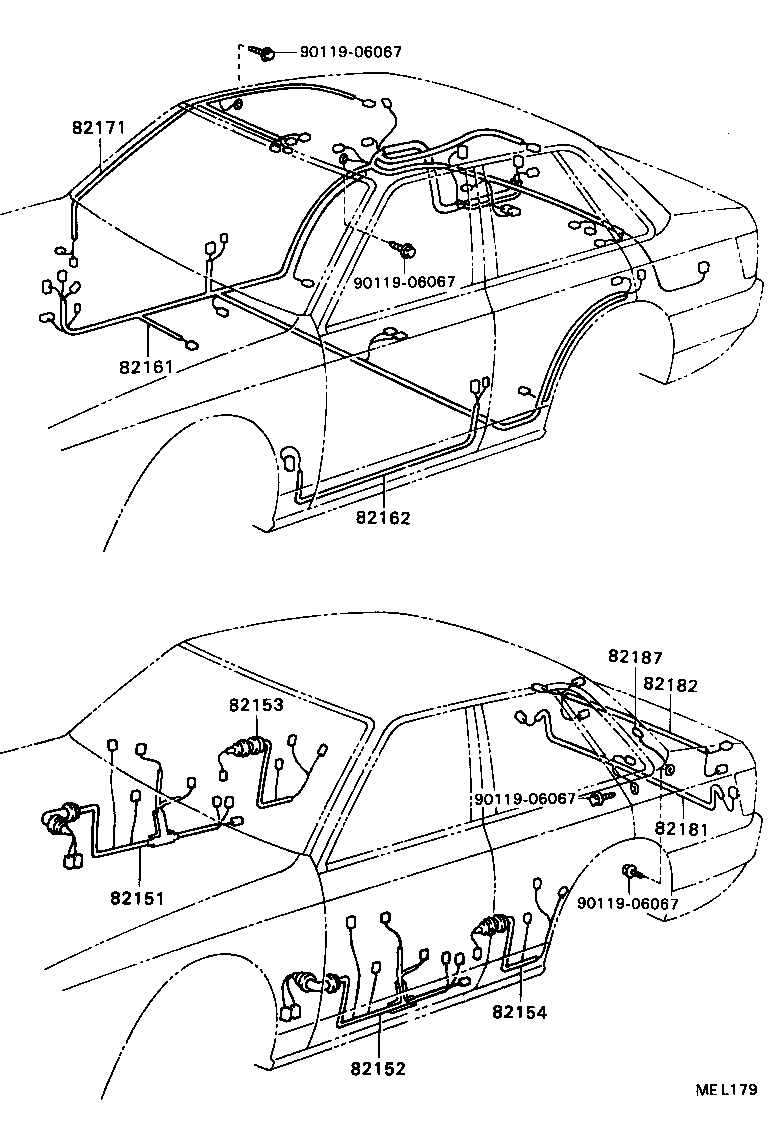

ILLUST NO. 2 OF 5(8611- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
82171 - WIRE, ROOF, NO.1
82171-32040	SV2#..CS,S	11/1986 - 04/1989	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-32030	SV2#,VZV21..SED	10/1987 - 08/1988	1
82181-32030	SV2#..SED	11/1986 - 10/1987	1
82181-32030	SV2#..SED	08/1988 - 04/1989	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-32050	SV2#,VZV21..SED	10/1987 - 08/1988	1
82182-32050	SV2#..SED	08/1988 - 04/1989	1
82182-32050	SV2#..SED	11/1986 - 10/1987	1
82187 - WIRE, REAR WINDOW, NO.2
82187-32020	SV2#..SED	11/1986 - 10/1987	1
82187-32020	SV2#..SED	08/1988 - 04/1989	1
82187-32020	SV2#,VZV21..SED	10/1987 - 08/1988	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
Common parts
90119-06067

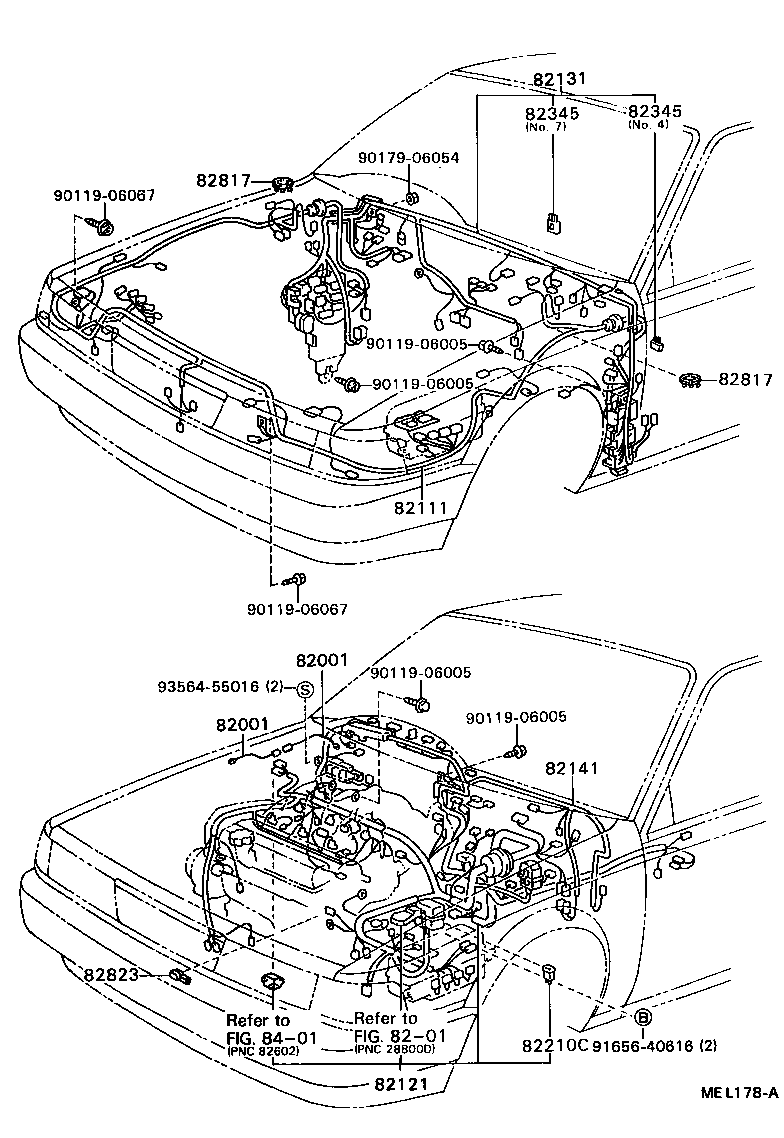

ILLUST NO. 3 OF 5(8611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-14110
82711-14350
82711-20410
82711-20850
82711-20880
82711-22270
82711-24070
82711-32100
82711-32540
82711-32620
82711-32640
82711-32650
82711-32660
82711-32720
82711-32730
82711-32780
82711-32810
82711-32830
82711-3H030
90044-64009
90464-00248

ILLUST NO. 4 OF 5(8611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

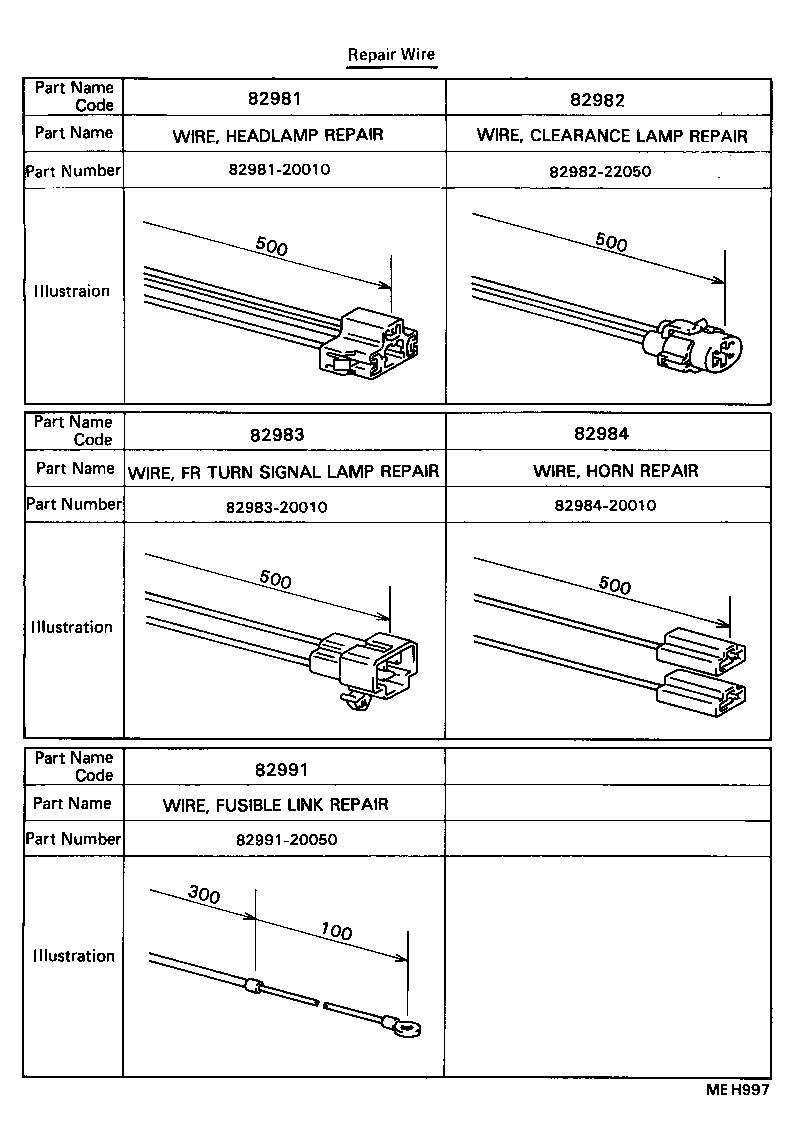

82981 - WIRE, HEADLAMP REPAIR
82981-20010	SV2#,VZV21	10/1987 - 08/1988	1
82981-20010	SV2#	11/1986 - 10/1987	1
82981-20010	SV2#	08/1988 - 04/1989	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-22050	SV2#	08/1988 - 04/1989	1
82982-22050	SV2#	11/1986 - 10/1987	1
82982-22050	SV2#,VZV21	10/1987 - 08/1988	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-20010	SV2#	11/1986 - 10/1987	1
82983-20010	SV2#,VZV21	10/1987 - 08/1988	1
82983-20010	SV2#	08/1988 - 04/1989	1
82984 - WIRE, HORN REPAIR
82984-20010	SV2#,VZV21	10/1987 - 08/1988	1
82984-20010	SV2#	11/1986 - 10/1987	1
82984-20010	SV2#	08/1988 - 04/1989	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20050	SV2#	11/1986 - 10/1987	1
82991-20050	SV2#,VZV21	10/1987 - 08/1988	1
82991-20050	SV2#	08/1988 - 04/1989	1
Common parts
82981-20010
82982-22050
82983-20010
82984-20010
82991-20050

ILLUST NO. 5 OF 5(8611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
82345 - DIODE
82345-20060	SV2#,VZV21 COWL WIRE,NO.4	10/1987 - 08/1988	1
82345-20060	SV2# COWL WIRE,NO.4	08/1988 - 04/1989	1
82345-32020	SV2# COWL WIRE,NO.7	08/1988 - 04/1989	1
82345-32020	SV2#,VZV21 COWL WIRE,NO.7	10/1987 - 08/1988	1
Common parts
82345-12050
82345-20060
82345-32020

ILLUST NO. 4 OF 5(8808- )

Click highlighted areas on diagram

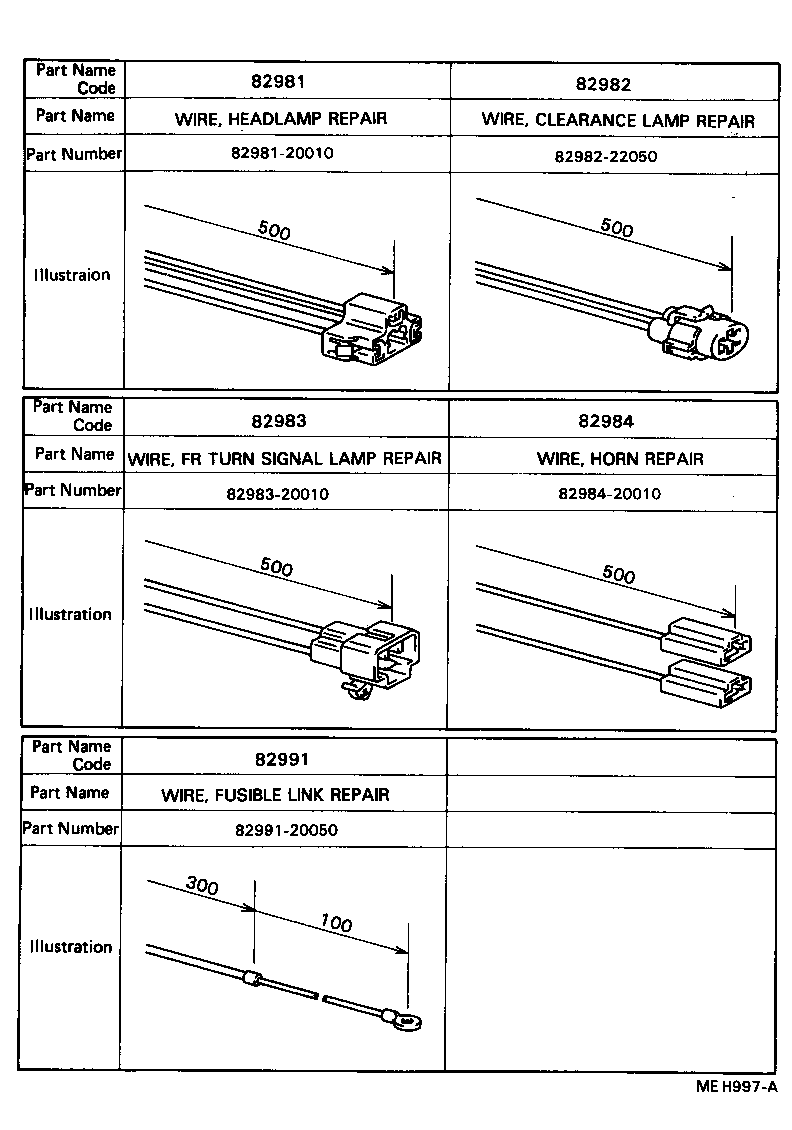

REPAIR WIRE

Part #	Description	Period	Qty	Price
Common parts
82981-20010
82982-22050
82983-20010
82984-20010
82991-20050

ILLUST NO. 1 OF 5(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06005
90119-06067
90179-06054
91656-40616
93564-55016
Linked diagrams
8201
8401

ILLUST NO. 2 OF 5(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06067

ILLUST NO. 3 OF 5(8808- )

Click highlighted areas on diagram

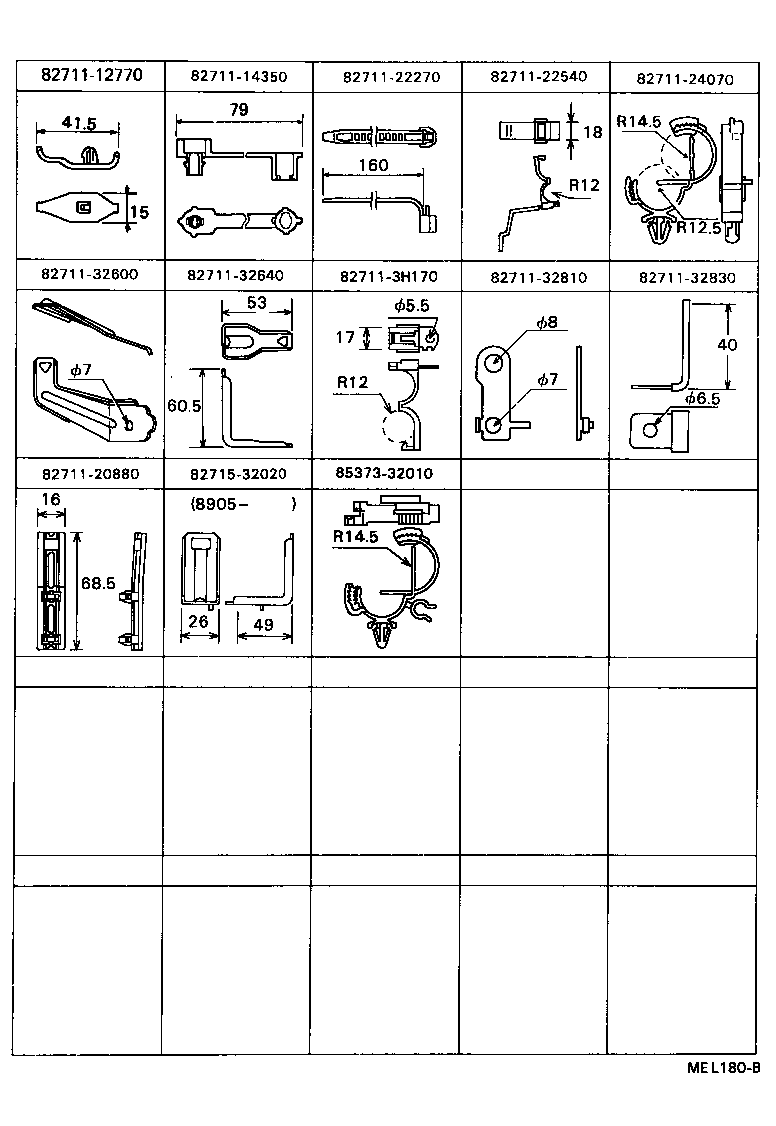

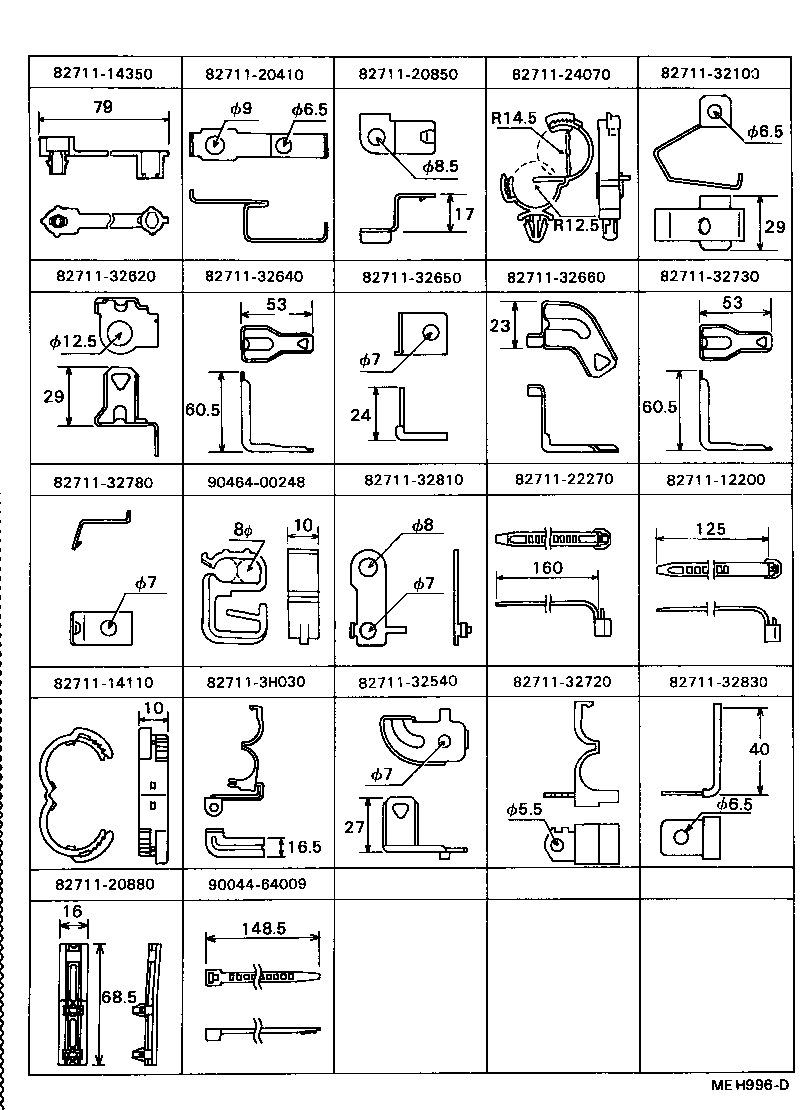

CLAMP & GROMMET

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-14350
82711-20880
82711-22270
82711-22540
82711-24070
82711-32600
82711-32640
82711-32810
82711-32830
82711-3H170
82715-32020
85373-32010

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

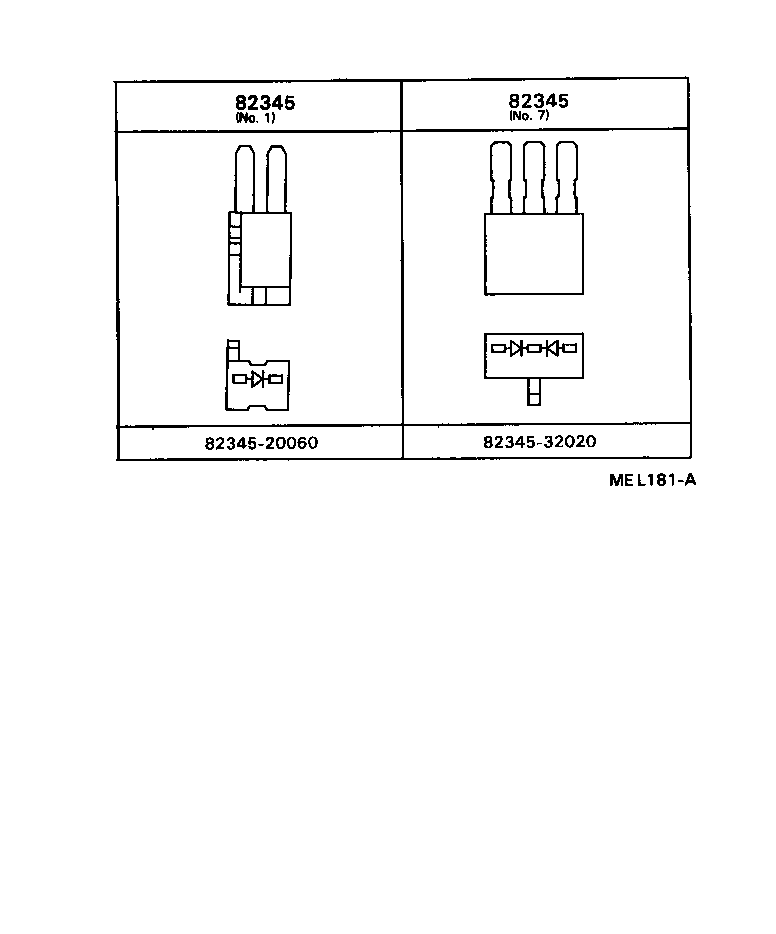

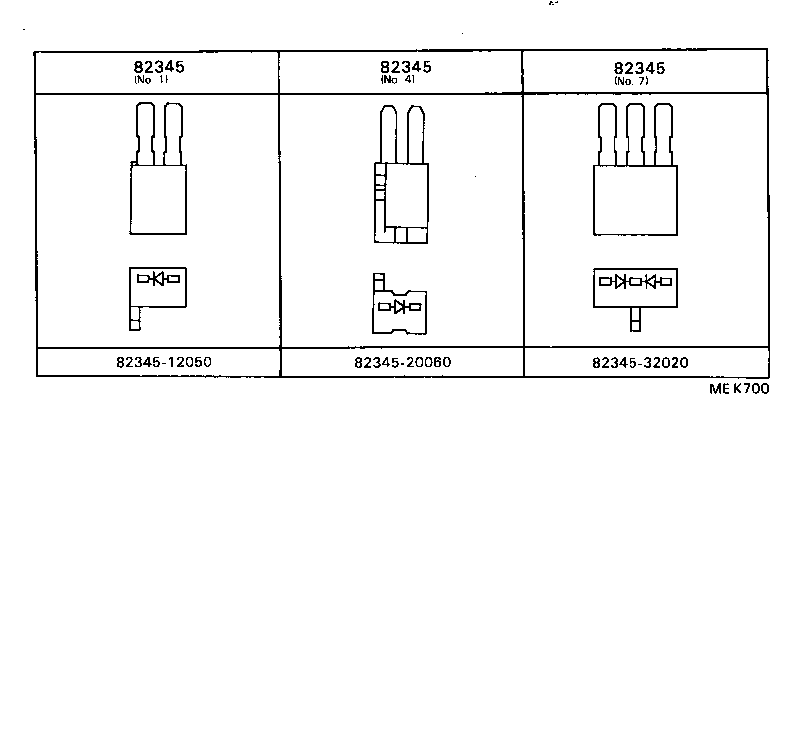

DIODE

Part #	Description	Period	Qty	Price
Common parts
82345-20060
82345-32020
