SV20R-UEMBLQ (1986)

Toyota Camry

Production Nov 1986 - Apr 1989
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8611- )5F

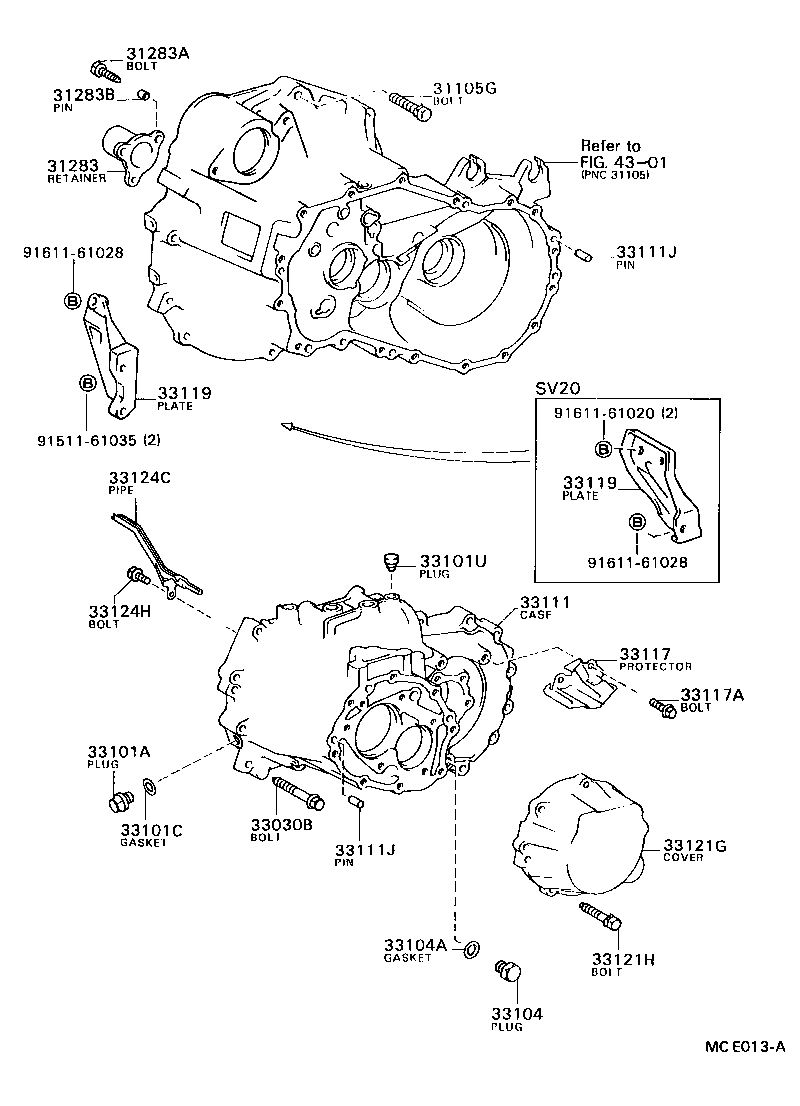

Click highlighted areas on diagram

diagram 31105G 31283 31283A 31283B 33030B 33101A 33101C 33101U 33104 33104A 33111 33111J 33111J 33117 33117A 33119 33119 33121G 33121H 33124C 33124H 4301 9151161035 9161161020 9161161028 9161161028
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

SV2#..5F

*10-1.25PX22-22,*10-1.25PX22-22

 2
90105-10077

SV2#..5F

*10-1.25PX43-26,*10-1.25PX43-26

 1
90105-08040

SV20..5F

*8-1.25PX18-15

 1
91651-41022

SV20..5F

*10-1.25PX22-22

 2
90119-12168

SV2#..5F

*12-1.25PX55-30,*12-1.25PX55-30

 3
90119-12168

SV20..5F

*12-1.25PX55-30

 3
90105-08040

SV2#..5F

*8-1.25PX18-15,*8-1.25PX18-15

 1
90105-10077

SV20..5F

*10-1.25PX43-26

 1
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010

SV2#..5F

 1
31283-32010

SV20..5F

 1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023

SV20..5F

 3
90105-06023

SV2#..5F

 3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002

SV2#..5F

 2
90253-08002

SV20..5F

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042

SV2#..5F

*8-1.25PX45-27.5

 17
90105-08042

SV20..5F

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18002

SV2#..5F

 1
90341-18002

SV20..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

SV20..5F

 1
90430-18008

SV2#..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080

SV2#..5F

 1
90930-03080

SV20..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

SV2#..5F

 1
90341-18006

SV20..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

SV20..5F

 1
90430-18008

SV2#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-32014

SV20..5F

 1
33111-32014

SV2#..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SV2#..5F

L=23,OD=8

 6
90250-08054

SV20..5F

L=23,OD=8

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

SV2#..5F

L=23,OD=8

 6
90250-08054

SV20..5F

L=23,OD=8

 6
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32011

SV2#..5F

 1
33117-32011

SV20..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

SV2#..5F

 2
90105-08040

SV20..5F

 2
33119 - PLATE, STIFFENER, LH(MTM)
33119-32010

SV20..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-32010

SV20..5F

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33102-32011

SV2#..5F

 1
33102-32011

SV20..5F

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08089

SV2#..5F

 8
90105-08089

SV20..5F

 8
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32011

SV20..5F

 1
33124-32011

SV2#..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618

SV20..5F

 1
91611-60618

SV2#..5F

 1
Common parts
91511-61035
91611-61020
91611-61028
Linked diagrams
4301
