SV11L-UHPEEC (1983)
Toyota Camry
(8210-8406)LHD

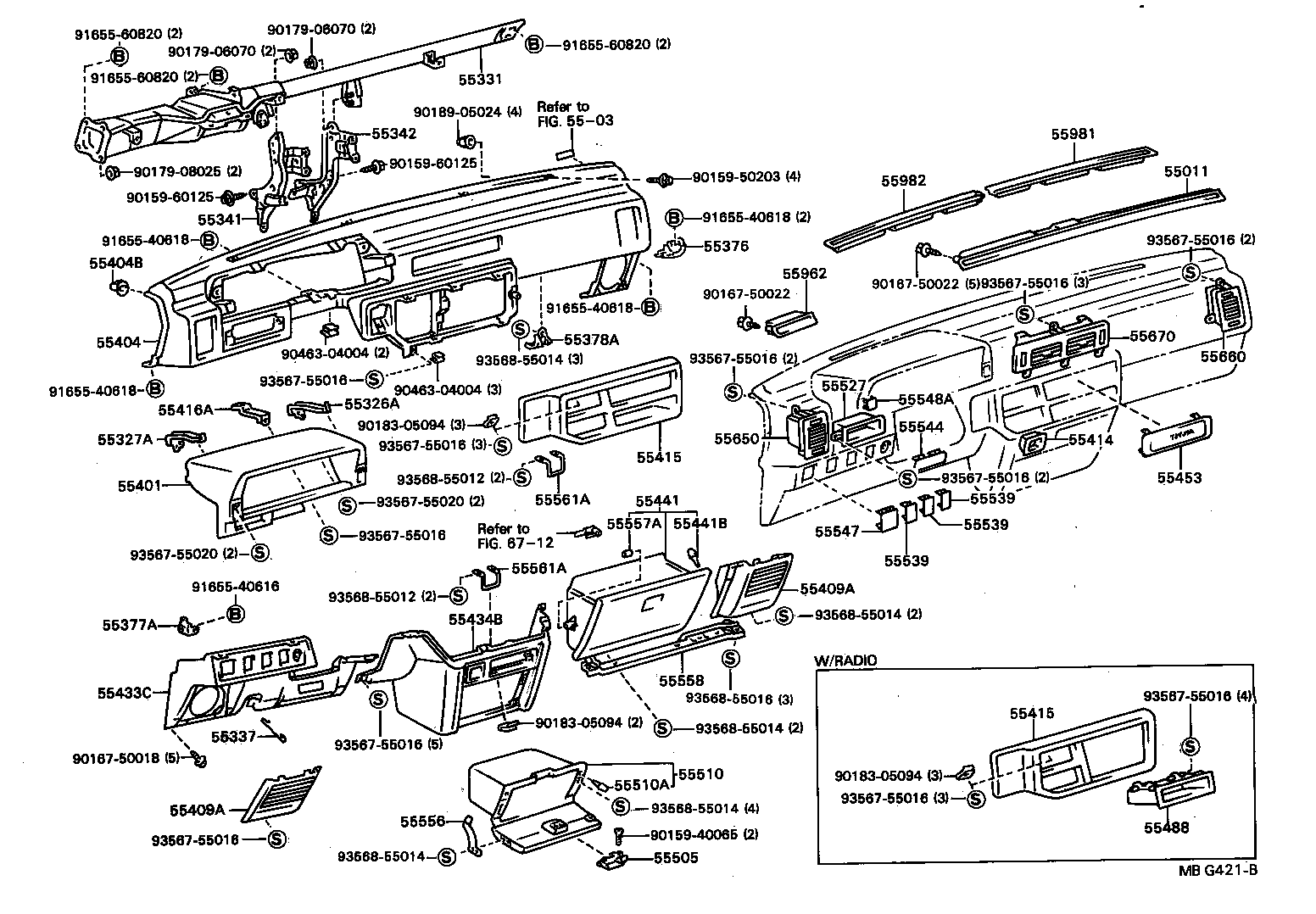

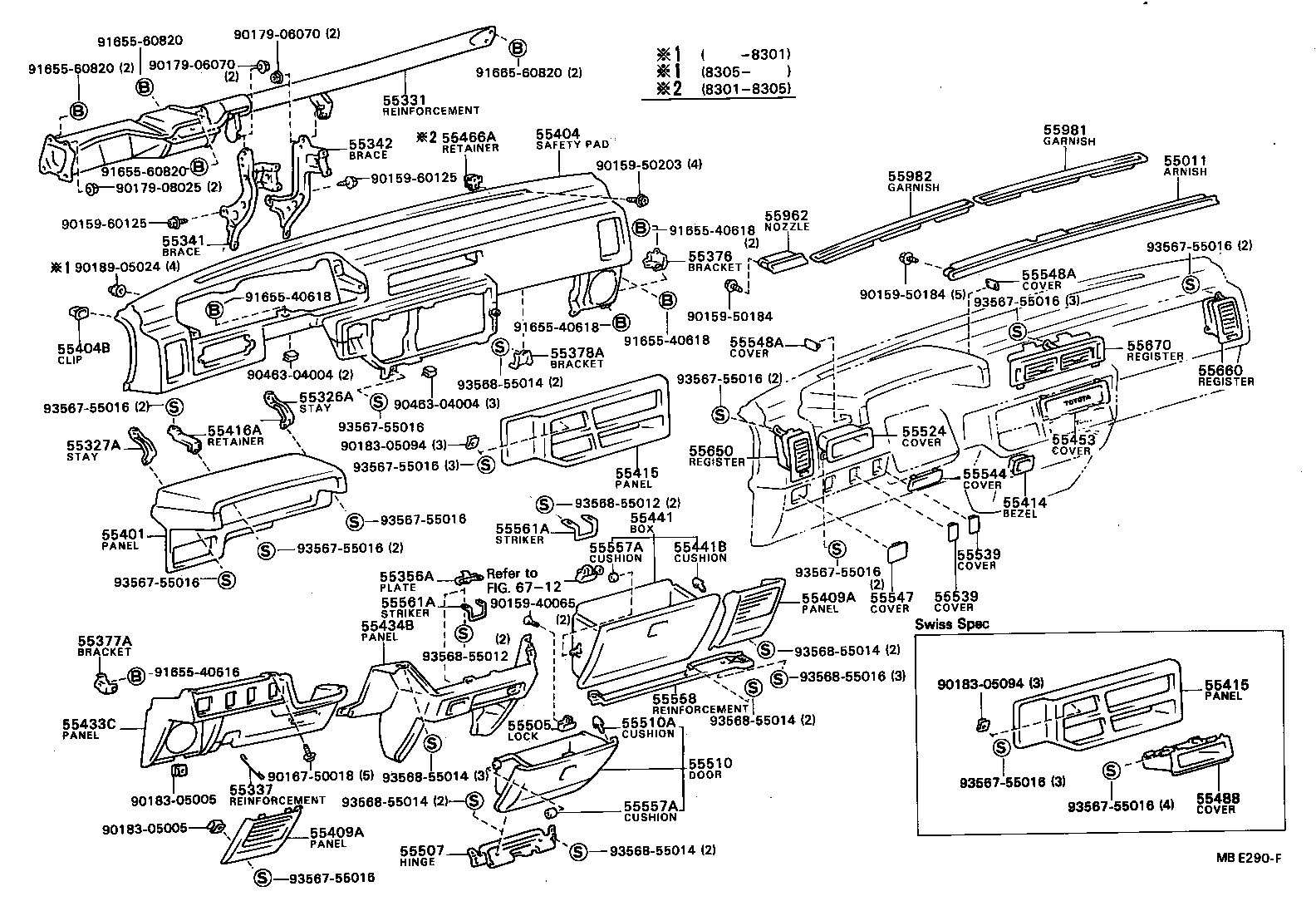

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-3204001 |
CV1#,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55011-3202006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55011-3202001 |
CV10,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-32010 |
CV10,SV1#..LHD |
1 | ||
| 55326-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55327-32010 |
CV10,SV1#..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-32021 |
CV10,SV1#..LHD |
1 | ||
| 55330-32040 |
CV1#,SV1#..LHD |
1 | ||
| 55330-32020 |
CV10,SV1#..LHD |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-32010 |
CV1#,SV1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32050 |
CV1#,SV1#..LHD |
1 | ||
| 55306-32020 |
CV10,SV1#..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-32010 |
CV10,SV1# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-32030 |
CV1#,SV1# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-3202003 |
SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55404-3202016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404-3202014 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3202006 |
SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404-3202013 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3202004 |
SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55401-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-3202003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55401-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-3202016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90467-14002 |
CV1#,SV1# |
2 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-3202003 |
CV10,SV1#..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202006 |
CV10,SV1#..LHD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202003 |
CV10,SV1#..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202004 |
CV1#,SV1#..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202013 |
CV1#,SV1#..LHD LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55473-3202005 |
CV1#,SV1#..LHD RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202004 |
CV1#,SV1#..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202005 |
CV1#,SV1#..LHD LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202006 |
CV10,SV1#..LHD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202013 |
CV1#,SV1#..LHD RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-3202003 |
CV10,SV1#..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202006 |
CV10,SV1#..LHD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202003 |
CV10,SV1#..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202004 |
CV1#,SV1#..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202013 |
CV1#,SV1#..LHD LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55473-3202005 |
CV1#,SV1#..LHD RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202004 |
CV1#,SV1#..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202005 |
CV1#,SV1#..LHD LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202006 |
CV10,SV1#..LHD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202013 |
CV1#,SV1#..LHD RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55477-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55477-32010 |
CV10,SV1# |
1 | ||
| 55477-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-3204006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204001 |
SV1#..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55405-3204016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3202003 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3204004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3202016 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3202004 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC, BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206003 |
CV1#,SV1#..LHD *IPM,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206005 |
CV1#,SV1#..LHD *IPM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-3206004 |
CV1#,SV1#..LHD *IPM,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-3204006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204001 |
SV1#..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55405-3204016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3202003 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3204004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3202016 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3202004 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC, BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206003 |
CV1#,SV1#..LHD *IPM,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206005 |
CV1#,SV1#..LHD *IPM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-3206004 |
CV1#,SV1#..LHD *IPM,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-32020 |
CV1#,SV1#..LHD |
2 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55433-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55433-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3202005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55433-3202004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3202003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3202003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55434-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55434-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55434-3202006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55434-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-3201003 |
CV10,SV1#..EUR GRAY,GRAY,TRIM1# |
1 | ||
| 55440-3201006 |
CV10,SV1#..EUR BROWN,BROWN,TRIM4# |
1 | ||
| 55440-3201005 |
CV1#,SV1#..EUR BEIGE,BEIGE,TRIM4# |
1 | ||
| 55440-3201004 |
CV1#,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55440-3201013 |
CV1#,SV1#..EUR SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 90541-03015 |
CV1#,SV1# |
3 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
CV1#,SV1#..EUR |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-14050 |
CV1#,SV1#..EUR W/RADIO |
1 | ||
| 55521-14050 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55560-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55560-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55560-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55560-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55560-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-32010 |
CV10,SV1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3201003 |
CV10,SV1#..EUR GRAY,GRAY,TRIM1# |
1 | ||
| 55550-3201006 |
CV10,SV1#..EUR BROWN,BROWN,TRIM4# |
1 | ||
| 55550-3203003 |
CV1#,SV1#..EUR SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55550-3203005 |
CV1#,SV1#..EUR BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3203004 |
CV1#,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3201004 |
CV10,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV10,SV1# |
3 | ||
| 90541-03015 |
CV1#,SV1# |
2 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-32030 |
CV10,SV1#..LHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV1#,SV1# BLACK |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV1#,SV1# BLACK |
3 | ||
| 55544 - COVER, INSTRUMENT PANEL REGISTER HOLE | ||||
| 55544-3201005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55544-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55544-3201004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55544-3201013 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55544-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-32010 |
CV10,SV1# |
1 | ||
| 74267-2401001 |
CV1#,SV1# BLACK |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55548-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55548-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV10,SV1# |
4 | ||
| 55557-16010 |
CV1#,SV1# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV10,SV1# |
4 | ||
| 55557-16010 |
CV1#,SV1# |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV10,SV1# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV10,SV1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55650-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55660-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55650-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203203 |
CV11,SV1#..LHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55650-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55660-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55660-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203203 |
CV11,SV1#..LHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55660-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55670-3202006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55670-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3202003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55670-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55670-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203203 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-3202006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55961-3204001 |
CV1#,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55961-3202001 |
CV10,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55981-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55981-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55981-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55982-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55982-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55982-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40065 | ||||
| 90159-50184 | ||||
| 90159-50203 | ||||
| 90159-60125 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90463-04004 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
| 91665-60820 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
(8406- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-3204001 |
CV1#,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55011-3202006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55011-3202001 |
CV10,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-32010 |
CV10,SV1#..LHD |
1 | ||
| 55326-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55327-32010 |
CV10,SV1#..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-32021 |
CV10,SV1#..LHD |
1 | ||
| 55330-32040 |
CV1#,SV1#..LHD |
1 | ||
| 55330-32020 |
CV10,SV1#..LHD |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-32010 |
CV1#,SV1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32050 |
CV1#,SV1#..LHD |
1 | ||
| 55306-32020 |
CV10,SV1#..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-32030 |
CV1#,SV1# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-3202003 |
SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55404-3202016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404-3202014 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3202006 |
SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404-3202013 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55404-3202004 |
SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55401-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-3202003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55401-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-3202016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90467-14002 |
CV1#,SV1# |
2 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-3202003 |
CV10,SV1#..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202006 |
CV10,SV1#..LHD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202003 |
CV10,SV1#..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202004 |
CV1#,SV1#..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202013 |
CV1#,SV1#..LHD LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55473-3202005 |
CV1#,SV1#..LHD RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202004 |
CV1#,SV1#..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202005 |
CV1#,SV1#..LHD LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202006 |
CV10,SV1#..LHD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202013 |
CV1#,SV1#..LHD RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-3202003 |
CV10,SV1#..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202006 |
CV10,SV1#..LHD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202003 |
CV10,SV1#..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-3202004 |
CV1#,SV1#..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202013 |
CV1#,SV1#..LHD LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55473-3202005 |
CV1#,SV1#..LHD RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202004 |
CV1#,SV1#..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-3202005 |
CV1#,SV1#..LHD LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-3202006 |
CV10,SV1#..LHD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-3202013 |
CV1#,SV1#..LHD RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55477-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55477-32010 |
CV10,SV1# |
1 | ||
| 55477-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-3204006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204001 |
SV1#..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55405-3204016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3202003 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3204004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3202016 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3202004 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC, BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206003 |
CV1#,SV1#..LHD *IPM,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206005 |
CV1#,SV1#..LHD *IPM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-3206004 |
CV1#,SV1#..LHD *IPM,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-3204006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204001 |
SV1#..LHD BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55405-3204016 |
CV10,SV1#..LHD DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3204003 |
CV10,SV1#..LHD DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3202003 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55405-3204004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3202016 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55405-3202004 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC, BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206003 |
CV1#,SV1#..LHD *IPM,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55405-3206005 |
CV1#,SV1#..LHD *IPM,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-3206004 |
CV1#,SV1#..LHD *IPM,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-3208005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-32020 |
CV1#,SV1#..LHD |
2 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55433-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55433-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3202005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55433-3202004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55433-3202003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3202003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55434-3204005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55434-3204003 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55434-3202006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55434-3204004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-3201003 |
CV10,SV1#..EUR GRAY,GRAY,TRIM1# |
1 | ||
| 55440-3201006 |
CV10,SV1#..EUR BROWN,BROWN,TRIM4# |
1 | ||
| 55440-3201005 |
CV1#,SV1#..EUR BEIGE,BEIGE,TRIM4# |
1 | ||
| 55440-3201004 |
CV1#,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55440-3201013 |
CV1#,SV1#..EUR SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 90541-03015 |
CV1#,SV1# |
3 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
CV1#,SV1#..EUR |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-14050 |
CV1#,SV1#..EUR W/RADIO |
1 | ||
| 55521-14050 |
SV11..SDZ;CV10..LHD..GL SWISS SPEC |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55560-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 55560-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 55560-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55560-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55560-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3201003 |
CV10,SV1#..EUR GRAY,GRAY,TRIM1# |
1 | ||
| 55550-3201006 |
CV10,SV1#..EUR BROWN,BROWN,TRIM4# |
1 | ||
| 55550-3203003 |
CV1#,SV1#..EUR SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55550-3203005 |
CV1#,SV1#..EUR BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3203004 |
CV1#,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3201004 |
CV10,SV1#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV10,SV1# |
3 | ||
| 90541-03015 |
CV1#,SV1# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV1#,SV1# BLACK |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV1#,SV1# BLACK |
3 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201001 |
CV1#,SV1# BLACK |
3 | ||
| 55544 - COVER, INSTRUMENT PANEL REGISTER HOLE | ||||
| 55544-3201005 |
CV1#,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55544-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55544-3201004 |
CV1#,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55544-3201013 |
CV1#,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55544-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-32010 |
CV10,SV1# |
1 | ||
| 74267-2401001 |
CV1#,SV1# BLACK |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 55548-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55548-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-20030 |
CV1#,SV1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV10,SV1# |
4 | ||
| 55557-16010 |
CV1#,SV1# |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-32020 |
CV1#,SV1#..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV10,SV1# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
CV10,SV1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55650-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55660-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55650-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55650-3203203 |
CV11,SV1#..LHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55650-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-3201004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3201003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55660-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3201006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55660-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55660-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3203203 |
CV11,SV1#..LHD SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 55660-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55660-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-3203003 |
CV10,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55670-3202006 |
CV10,SV1#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 55670-3203004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203005 |
CV10,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3202003 |
CV10,SV1#..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55670-3202004 |
CV10,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203204 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203205 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3203103 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55670-3203105 |
CV11,SV1#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670-3203104 |
CV11,SV1#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55670-3203203 |
CV11,SV1#..LHD SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-3202006 |
SV1#..LHD DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 55961-3204001 |
CV1#,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55961-3202001 |
CV10,SV1#..LHD BLACK,BLACK,TRIM1#,4#,8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55981-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55981-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55981-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3201003 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 55982-3202003 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55982-3202004 |
CV1#,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-3202005 |
CV1#,SV1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55982-3201006 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40065 | ||||
| 90159-50203 | ||||
| 90159-60125 | ||||
| 90167-50018 | ||||
| 90167-50022 | ||||
| 90179-06070 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90463-04004 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 5503 | ||||
| 6712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
