MCV30L-JEAGKR (2004)
Toyota Camry

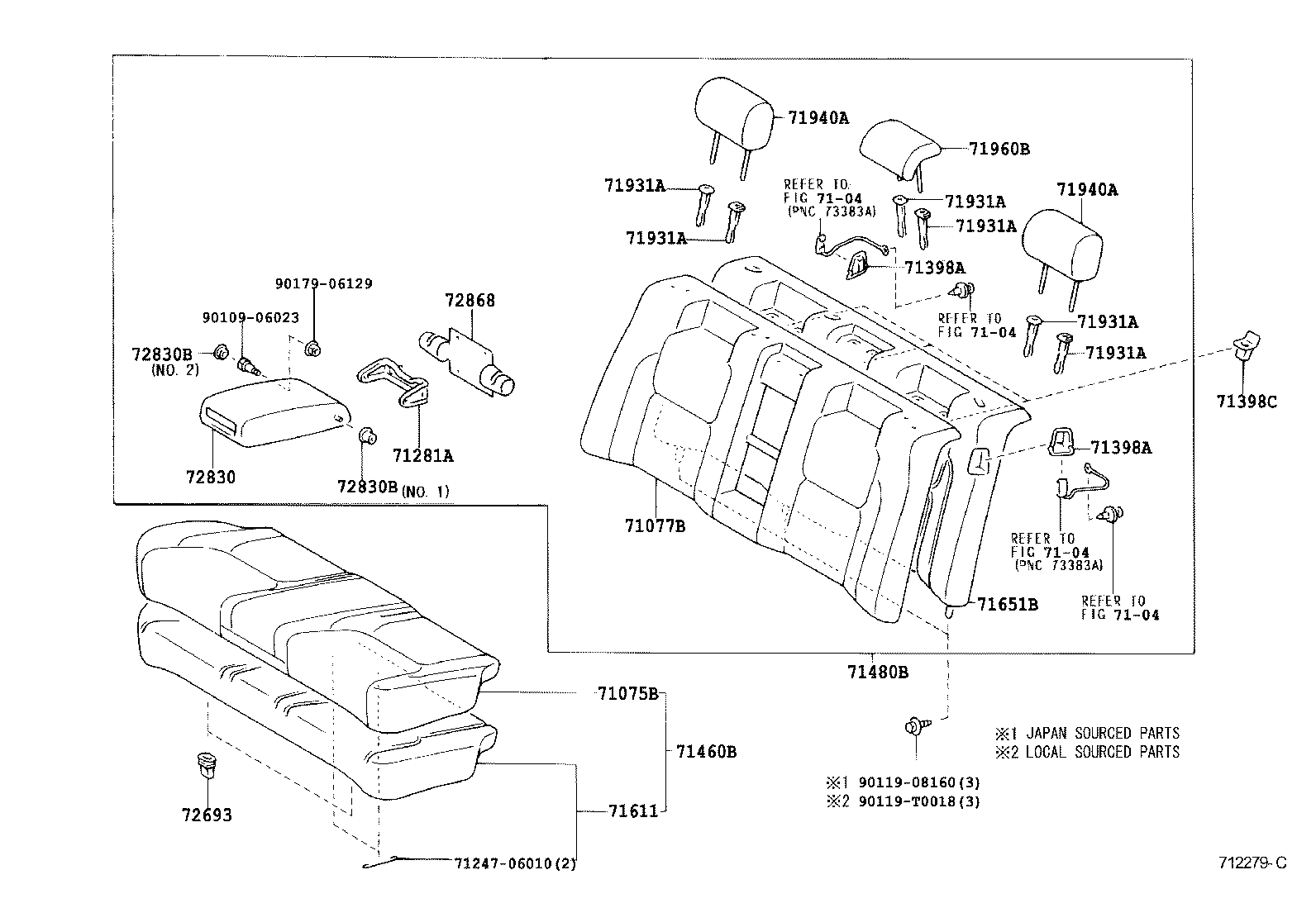

(0203-0405)4FC,5F ; (0405-0407)ACV3#..MA,PHL,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-06200B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71075-06270C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-06200B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71940-06100B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71940-06240C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-06080B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72830-06170C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30120B2 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 71247-06010 | ||||
| 90109-06023 | ||||
| 90119-08160 | ||||
| 90119-T0018 | ||||
| 90179-06129 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0203-0405)4FC,5F ; (0405-0407)MCV30..VN

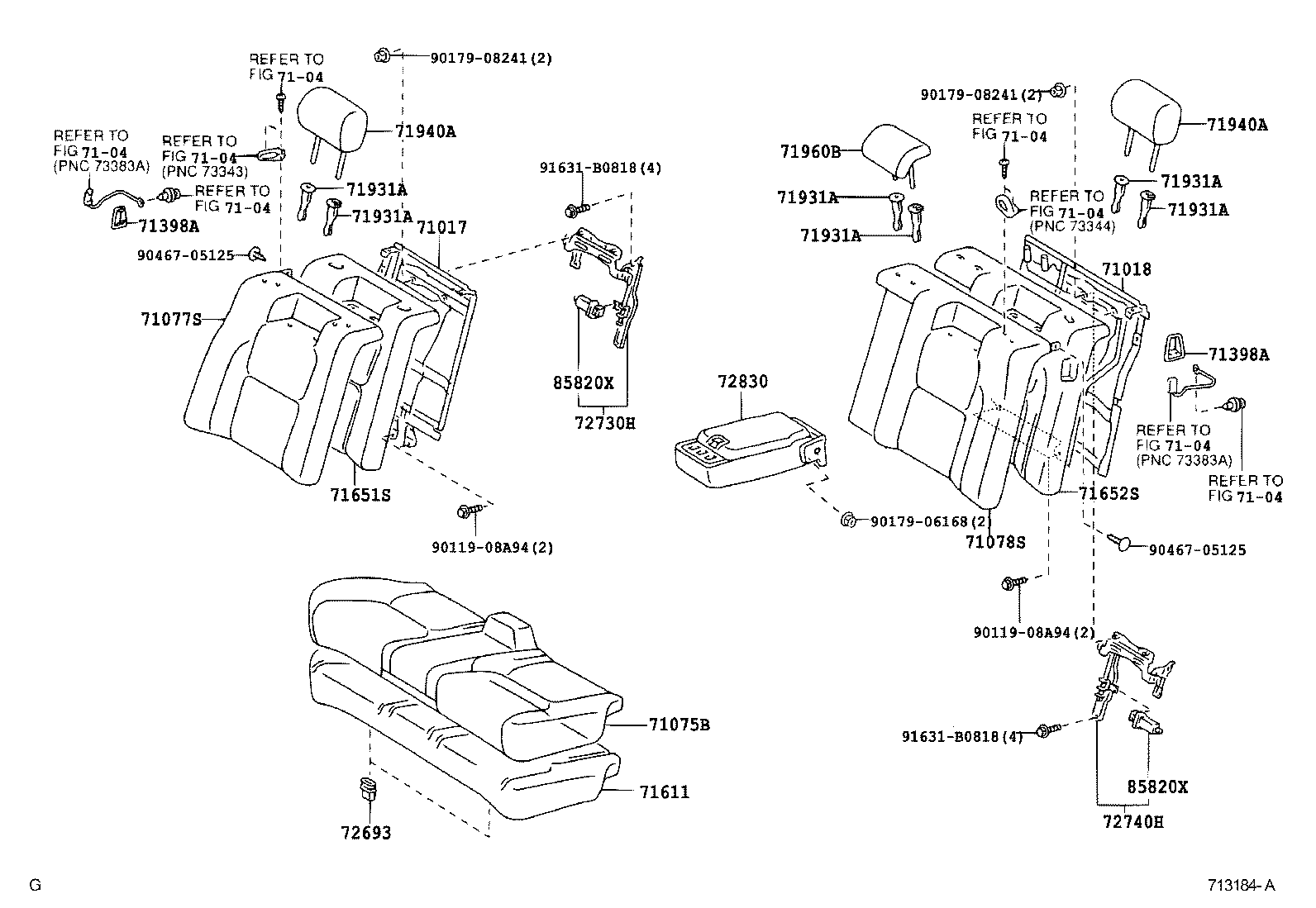

REAR POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-06060 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-06040 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-06200B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71075-06270C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-06310C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71077-06210B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71077-06310C0 |
MCV30..30V..5FC BLACK,TRIM21 |
1 | ||
| 71077-06310A0 |
MCV30..30V..5FC IVORY,TRIM01 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-06150B2 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71078-06160C0 |
MCV30..30V..5FC BLACK,TRIM2# |
1 | ||
| 71078-06160C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71078-06160A0 |
MCV30..30V..5FC IVORY,TRIM0# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-06200B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-06240B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-06160B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-06060 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-06050 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71940-06100B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71940-06240C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 72730H - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-33010 |
MCV30..30V..TAIW |
1 | ||
| 72730-33010 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 72730-33010 |
MCV30..30V..TAIW..5FC |
1 | ||
| 72740H - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-30030 |
MCV30..30V..TAIW |
1 | ||
| 72740-30030 |
MCV30..30V..TAIW..5FC |
1 | ||
| 72740-30030 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 72803D - PANEL SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72803-06020B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||

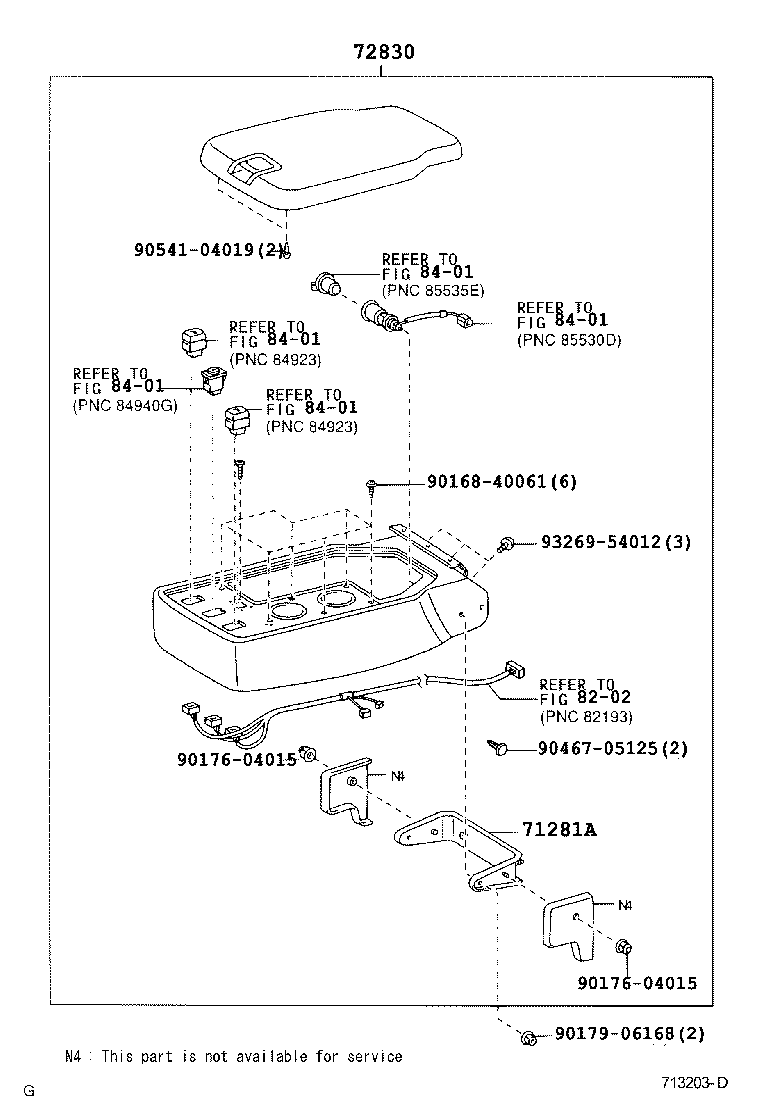

| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-06080B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72830-06170C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 72833C - PANEL, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72833-06020B0 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30120B2 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-30100B2 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
MCV30..30V..TAIW |
2 | ||
| 85820-30730 |
ACV30..24V;MCV30..30V..5FC |
2 | ||
| 85820-30730 |
MCV30..30V..TAIW..5FC |
2 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
MCV30..30V..TAIW |
2 | ||
| 85820-30730 |
ACV30..24V;MCV30..30V..5FC |
2 | ||
| 85820-30730 |
MCV30..30V..TAIW..5FC |
2 | ||
| Common parts | ||||
| 71247-06010 | ||||
| 90119-08A94 | ||||
| 90168-40061 | ||||
| 90168-40108 | ||||
| 90176-04015 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 90467-05125 | ||||
| 90541-04019 | ||||
| 91631-B0818 | ||||
| 93269-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||

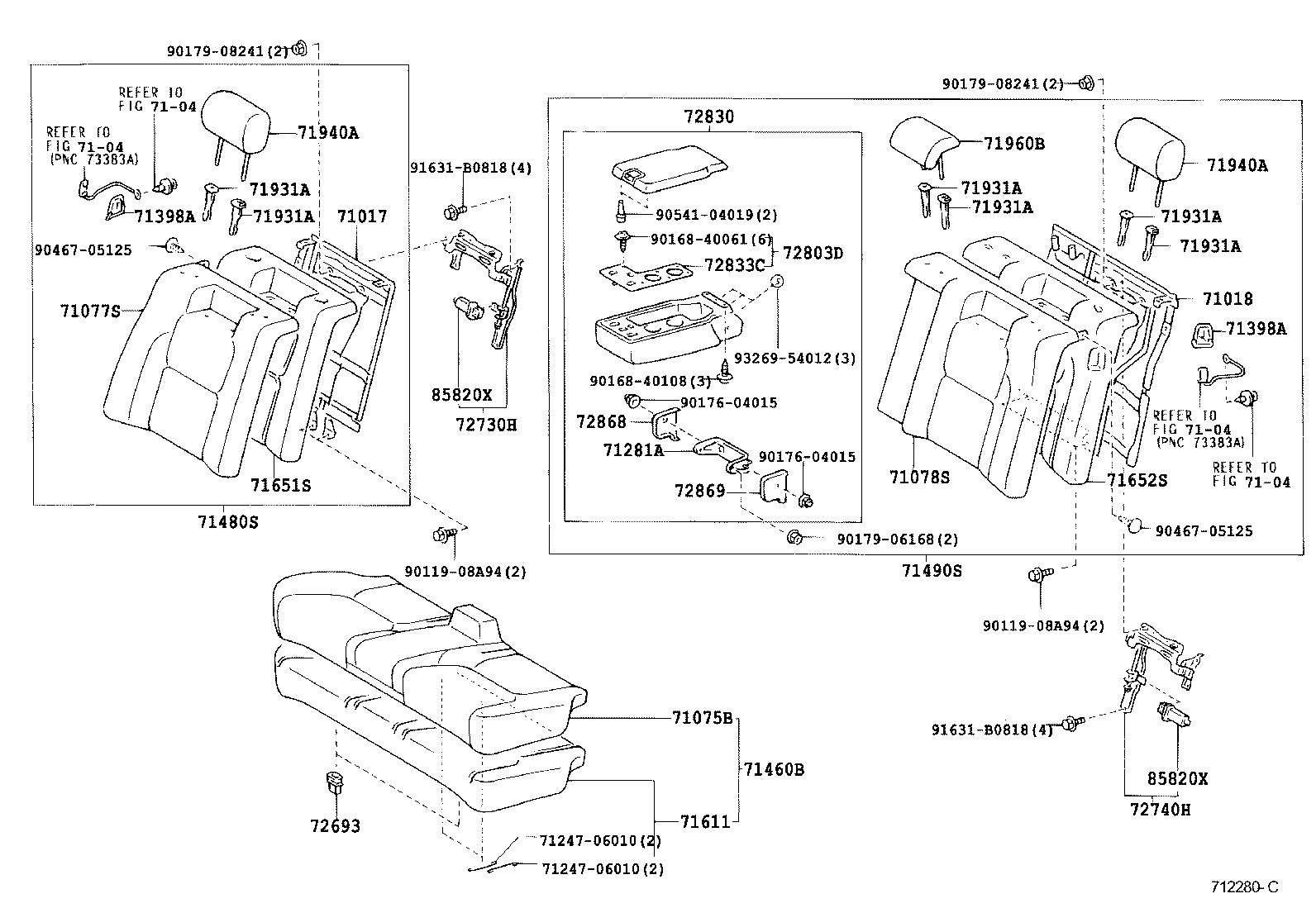

ILLUST NO. 1 OF 2(0405- )30V..5FC ; (0405- )24V..PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-06060 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-06040 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-06200B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71075-06270C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-06310C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71077-06210B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71077-06310C0 |
MCV30..30V..5FC BLACK,TRIM21 |
1 | ||
| 71077-06310A0 |
MCV30..30V..5FC IVORY,TRIM01 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-06150B2 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71078-06160C0 |
MCV30..30V..5FC BLACK,TRIM2# |
1 | ||
| 71078-06160C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 71078-06160A0 |
MCV30..30V..5FC IVORY,TRIM0# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-06010 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-06060 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-06050 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-20130B2 |
ACV31,MCV30..TAIW W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-20130C0 |
ACV31,MCV30..TAIW W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-12040S5 |
ACV31,MCV30..TAIW W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-12040C0 |
ACV31,MCV30..TAIW W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-06230C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
2 | ||
| 71940-06150B1 |
MCV30..30V..TAIW STONE,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71940-06100B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 71940-06240C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 72730H - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-33010 |
MCV30..30V..TAIW |
1 | ||
| 72730-33010 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 72730-33010 |
MCV30..30V..TAIW..5FC |
1 | ||
| 72740H - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-30030 |
MCV30..30V..TAIW |
1 | ||
| 72740-30030 |
MCV30..30V..TAIW..5FC |
1 | ||
| 72740-30030 |
ACV30..24V;MCV30..30V..5FC |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-06080B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72830-06170C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
MCV30..30V..TAIW |
2 | ||
| 85820-30730 |
ACV30..24V;MCV30..30V..5FC |
2 | ||
| 85820-30730 |
MCV30..30V..TAIW..5FC |
2 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
MCV30..30V..TAIW |
2 | ||
| 85820-30730 |
ACV30..24V;MCV30..30V..5FC |
2 | ||
| 85820-30730 |
MCV30..30V..TAIW..5FC |
2 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 90467-05125 | ||||
| 91631-B0818 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0405- )30V..5FC ; (0405- )24V..PHL
ARMREST(PNC=72830)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-06080B1 |
MCV30..30V..TAIW STONE,TRIM1# |
1 | ||
| 72830-06170C0 |
MCV30..30V..TAIW BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40061 | ||||
| 90176-04015 | ||||
| 90179-06168 | ||||
| 90467-05125 | ||||
| 90541-04019 | ||||
| 93269-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
