MCV30L-JEAGKR (2004)
Toyota Camry
ILLUST NO. 3 OF 3(0203- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-33150 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 88625-33150 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 88625-47021 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW |
1 | ||

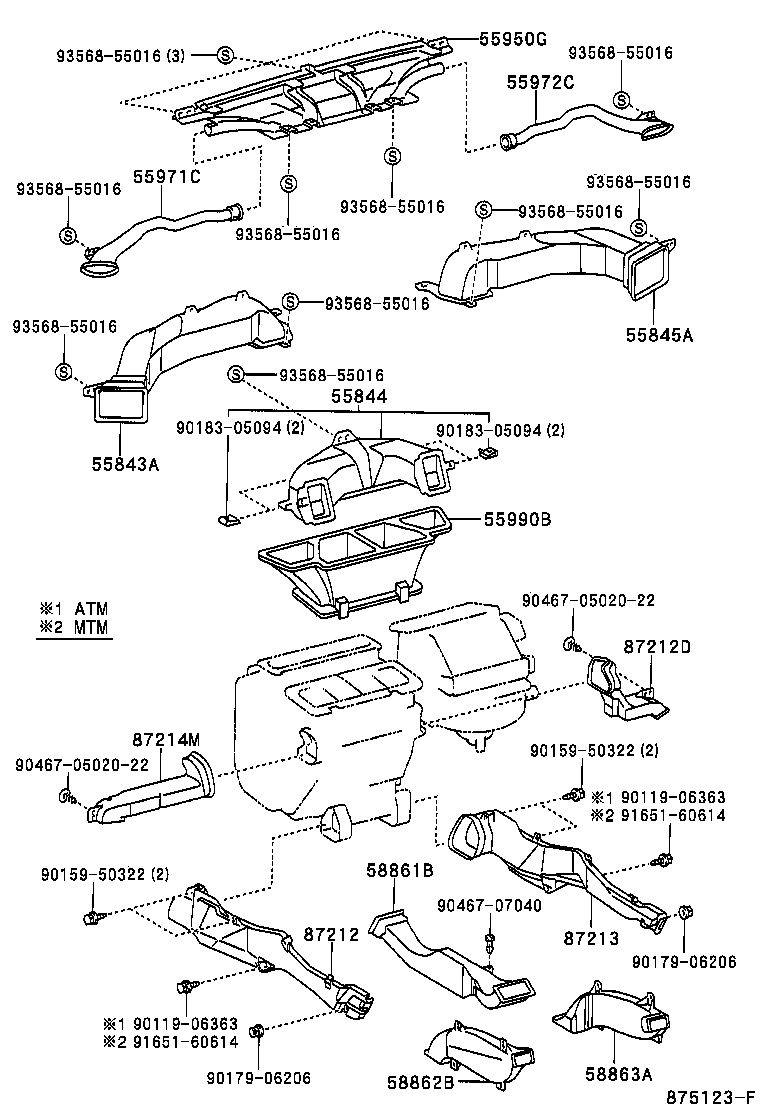

ILLUST NO. 2 OF 3(0203- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 55843-06030 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-06040 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55844-06040 |
ACV31,MCV30..TAIW |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 55845-06020 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 55950-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 55971-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55972-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-06010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 58862-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 58863A - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-06010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 58863-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 87212-06020 |
ACV30..PHL;MCV30..5FC;ACV31..TAIW |
1 | ||
| 87212D - DUCT, HEATER TO FOOT, NO.1 | ||||
| 55823-06020 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55823-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 87213-06020 |
ACV30..PHL;MCV30..5FC;ACV31..TAIW |
1 | ||
| 87214M - DUCT, HEATER TO FOOT, NO.3 | ||||
| 55824-06010 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55824-06010 |
ACV31,MCV30..TAIW |
1 | ||
| Common parts | ||||
| 90119-06363 | ||||
| 90159-50322 | ||||
| 90179-06206 | ||||
| 90183-05094 | ||||
| 90467-0502022 | ||||
| 90467-07040 | ||||
| 91651-60614 | ||||
| 93568-55016 | ||||

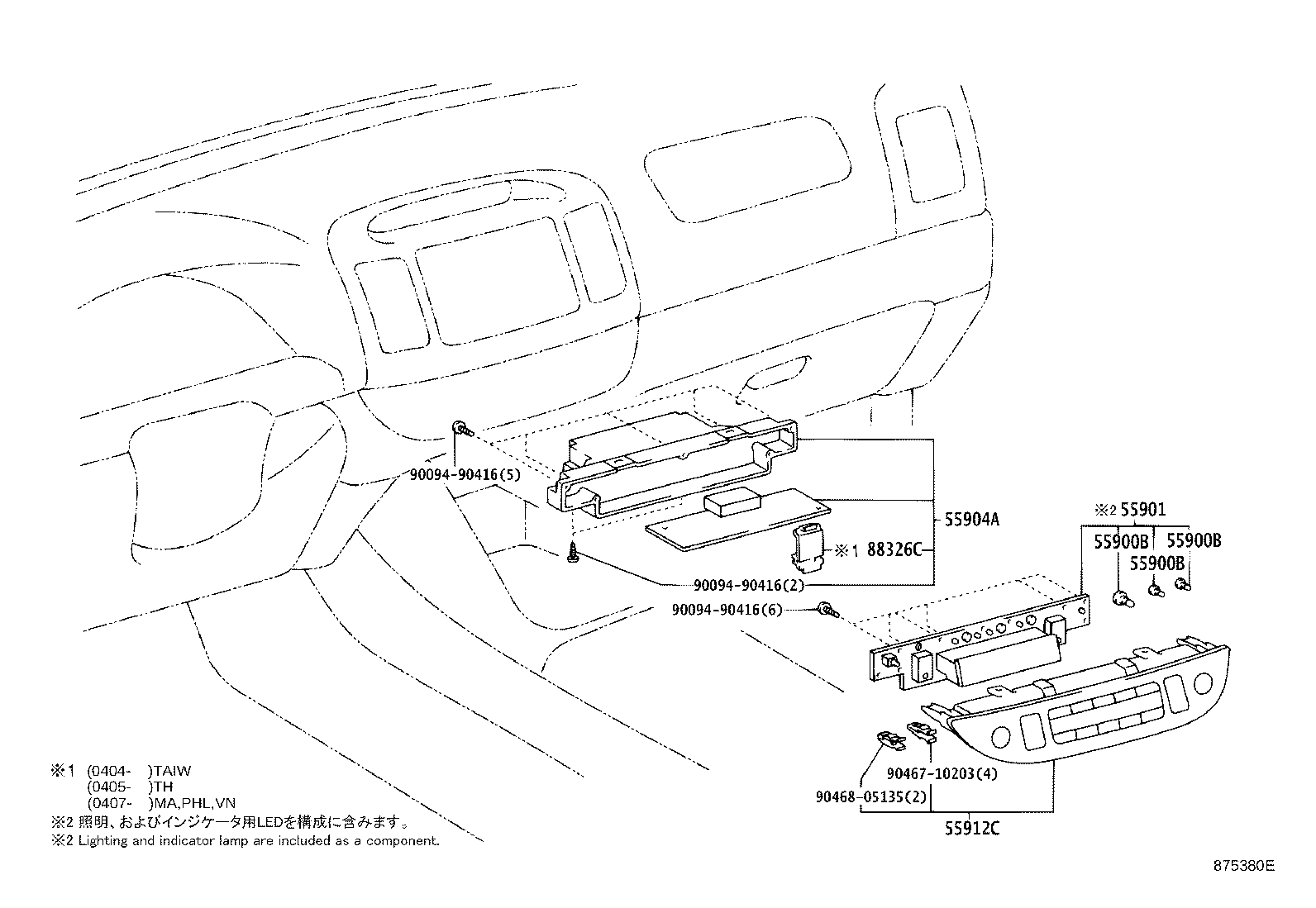

ILLUST NO. 1 OF 3(0203- )
CONTOROL PANEL--AUTO A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-33010 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW |
1 | ||
| 55901-33010 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-33120 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW |
1 | ||
| 55904-33120 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-33170 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW NO.2 |
1 | ||
| 88326C - PLATE, COVER | ||||
| 88326-63010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 88326-63010 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
