MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0404- )20G,30G,30V..TAIW

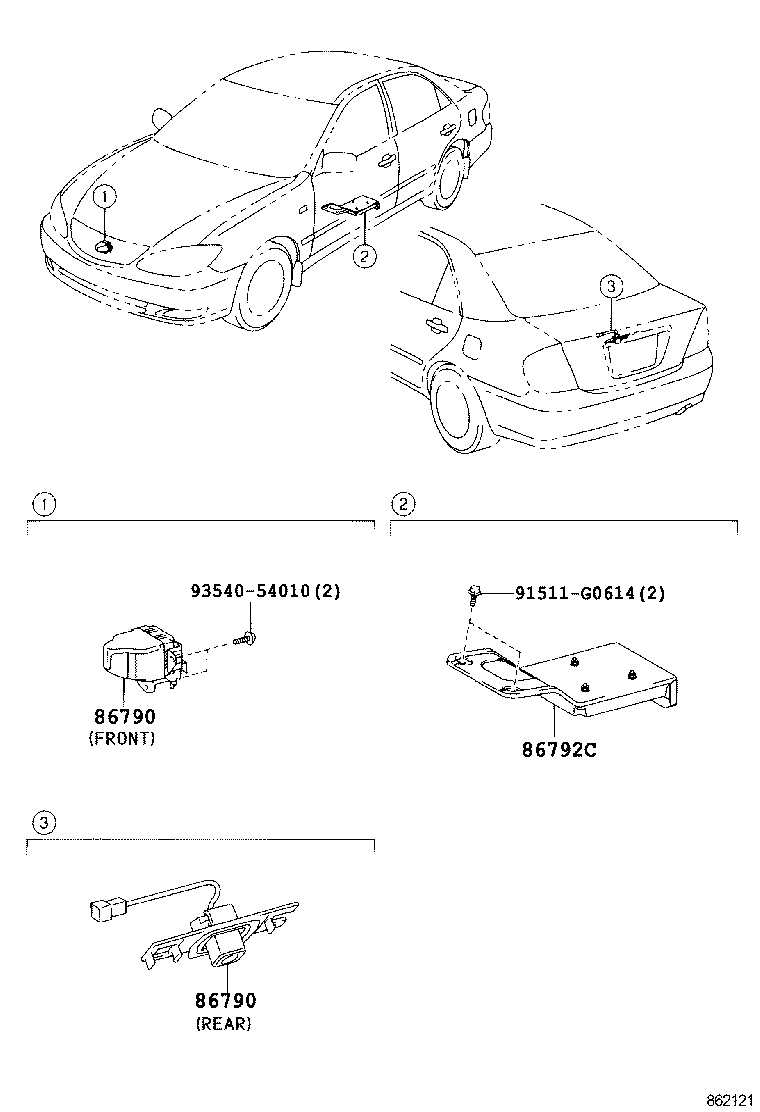

Click highlighted areas on diagram

diagram 86790 86790 86792C 91511G0614 9354054010
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-33010

MCV30..30V..TAIW

FRONT

 1
86790-33020

MCV30..30V..TAIW

REAR

 1
86790 - CAMERA ASSY, TELEVISION
86790-33010

MCV30..30V..TAIW

FRONT

 1
86790-33020

MCV30..30V..TAIW

REAR

 1
86792C - COMPUTER, PARKING ASSIST
86792-33010

MCV30..30V..TAIW

 1
Common parts
91511-G0614
93540-54010
