MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

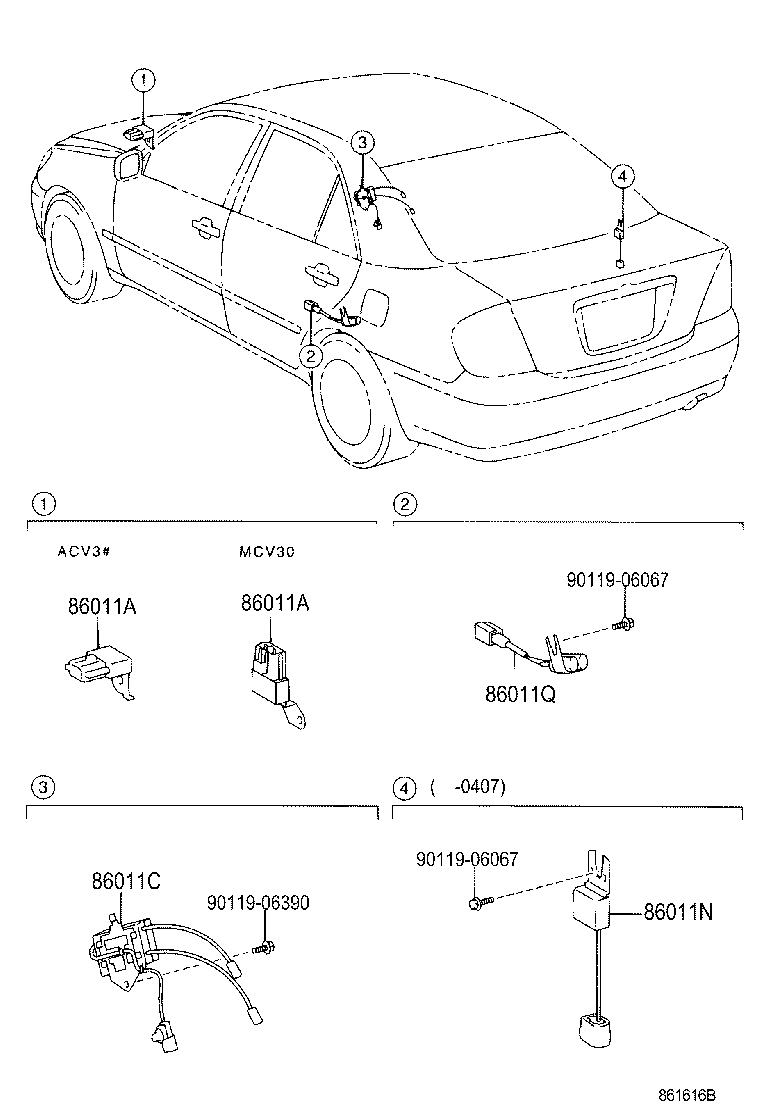

ILLUST NO. 2 OF 2(0203- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011C 86011N 86011Q 9011906067 9011906067 9011906390
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04153

MCV30..TAIW

 1
90980-04153

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
86011A - CONDENSER, RADIO SETTING
90980-04153

MCV30..TAIW

 1
90980-04153

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
86011C - FILTER, NOISE
90084-98058

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
90084-98058

ACV31,MCV30..TAIW

 1
86011N - FILTER, NOISE
90980-04046

MCV30..5FC

 1
90980-04046

MCV30..30V..TAIW

 1
86011Q - CONDENSER, RADIO SETTING
90980-04129

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
90980-04129

ACV31,MCV30..TAIW

 1
Common parts
90119-06067
90119-06390

ILLUST NO. 1 OF 2(0203- )

Click highlighted areas on diagram

diagram 86120 86120 86120A 86120A 86211 86211 86212 86212 86221A 86221D 9015350012 9015350012 9015350012 9015350012 91511B0616 91511B0616 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-06130

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

MATSUSHITA,TYPE A

 1
86120 - RECEIVER ASSY, RADIO
86120-06130

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

MATSUSHITA,TYPE A

 1
86211 - BRACKET, RADIO, NO.1
86211-33200

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

W(EXCLUSIVE TYPE AUDIO)

 1
86211-33200

MCV30..30V..5FC

 1
86211 - BRACKET, RADIO, NO.1
86211-33200

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

W(EXCLUSIVE TYPE AUDIO)

 1
86211-33200

MCV30..30V..5FC

 1
86212 - BRACKET, RADIO, NO.2
86212-33200

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

W(EXCLUSIVE TYPE AUDIO)

 1
86212-33200

MCV30..30V..5FC

 1
86212 - BRACKET, RADIO, NO.2
86212-33200

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

W(EXCLUSIVE TYPE AUDIO)

 1
86212-33200

MCV30..30V..5FC

 1
Common parts
90153-50012
91511-B0616
