MCV30L-JEAGKR (2004)
Toyota Camry
Production
Apr 2004
-
May 2006
Engine
1MZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0203- )

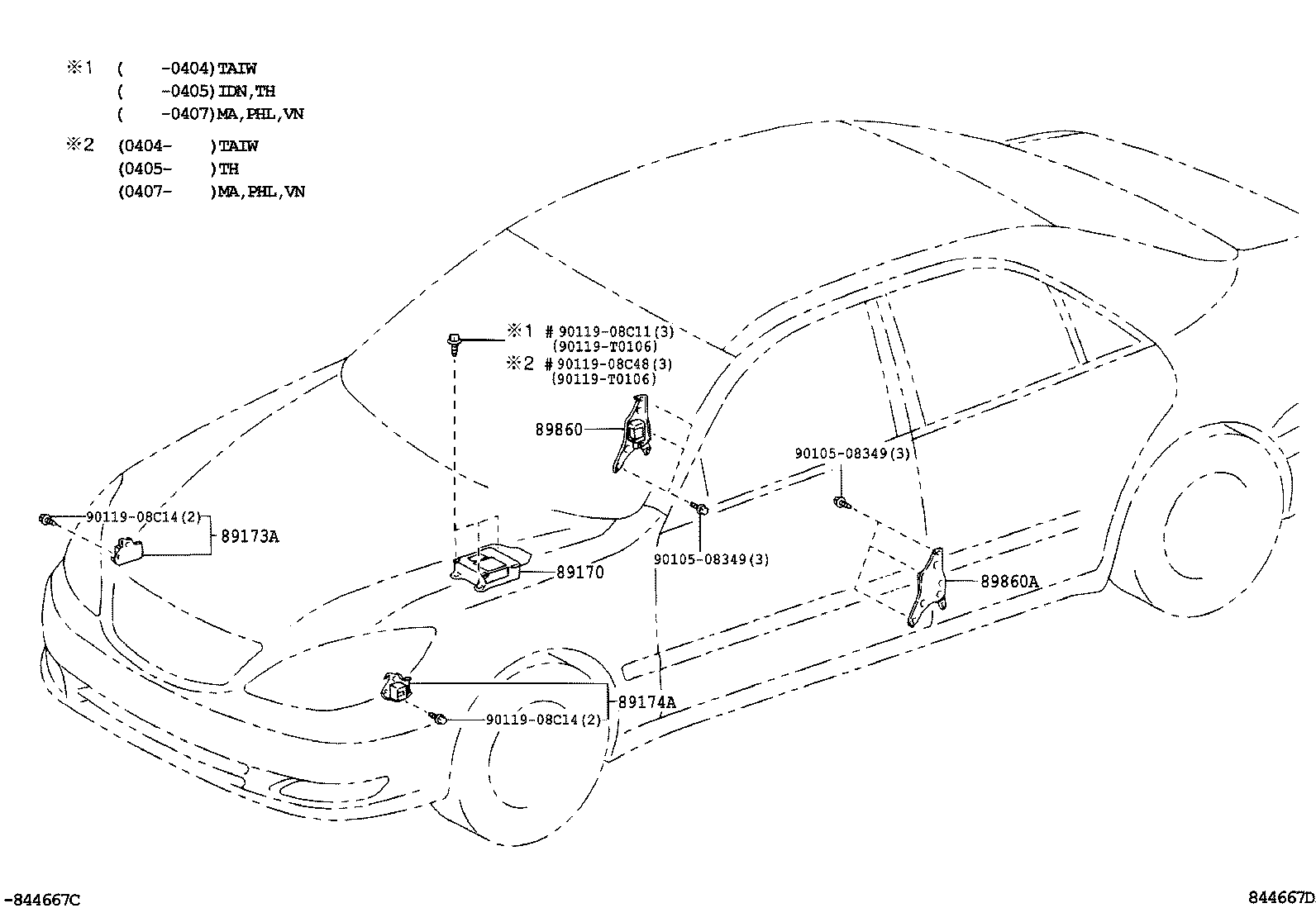

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-33390 |
ACV3#..TH..4FC;MCV30..30V..TAIW PART NUMBER LABEL=89170-33390 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-39315 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 89173-39355 |
ACV31..RHD;MCV30..VN..5FC;ACV31..20G..TAIW;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-39185 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 89174-39215 |
ACV31..RHD;MCV30..VN..5FC;ACV31..20G..TAIW;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-33060 |
ACV3#..TH..4FC;MCV30..30V..(PHL,TAIW) |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-33060 |
ACV3#..TH..4FC;MCV30..30V..(PHL,TAIW) |
1 | ||
| Common parts | ||||
| 90105-08349 | ||||
| 90119-08C11 | ||||
| 90119-08C14 | ||||
| 90119-08C48 | ||||
| 90119-T0106 | ||||
