MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )MCV30

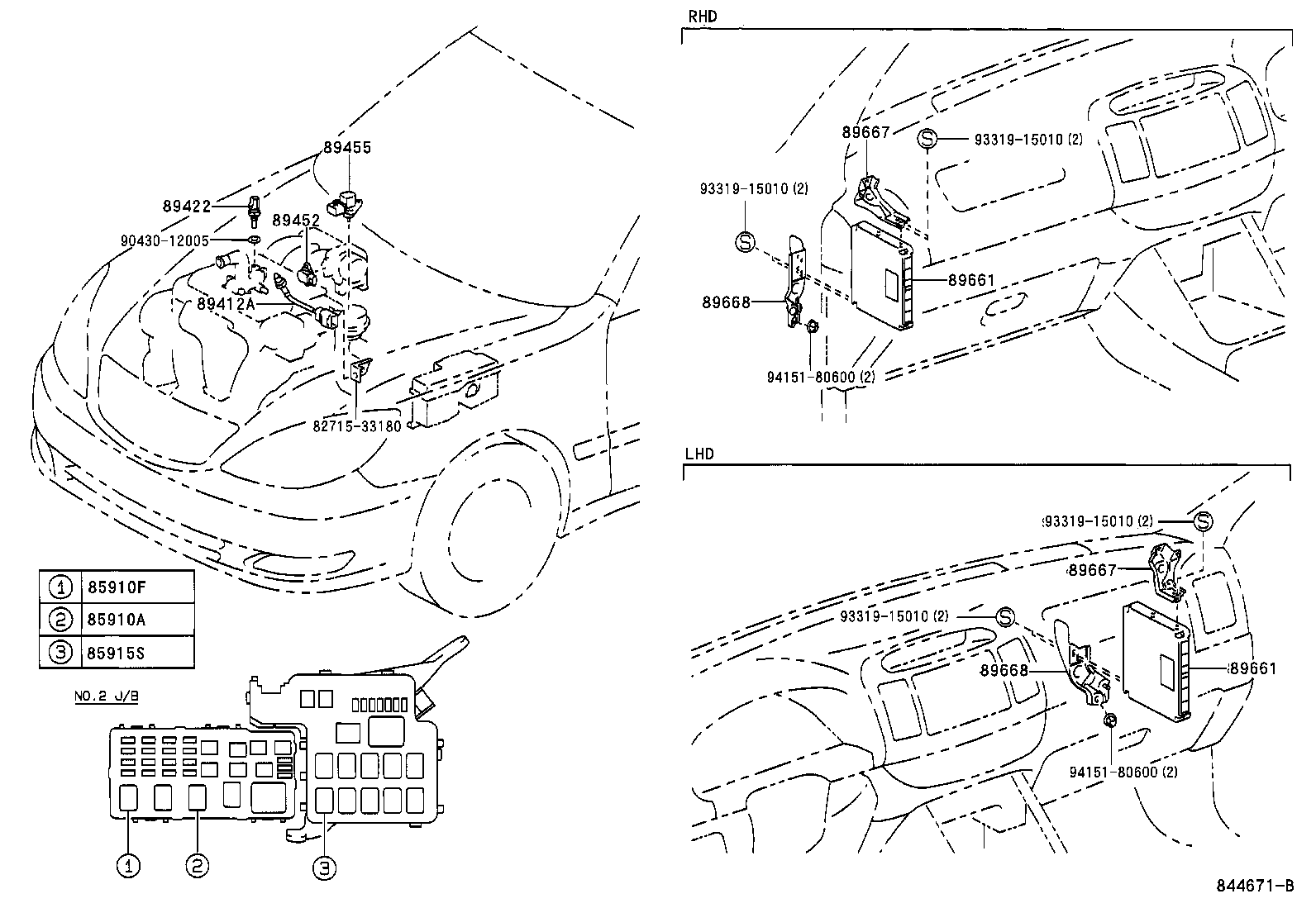

Click highlighted areas on diagram

diagram 8271533180 85910A 85910F 85915S 89412A 89422 89452 89455 89661 89661 89667 89667 89668 89668 9043012005 9331915010 9331915010 9331915010 9331915010 9415180600 9415180600
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87008

ACV31,MCV30..TAIW,VN

P/N LABEL=9008087008

 1
90080-87008

ACV3#..TH;MCV30..TAIW

PART NUMBER LABEL=90080-87008

 1
90080-87010

ACV31,MCV30..TAIW,VN

P/N LABEL=9008087010

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87008

ACV31,MCV30..TAIW,VN

P/N LABEL=9008087008

 1
90080-87010

ACV31,MCV30..TAIW,VN

P/N LABEL=9008087010

 1
90080-87008

ACV3#..TH;MCV30..TAIW

PART NUMBER LABEL=90080-87008

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90080-87010

MCV30..LHD

P/N LABEL=9008087010

 1
90080-87008

MCV30..TAIW

PART NUMBER LABEL=90080-87008

 1
90080-87008

MCV30..LHD

P/N LABEL=9008087008

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30150

MCV30

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3T730

MCV30..TAIW

 1
89666-33380

MCV30..5FC

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3T730

MCV30..TAIW

 1
89666-33380

MCV30..5FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-33120

ACV3#,MCV30..LHD..(4FC,5F)

 1
89667-33120

ACV30..LHD;MCV30..5FC;ACV31..TAIW

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-33120

ACV3#,MCV30..LHD..(4FC,5F)

 1
89667-33120

ACV30..LHD;MCV30..5FC;ACV31..TAIW

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-33160

ACV3#,MCV30..LHD..(4FC,5F)

 1
89668-33160

ACV30..LHD;MCV30..5FC;ACV31..TAIW

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-33160

ACV3#,MCV30..LHD..(4FC,5F)

 1
89668-33160

ACV30..LHD;MCV30..5FC;ACV31..TAIW

 1
Common parts
82715-33180
90430-12005
93319-15010
94151-80600
