MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

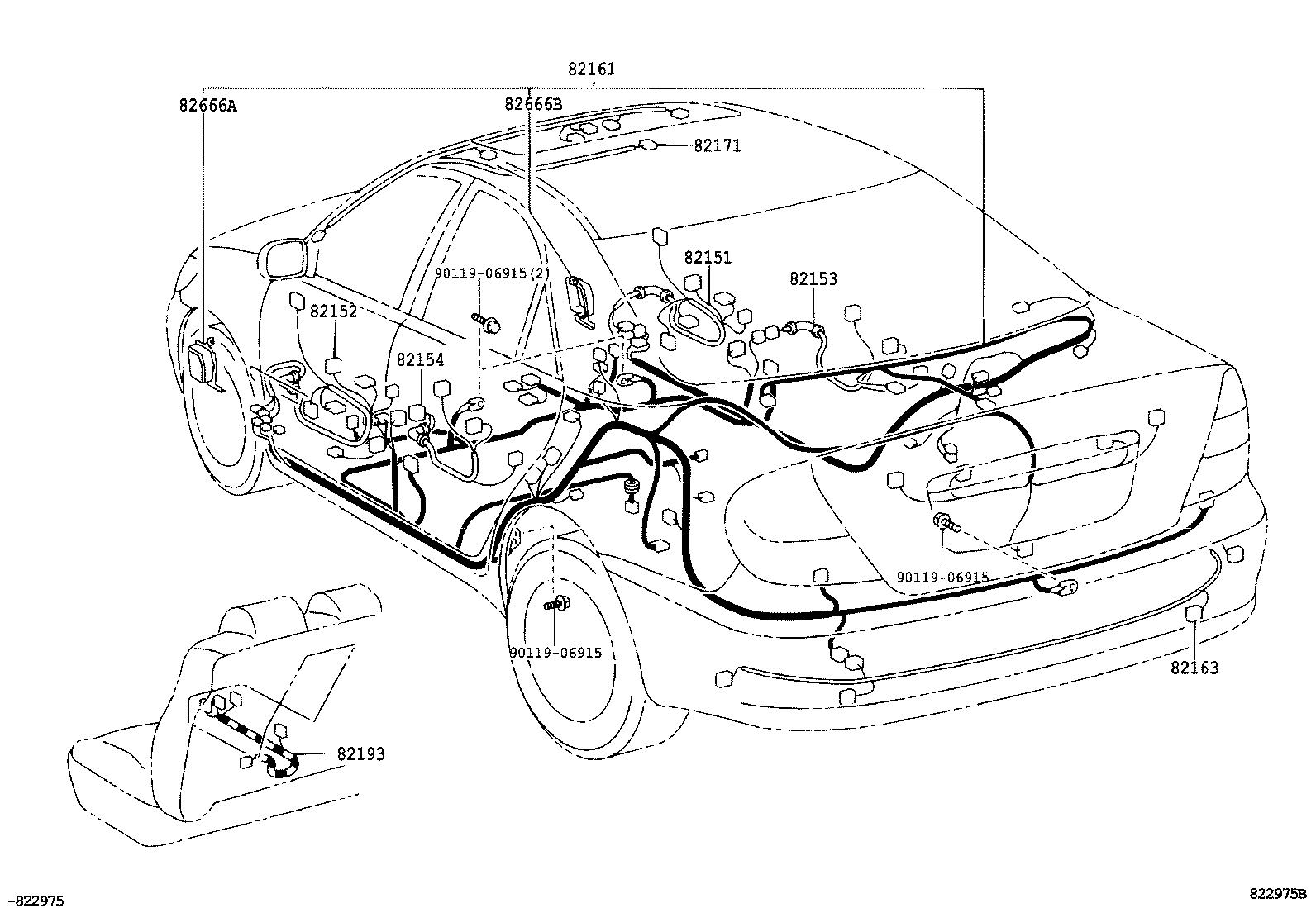

ILLUST NO. 4 OF 8(0203- )LHD

Click highlighted areas on diagram

DOOR,ROOF,FLOOR

diagram 82151 82152 82153 82154 82161 82163 82171 82193 82666A 82666B 9011906915 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-06250

MCV30..30V..TAIW

 1
82151-06551

MCV30..30V..TAIW

 1
82152 - WIRE, FRONT DOOR, LH
82152-06280

MCV30..30V..TAIW

 1
82152-06641

MCV30..30V..TAIW

 1
82153 - WIRE, REAR DOOR, NO.1
82153-06081

ACV30..RHD..(24Q,24V);MCV30..30V..(PHL,TAIW)

 1
82154 - WIRE, REAR DOOR, NO.2
82154-06081

ACV30..RHD..(24Q,24V);MCV30..30V..(PHL,TAIW)

 1
82161 - WIRE, FLOOR
82161-06590

MCV30..30V..TAIW

W(NAVIGATION SYSTEM)

 1
82161-06870

MCV30..30V..TAIW

 1
82163 - WIRE, FLOOR, NO.3
82163-06070

MCV30..30V..TAIW

 1
82171 - WIRE, ROOF, NO.1
82171-06410

ACV31,MCV30..(20G,30G,30V)..TAIW

W(EC GLARE PROOF MIRROR & MOON ROOF)

 1
82171-06410

MCV30..30V..TAIW

 1
82666A - HOLDER, CONNECTOR NO.2
82666-33260

ACV3#,MCV30..LHD..(4FC,5F)

 1
82666-33250

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82666B - HOLDER, CONNECTOR NO.3
82666-33250

ACV3#,MCV30..LHD..(4FC,5F)

 1
82666-33260

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
Common parts
90119-06915

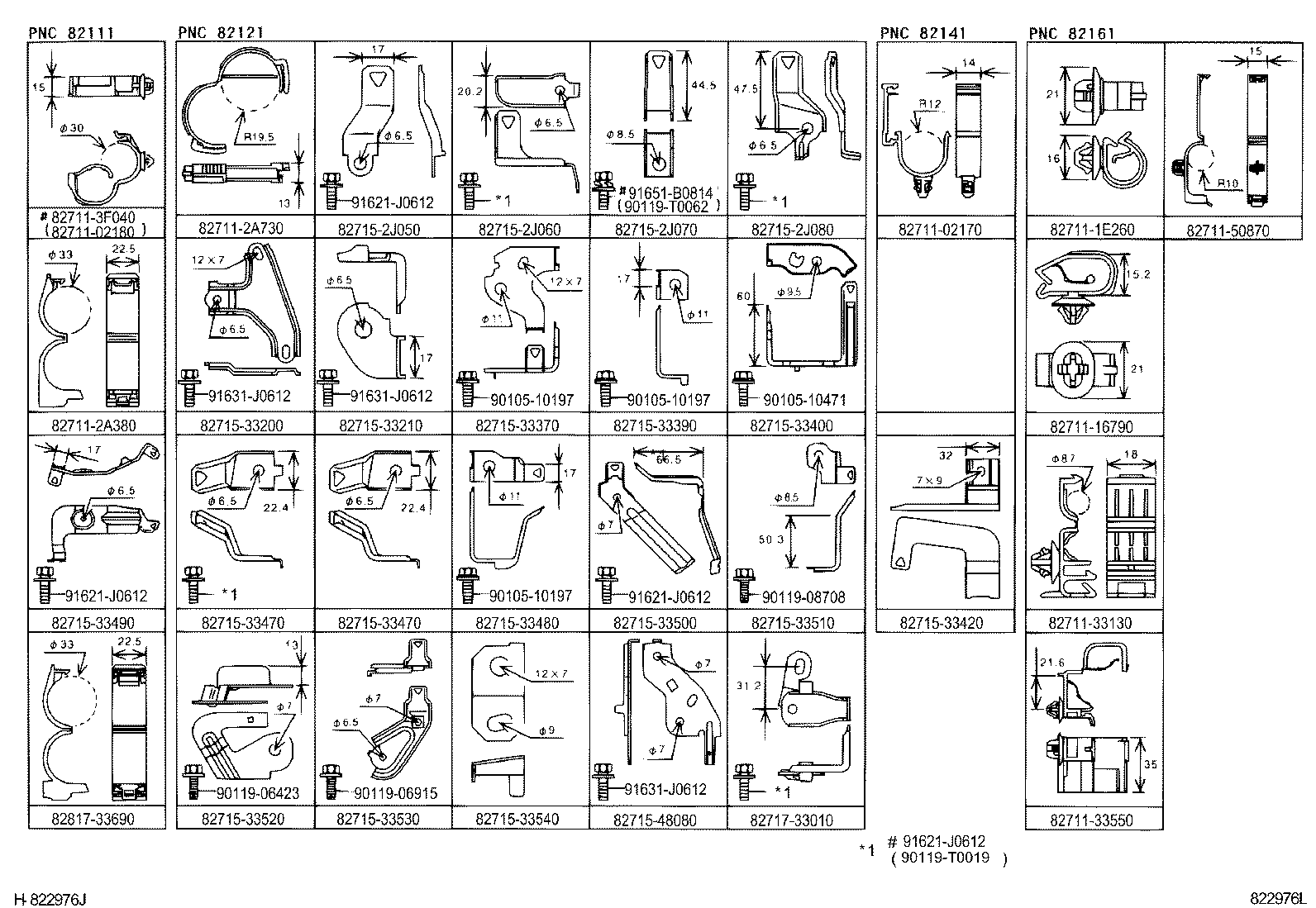

ILLUST NO. 6 OF 8(0203- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271102170 8271102180 8271116790 827111E260 827112A380 827112A730 8271133130 8271133550 827113F040 8271150870 827152J050 827152J060 827152J070 827152J080 8271533200 8271533210 8271533370 8271533390 8271533400 8271533420 8271533470 8271533470 8271533480 8271533490 8271533500 8271533510 8271533520 8271533530 8271533540 8271548080 8271733010 8281733690 9010510197 9010510197 9010510197 9010510471 9011906423 9011906915 9011908708 90119T0019 90119T0062 91621J0612 91621J0612 91621J0612 91621J0612 91631J0612 91631J0612 91631J0612 91651B0814
Part # Description Qty Price
Common parts
82711-02170
82711-02180
82711-16790
82711-1E260
82711-2A380
82711-2A730
82711-33130
82711-33550
82711-3F040
82711-50870
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33200
82715-33210
82715-33370
82715-33390
82715-33400
82715-33420
82715-33470
82715-33480
82715-33490
82715-33500
82715-33510
82715-33520
82715-33530
82715-33540
82715-48080
82717-33010
82817-33690
90105-10197
90105-10471
90119-06423
90119-06915
90119-08708
90119-T0019
90119-T0062
91621-J0612
91631-J0612
91651-B0814

ILLUST NO. 1 OF 8(0203- )LHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 82143C 82345 828172B730 828172B730 8401 8401 8401 8401 9011906915 9011906915
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-06810

MCV30..30V..TAIW

 1
82111-06B71

MCV30..30V..TAIW

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-06050

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
82143C - WIRE, INSTRUMENT PANEL, NO.3
82143-06080

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82345 - DIODE
82345-32020

MCV30..TAIW

 2
82345-12050

MCV30..TAIW

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
82817-2B730
90119-06915
Linked diagrams
8401

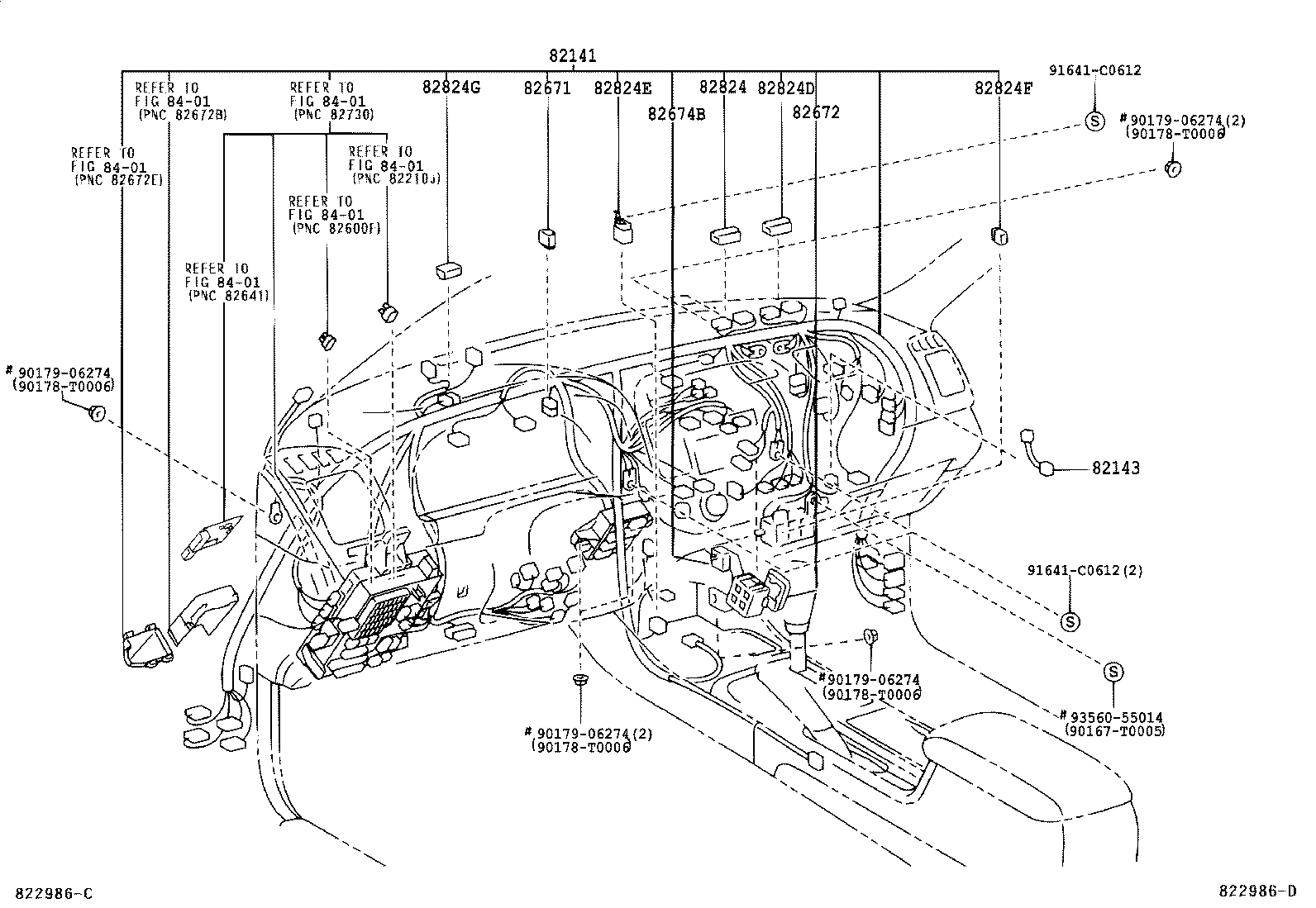

ILLUST NO. 3 OF 8(0203- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82143 82671 82672 82674B 82824 82824D 82824E 82824F 82824G 8401 8401 8401 8401 8401 8401 90167T0005 90178T0006 90178T0006 90178T0006 90178T0006 9017906274 9017906274 9017906274 9017906274 91641C0612 91641C0612 9356055014
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82145-06420

MCV30..30V..TAIW

 1
82145-06440

MCV30..30V..TAIW

W(NAVIGATION SYSTEM)

 1
82141-06C31

MCV30..30V..TAIW

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-06060

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-33050

ACV3#,MCV30..LHD..(4FC,5F)

 2
82824 - CONNECTOR, WIRING HARNESS
82824-12210

ACV31,MCV30..TAIW

 1
82824-12210

ACV3#,MCV30..LHD..(4FC,5F)

 2
82824D - CONNECTOR, WIRING HARNESS
82824-12220

ACV31,MCV30..TAIW

 1
82824-12220

ACV3#,MCV30..LHD..(4FC,5F)

 2
82824E - CONNECTOR, WIRING HARNESS
82824-20130

ACV3#,MCV30..TAIW,TH

 1
82824F - CONNECTOR, WIRING HARNESS
82824-30220

ACV31,MCV30..TAIW

 1
82824-30220

ACV3#,MCV30..LHD..(4FC,5F)

 2
82824G - CONNECTOR, WIRING HARNESS
82824-50110

ACV30..MA,PHL,TH,VN;ACV31,MCV30..MA,TAIW,TH

 1
Common parts
90167-T0005
90178-T0006
90179-06274
91641-C0612
93560-55014
Linked diagrams
8401

ILLUST NO. 2 OF 8(0203- )MCV30

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82123 82219A 82823T 9010508096 9011906915 9012606025 9017906080 9017906080 9017906274 9017906288 91631J0612
Part # Description Qty Price
82121 - WIRE, ENGINE
82139-33020

MCV30..5FC

 1
82122 - WIRE, ENGINE, NO.2
82122-06040

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82123 - WIRE, ENGINE, NO.3
82123-06050

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
82219A - WIRE, SENSOR
82219-33030

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
Common parts
90105-08096
90119-06915
90126-06025
90179-06080
90179-06274
90179-06288
91631-J0612

ILLUST NO. 5 OF 8(0203- )

Click highlighted areas on diagram

SEAT

diagram 82167 82191 82191 82192
Part # Description Qty Price
82167 - WIRE, SEAT, NO.1
79173-06010

MCV30..(TAIW,VN)..5FC

 1
82191 - WIRE, FRONT SEAT, RH
82191-06040

MCV30..30V..TAIW

 1
82191 - WIRE, FRONT SEAT, RH
82191-06040

MCV30..30V..TAIW

 1
82192 - WIRE, FRONT SEAT, LH
82192-06020

MCV30..30V..TAIW

 1
82192-06020

MCV30..30V..TAIW

 1

ILLUST NO. 7 OF 8(0203- )

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001 82001C 82001C 82001D 82001G 8271110070 8271110070 9011906915 9011906915 9011906915 9011906915 9151160612 91621J0612 91621J0612
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07346

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
82001 - CABLE, BOND, NO.1
90980-07346

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
82001C - CABLE, BOND, NO.2
90980-07400

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82001C - CABLE, BOND, NO.2
90980-07400

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
82001D - CABLE, BOND, NO.3
90980-07347

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
82001G - CABLE, BOND, NO.4
90980-07287

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
Common parts
82711-10070
90119-06915
91511-60612
91621-J0612

ILLUST NO. 8 OF 8(0203- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010619 9098011019 9098011095 9098011096 9098011148 9098011149 9098011162 9098011587
Part # Description Qty Price
Common parts
90980-10619
90980-11019
90980-11095
90980-11096
90980-11148
90980-11149
90980-11162
90980-11587
