MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

Click highlighted areas on diagram

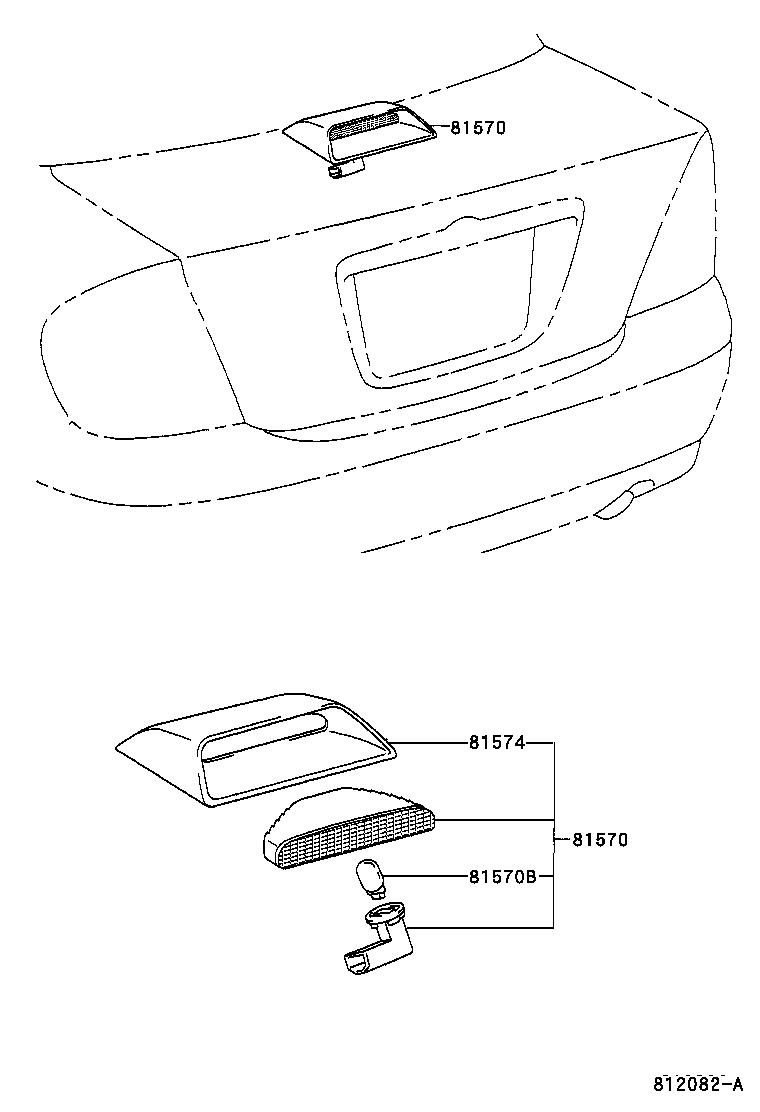

diagram 81570 81570 81570B 81574
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-06080C0

ACV31,MCV30..TAIW

BLACK,TRIM2#

 1
81570-06080A0

ACV31,MCV30..TAIW

IVORY,TRIM0#

 1
81570-06080C0

ACV31,MCV30..TAIW

BLACK,TRIM2#

 1
81570-06080A0

ACV31,MCV30..TAIW

IVORY,TRIM0#

 1
81570 - LAMP ASSY, CENTER STOP
81570-06080C0

ACV31,MCV30..TAIW

BLACK,TRIM2#

 1
81570-06080A0

ACV31,MCV30..TAIW

IVORY,TRIM0#

 1
81570-06080C0

ACV31,MCV30..TAIW

BLACK,TRIM2#

 1
81570-06080A0

ACV31,MCV30..TAIW

IVORY,TRIM0#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

12V 16W

 1
90981-11059

ACV3#,MCV30..4FC,5F

12V 16W

 1
