MCV30L-JEAGKR (2004)
Toyota Camry
Production
Apr 2004
-
May 2006
Engine
1MZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0203- )TAIW

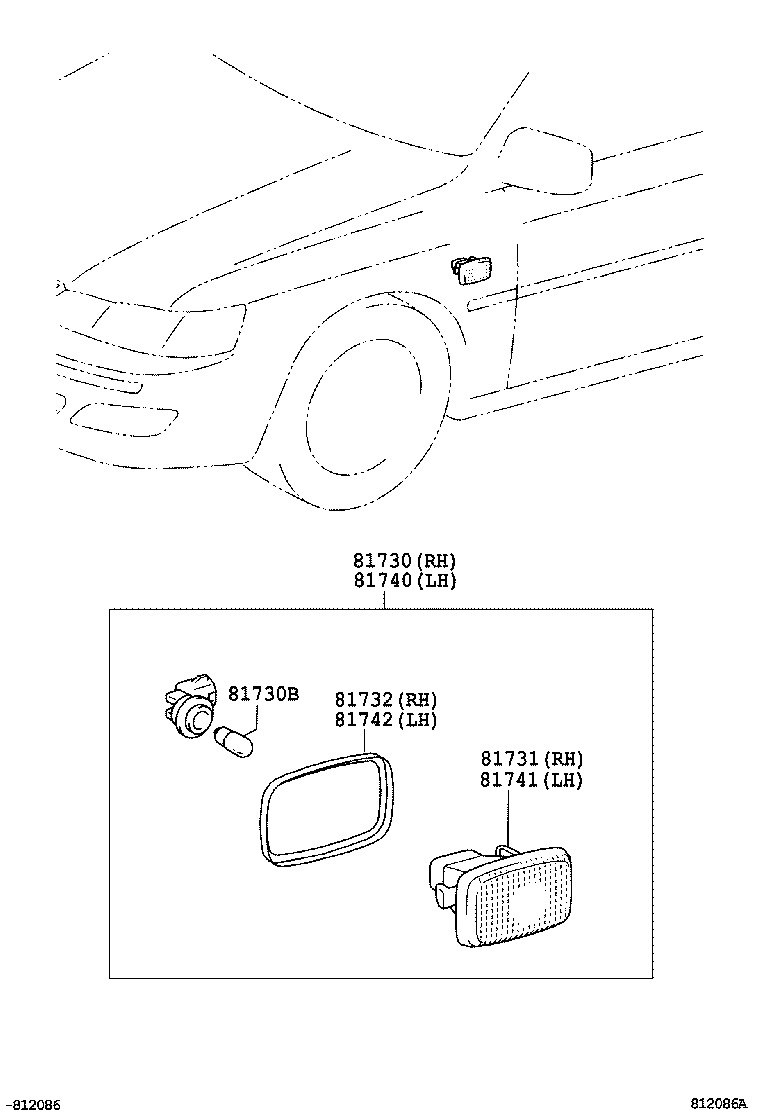

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 81730-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90981-15012 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN 12V 5W |
2 | ||
| 90981-15012 |
ACV31,MCV30..TAIW 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-8C000 |
ACV31,MCV30..TAIW |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-8C000 |
ACV31,MCV30..TAIW |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 81730-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-8C000 |
ACV31,MCV30..TAIW |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81732-8C000 |
ACV31,MCV30..TAIW |
1 | ||
