MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0404- )TAIW ; (0405- )TH ; (0407- )20E,24G,24V,30V..MA,PHL,VN

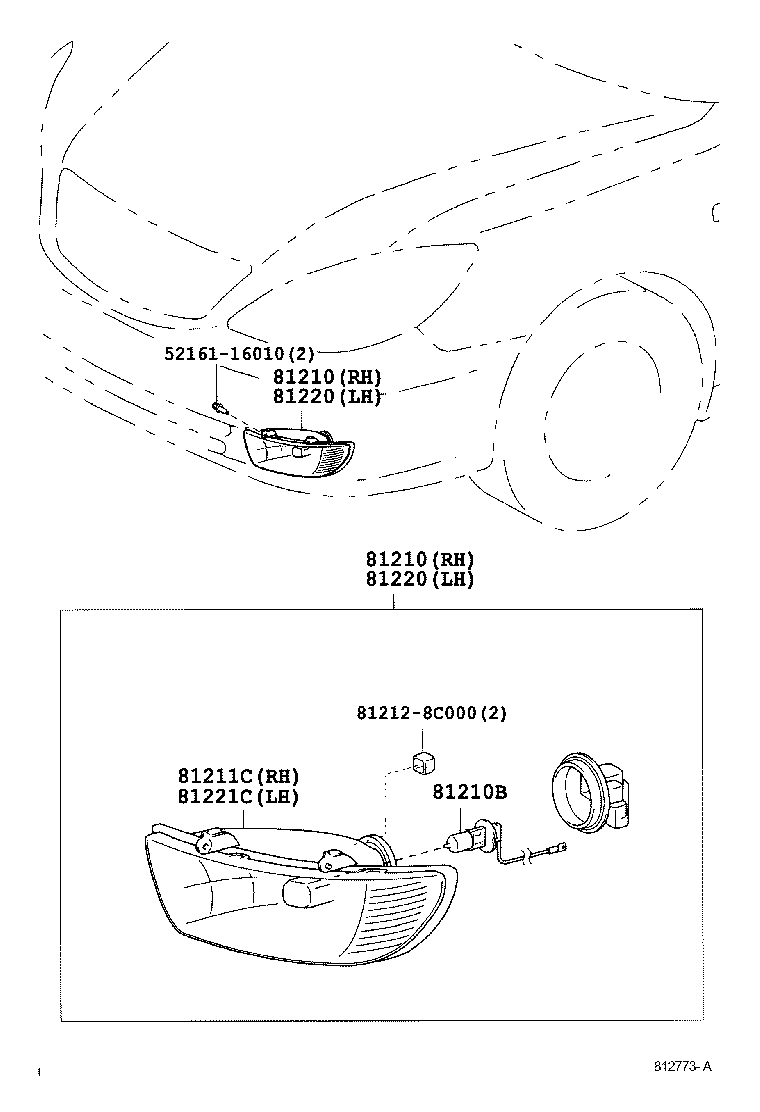

Click highlighted areas on diagram

diagram 5216116010 81210 81210 81210B 81211C 812128C000 81220 81220 81221C
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-06020

ACV31..20G..PHL;ACV30,MCV30..24Q,24V,30G,30V;ACV3#..(20E,20G,24G)..(IDN,TAIW)

 1
81210-06030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..24G,24Q,24V

 1
81210 - LAMP ASSY, FOG
81210-06020

ACV31..20G..PHL;ACV30,MCV30..24Q,24V,30G,30V;ACV3#..(20E,20G,24G)..(IDN,TAIW)

 1
81210-06030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..24G,24Q,24V

 1
81210B - BULB, FOG LAMP
90981-13047

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..(24G,24Q,24V)..(MA,PHL,TH,VN)

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-8C002

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..(24G,24Q,24V)..(MA,PHL,TH,VN)

 1
81220 - LAMP ASSY, FOG, LH
81220-06020

ACV31..20G..PHL;ACV30,MCV30..24Q,24V,30G,30V;ACV3#..(20E,20G,24G)..(IDN,TAIW)

 1
81220-06030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..24G,24Q,24V

 1
81220 - LAMP ASSY, FOG, LH
81220-06020

ACV31..20G..PHL;ACV30,MCV30..24Q,24V,30G,30V;ACV3#..(20E,20G,24G)..(IDN,TAIW)

 1
81220-06030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..24G,24Q,24V

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-8C002

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..(24G,24Q,24V)..(MA,PHL,TH,VN)

 1
Common parts
52161-16010
81212-8C000
