MCV30L-JEAGKR (2004)
Toyota Camry

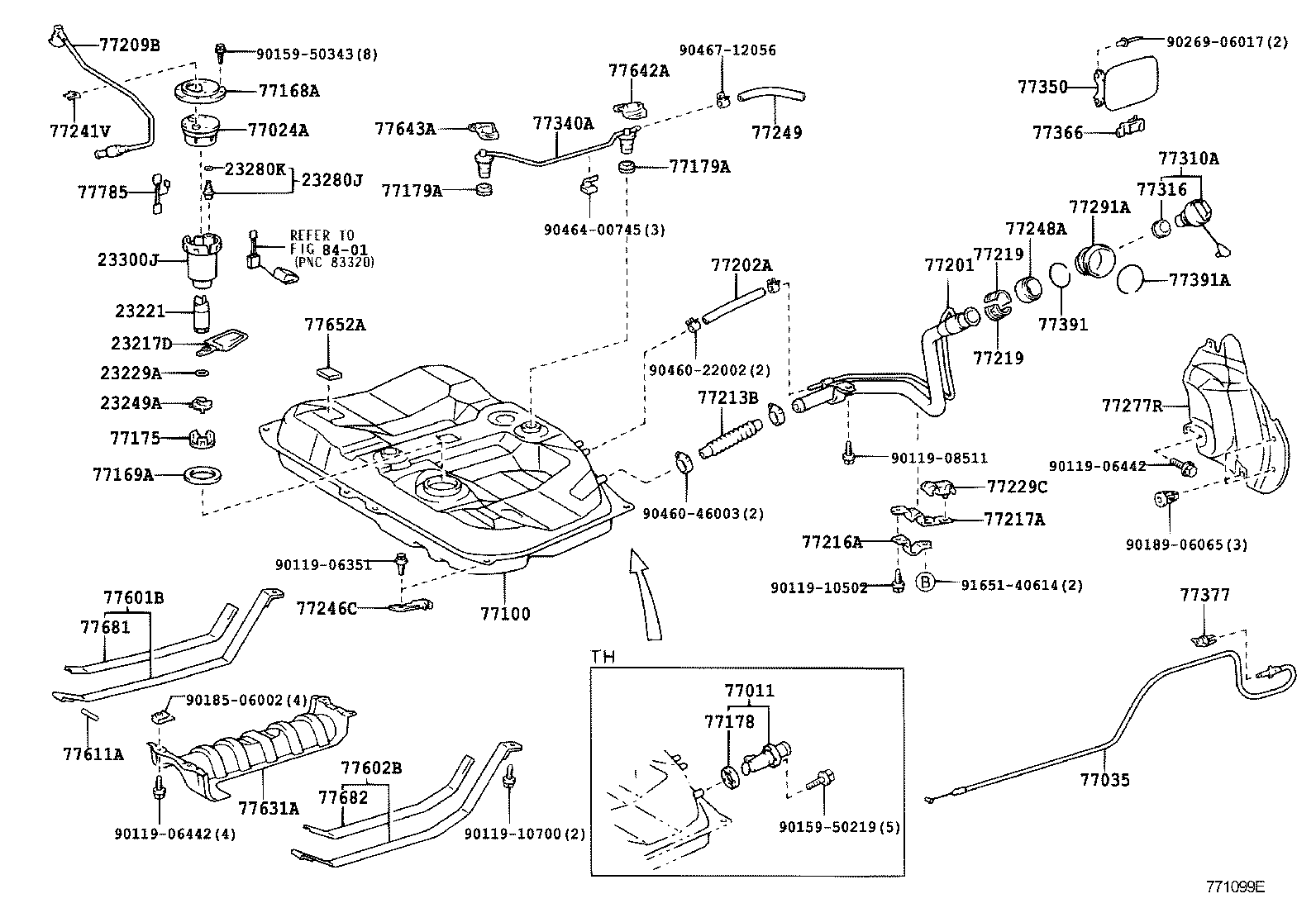

ILLUST NO. 1 OF 2(0203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0C010 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23217-0C010 |
1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-20040 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23221-20030 |
1MZFE..MCV30..5FC |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23229-16010 |
1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 90301-07020 |
1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
1AZFE,1MZFE..ACV31,MCV30..TAIW |
1 | ||
| 23300-21010 |
1AZFE,2AZFE..ACV3#..TAIW,VN;1MZFE..MCV30..(TAIW,VN)..5FC |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33030 |
ACV3#,MCV30..(TAIW,VN)..(4FC,5F) |
1 | ||
| 77024-06100 |
ACV31,MCV30..TAIW |
1 | ||
| 77024-33030 |
ACV31,MCV30..TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 77035-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33130 |
ACV3#,MCV30..(TAIW,VN)..(4FC,5F) |
1 | ||
| 77001-33130 |
ACV31,MCV30..TAIW |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-33020 |
ACV3#,MCV30..(TAIW,VN)..(4FC,5F) |
1 | ||
| 77175-33020 |
ACV31,MCV30..TAIW |
1 | ||
| 77175-06040 |
ACV31,MCV30..TAIW |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-06050 |
ACV31,MCV30..TAIW |
1 | ||
| 77201-06050 |
ACV31,MCV30..TAIW |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13024 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN L=240 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN L=224 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-41010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 77241-33011 |
ACV3#,MCV30..(TAIW,VN)..(4FC,5F) |
1 | ||
| 77241-33011 |
ACV31,MCV30..TAIW |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-06040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-06070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77360-35010 |
ACV3#,MCV30 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-06010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-06010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33021 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32030 |
ACV31,MCV30..TAIW |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
ACV31,MCV30..TAIW |
1 | ||
| 77785-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 77785-52020 |
ACV3#,MCV30..(TAIW,VN)..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90119-10700 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90185-06002 | ||||
| 90189-06065 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90467-12056 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33120 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95337-06018 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN L=180 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33120 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77299-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-20080 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77412-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-06120 |
ACV3#,MCV30 (L) |
1 | ||
| 77740-06121 |
ACV31..MA;MCV30..5FC;ACV30..MA,PHL,VN (L) |
1 | ||
| 77740-48090 |
ACV31..MA;MCV30..5FC;ACV30..MA,PHL,VN (J) |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-33070 |
ACV31..MA;MCV30..5FC;ACV30..MA,PHL,VN |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-33020 |
ACV31..MA;MCV30..5FC;ACV30..MA,PHL,VN (J) |
1 | ||
| 77754-06020 |
ACV31..MA;MCV30..5FC;ACV30..MA,PHL,VN (L) |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 90469-12009 | ||||
| 91626-A0825 | ||||
| 91631-B0625 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 4708 | ||||
