MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

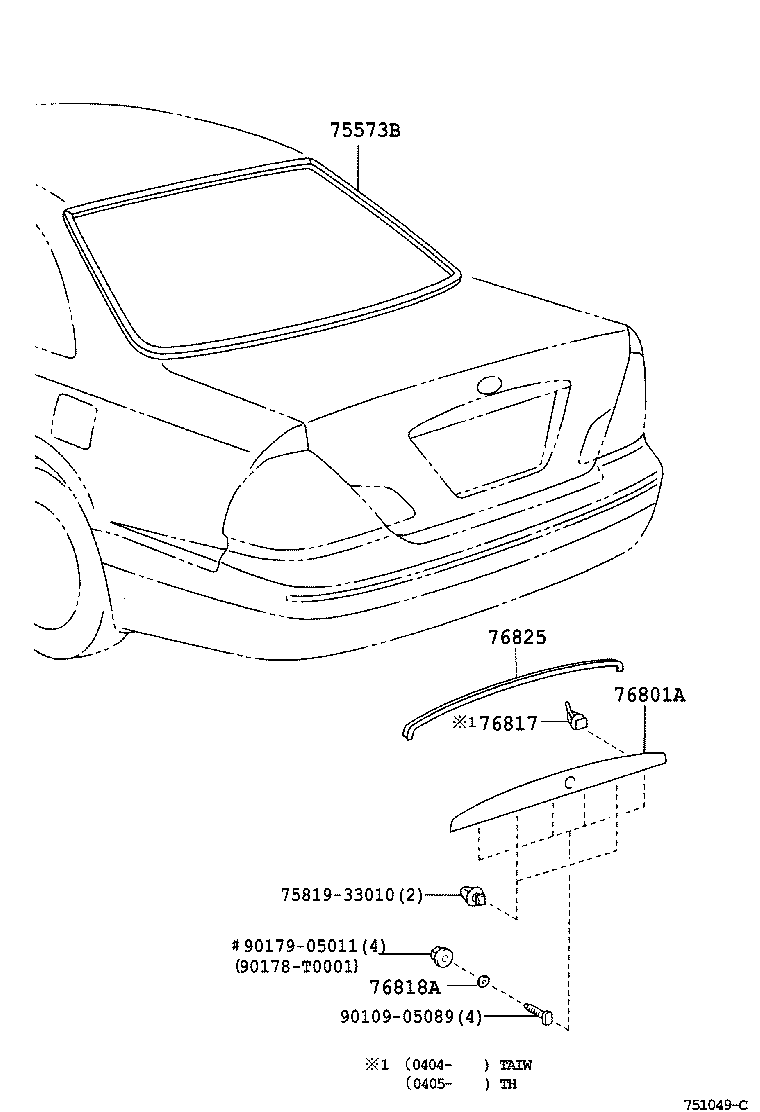

Click highlighted areas on diagram

diagram 75573B 7581933010 76801A 76817 76818A 76825 9010905089 90178T0001 9017905011
Part # Description Qty Price
75573B - MOULDING, BACK WINDOW, OUTSIDE
75571-06050

ACV31,MCV30..(20G,30G,30V)..TAIW

 1
75571-06050

ACV31,MCV30..(20G,30G,30V)..TAIW

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-06090

MCV30..30V..TAIW

PLATED,CHROME PLATED & W(BACK GUIDE MONITOR)

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 2
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV31,MCV30..TAIW

 4
76818-33010

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 5
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-06020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
76825-33020

ACV31,MCV30..TAIW

 1
Common parts
75819-33010
90109-05089
90178-T0001
90179-05011
