MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

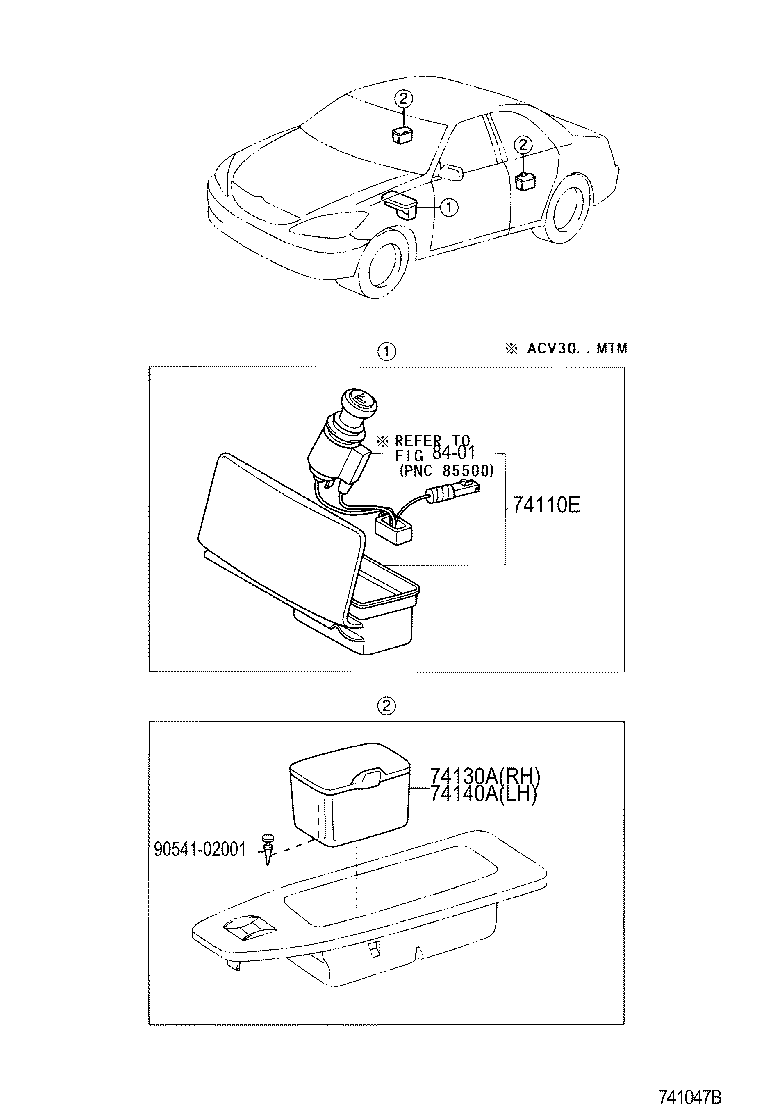

Click highlighted areas on diagram

diagram 74110E 74130A 74140A 8401 9054102001
Part # Description Qty Price
74110E - RECEPTACLE ASSY, FRONT ASH
74110-06010

ACV30..24V;MCV30..5FC;ACV31..MA,TAIW

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-06050

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

WOOD GRAIN

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-06040

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

WOOD GRAIN

 1
Common parts
90541-02001
Linked diagrams
8401
