MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

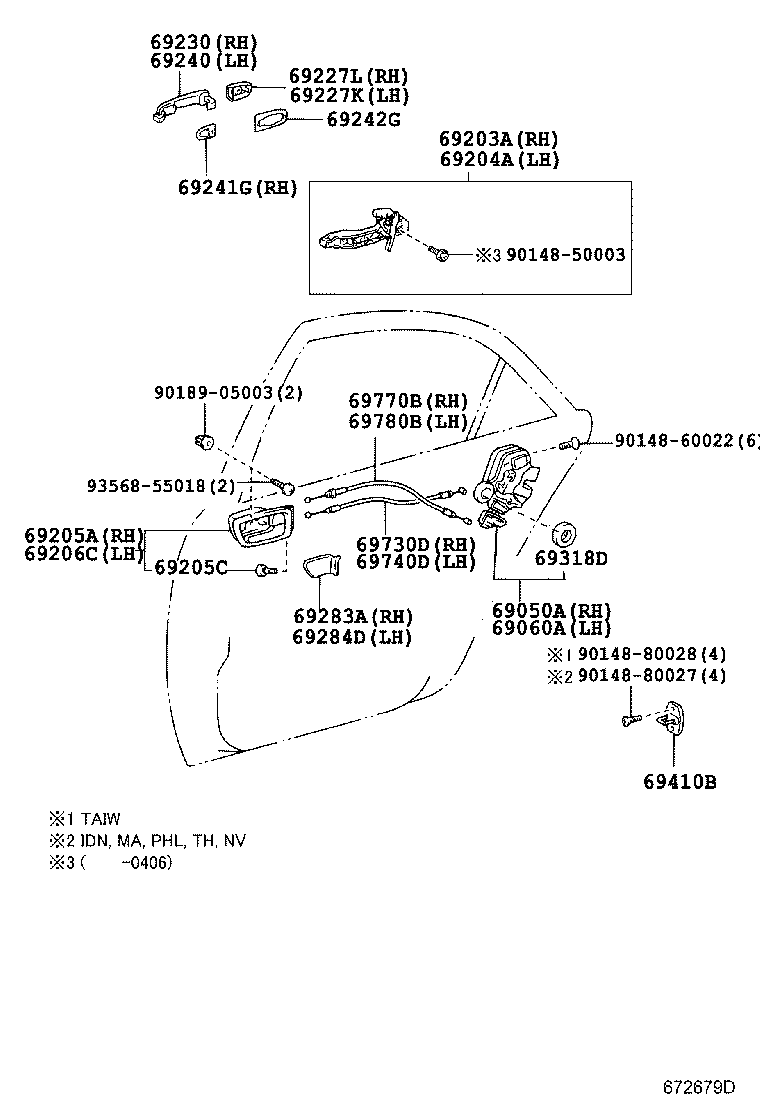

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227K 69227L 69230 69240 69241G 69242G 69283A 69284D 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880027 9014880028 9018905003 9356855018
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-06030

ACV31,MCV30..TAIW

 1
69050-06030

ACV31,MCV30..TAIW

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-06030

ACV31,MCV30..TAIW

 1
69060-06030

ACV31,MCV30..TAIW

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-06010

ACV31,MCV30..TAIW

 1
69203-06010

ACV31,MCV30..TAIW

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-06010

ACV31,MCV30..TAIW

 1
69204-06010

ACV31,MCV30..TAIW

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-33040E0

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

SANDAL WOOD,TRIM4#

 1
69205-33040B0

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

DK.CHARCOAL,TRIM1#

 1
69205-33060C0

MCV30..TAIW

W(ILLUMINATION LAMP),BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

MCV30..TH;ACV30,MCV30..(TAIW,TH)..(5F,5FC)

 2
90541-04014

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 4
90541-04014

ACV31,MCV30..TAIW

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-33050C0

MCV30..TAIW

W(ILLUMINATION LAMP),BLACK,TRIM2#

 1
69206-33040B0

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

DK.CHARCOAL,TRIM1#

 1
69227K - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-02140

ACV31,MCV30..(20G,30G,30V)..TAIW

*CR

 1
69227-02140

ACV31,MCV30..(20G,30G,30V)..TAIW

*CR

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-02140

ACV31,MCV30..(20G,30G,30V)..TAIW

*CR

 1
69227-02140

ACV31,MCV30..(20G,30G,30V)..TAIW

*CR

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-02070

ACV31,MCV30..(20G,30G,30V)..TAIW

PLATED

 1
69210-02070

ACV31,MCV30..(20G,30G,30V)..TAIW

PLATED

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-02070

ACV31,MCV30..(20G,30G,30V)..TAIW

PLATED

 1
69210-02070

ACV31,MCV30..(20G,30G,30V)..TAIW

PLATED

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-42020

ACV31,MCV30..TAIW

 2
69241-42020

ACV31,MCV30..TAIW

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

ACV31,MCV30..TAIW

 2
69242-42010

ACV31,MCV30..TAIW

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-33020E0

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

SANDAL WOOD,TRIM4#

 1
69283-33020B0

ACV31,MCV30..TAIW

DK.CHARCOAL,TRIM1#

 1
69283-33030C0

MCV30..TAIW

W(ILLUMINATION LAMP),BLACK,TRIM2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-33030C0

MCV30..TAIW

W(ILLUMINATION LAMP),BLACK,TRIM2#

 1
69284-33020B0

ACV31,MCV30..TAIW

DK.CHARCOAL,TRIM1#

 1
69284-33020E0

ACV31,MCV30..(20E,20G,30G,30V)..TAIW

SANDAL WOOD,TRIM4#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-06010

ACV31,MCV30..TAIW

 2
69410-06010

ACV31,MCV30..TAIW

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-06020

ACV31,MCV30..TAIW

 1
69730-06020

ACV31,MCV30..TAIW

 1
69730-06020

MCV30..TAIW..5FC

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-06020

ACV31,MCV30..TAIW

 1
69730-06020

ACV31,MCV30..TAIW

 1
69730-06020

MCV30..TAIW..5FC

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-06010

ACV31,MCV30..TAIW

 1
69770-06010

ACV31,MCV30..TAIW

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-06010

ACV31,MCV30..TAIW

 1
69770-06010

ACV31,MCV30..TAIW

 1
69770-06010

MCV30..TAIW..5FC

 1
Common parts
90148-50003
90148-60022
90148-80027
90148-80028
90189-05003
93568-55018
