MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

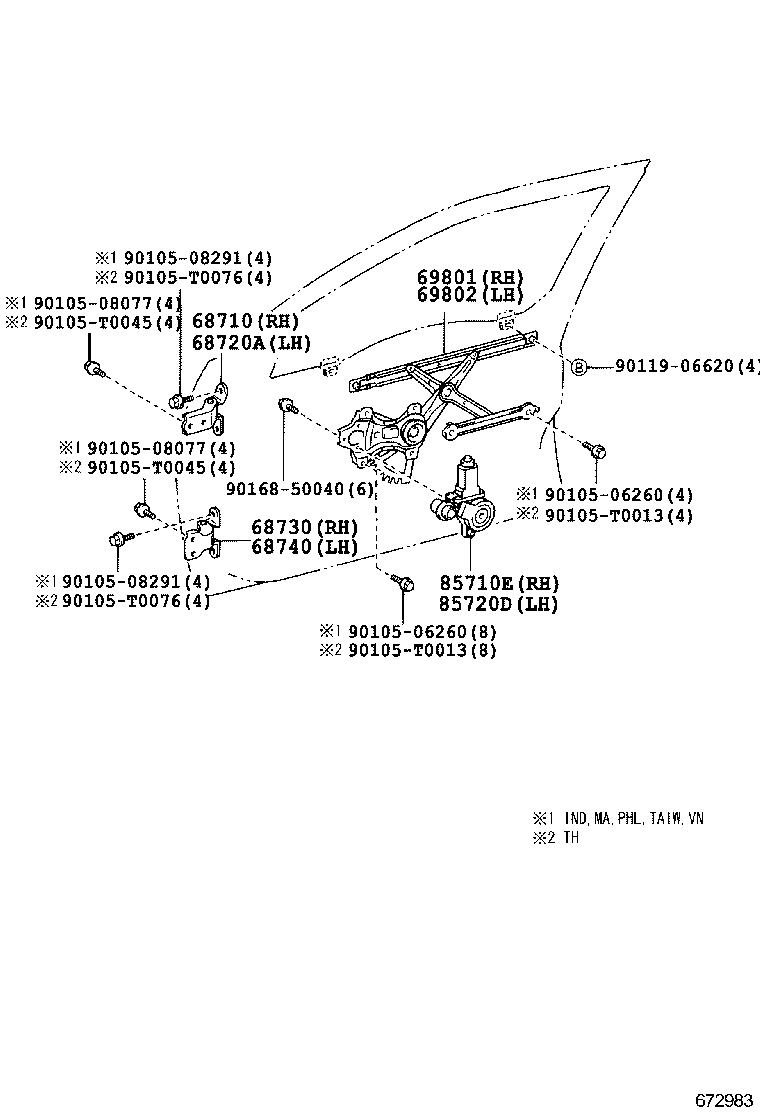

Click highlighted areas on diagram

diagram 68710 68720A 68730 68740 69801 69802 85710E 85720D 9010506260 9010506260 9010508077 9010508077 9010508291 9010508291 90105T0013 90105T0013 90105T0045 90105T0045 90105T0076 90105T0076 9011906620 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-06020

ACV3#,MCV30..LHD..(4FC,5F)

 1
68720A - HINGE ASSY, FRONT DOOR, LH
68720-06020

ACV3#,MCV30..LHD..(4FC,5F)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-06030

ACV31,MCV30..TAIW

 1
69801-06030

ACV31,MCV30..TAIW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-06030

ACV31,MCV30..TAIW

 1
69802-06030

ACV31,MCV30..TAIW

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-33120

ACV3#..MA,TH;MCV30..PHL,TAIW,TH

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-33130

ACV3#..TAIW,VN;MCV30..VN..5FC;ACV30,MCV30..(24E,24Q,24V,30G,30V)..(MA,PHL,TAIW,TH)

 1
Common parts
90105-06260
90105-08077
90105-08291
90105-T0013
90105-T0045
90105-T0076
90119-06620
90168-50040
