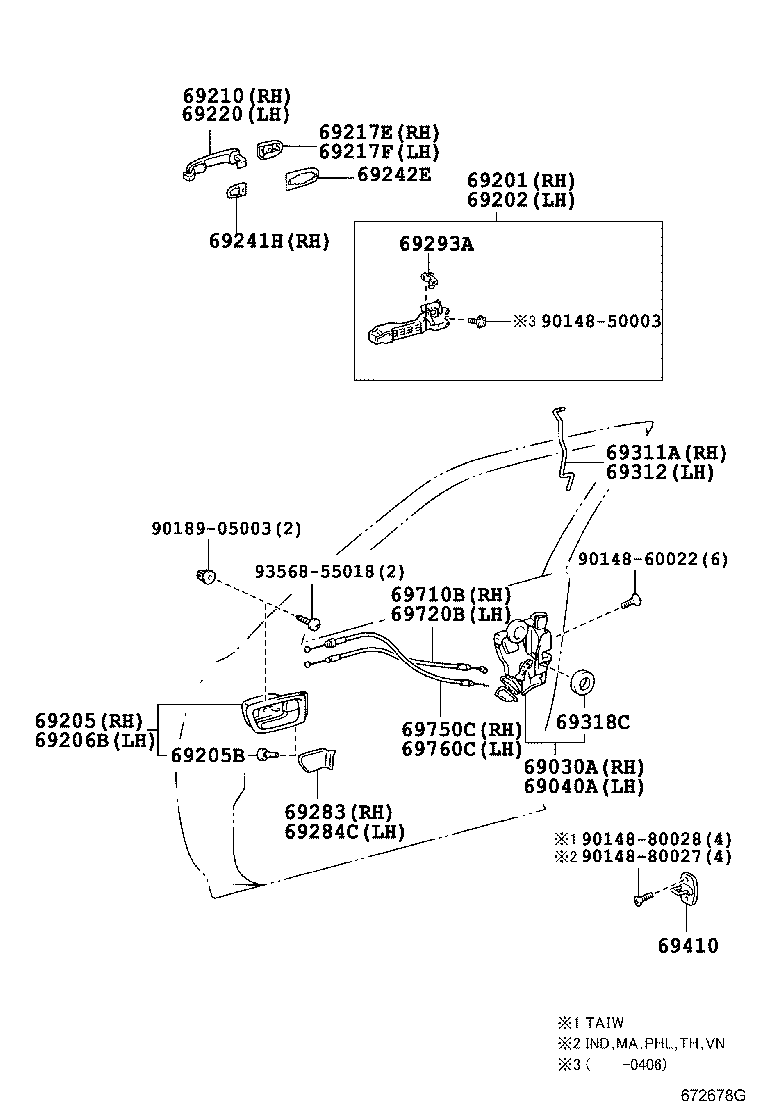

Toyota Camry MCV30 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-06060	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69030-06060	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-06060	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69040-06060	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
69201 - HANDLE SUB-ASSY, DOOR OUTSIDE, RH
69201-06020	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
69201-06020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH
69202-06020	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
69202-06020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-33060C0	MCV30..TAIW W(ILLUMINATION LAMP),BLACK,TRIM2#	04/2004 - 05/2006	1
69205-33040B0	ACV31,MCV30..(20E,20G,30G,30V)..TAIW DK.CHARCOAL,TRIM1#	03/2002 - 04/2004	1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-33050C0	MCV30..TAIW W(ILLUMINATION LAMP),BLACK,TRIM2#	04/2004 - 05/2006	1
69206-33040B0	ACV31,MCV30..(20E,20G,30G,30V)..TAIW DK.CHARCOAL,TRIM1#	03/2002 - 04/2004	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-02070	ACV31,MCV30..(20G,30G,30V)..TAIW PLATED	03/2002 - 04/2004	1
69210-02070	ACV31,MCV30..(20G,30G,30V)..TAIW PLATED	04/2004 - 05/2006	1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-12010	ACV31,MCV30..(20G,30G,30V)..TAIW *CR	03/2002 - 04/2004	1
69217-12010	ACV31,MCV30..(20G,30G,30V)..TAIW *CR	04/2004 - 05/2006	1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-12050	ACV31,MCV30..(20G,30G,30V)..TAIW *CR	04/2004 - 05/2006	1
69217-12050	ACV31,MCV30..(20G,30G,30V)..TAIW *CR	03/2002 - 04/2004	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-02070	ACV31,MCV30..(20G,30G,30V)..TAIW PLATED	03/2002 - 04/2004	1
69210-02070	ACV31,MCV30..(20G,30G,30V)..TAIW PLATED	04/2004 - 05/2006	1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-42020	ACV31,MCV30..TAIW	03/2002 - 04/2004	2
69241-42020	ACV31,MCV30..TAIW	04/2004 - 05/2006	2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-42010	ACV31,MCV30..TAIW	03/2002 - 04/2004	2
69242-42010	ACV31,MCV30..TAIW	04/2004 - 05/2006	2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-33030C0	MCV30..TAIW W(ILLUMINATION LAMP),BLACK,TRIM2#	04/2004 - 05/2006	1
69283-33020B0	ACV31,MCV30..TAIW DK.CHARCOAL,TRIM1#	03/2002 - 04/2004	1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-33020B0	ACV31,MCV30..TAIW DK.CHARCOAL,TRIM1#	03/2002 - 04/2004	1
69284-33030C0	MCV30..TAIW W(ILLUMINATION LAMP),BLACK,TRIM2#	04/2004 - 05/2006	1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030	ACV31,MCV30..TAIW RH	03/2002 - 04/2004	1
69293-12030	ACV31,MCV30..TAIW RH	04/2004 - 05/2006	1
69293-12040	ACV31,MCV30..TAIW LH	03/2002 - 04/2004	1
69293-12040	ACV31,MCV30..TAIW LH	04/2004 - 05/2006	1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69311-06030	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69312-06030	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-06010	ACV31,MCV30..TAIW	03/2002 - 04/2004	2
69410-06010	ACV31,MCV30..TAIW	04/2004 - 12/2999	2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69710-06030	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-06030	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69710-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-06020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
69750-06020	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-06020	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
69750-06020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
Common parts
90148-50003
90148-60022
90148-80027
90148-80028
90189-05003
93568-55018

MCV30L-JEAGKR (2004)

(0203- )
