MCV30L-JEAGKR (2004)
Toyota Camry

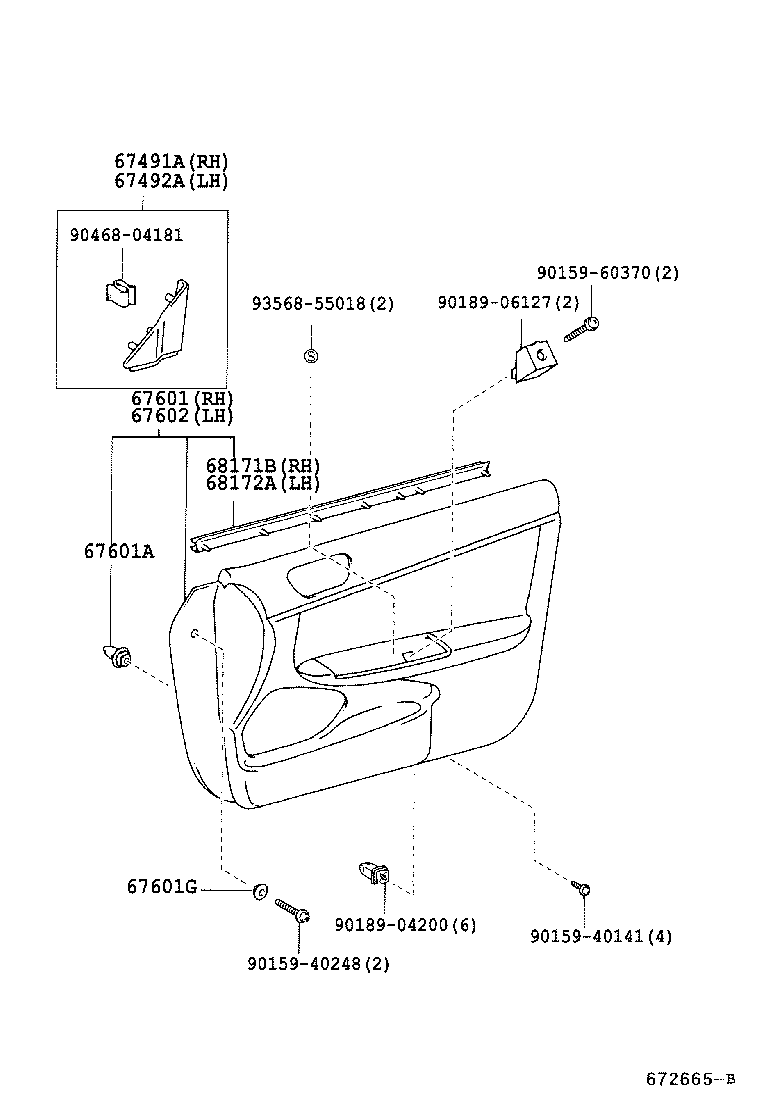

ILLUST NO. 1 OF 2(0203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-06440E1 |
ACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN) SANDAL WOOD,TRIM4# |
1 | ||
| 67610-06440B1 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW DK.CHARCOAL,TRIM1# |
1 | ||
| 67610-06580C0 |
MCV30..TAIW LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2# |
1 | ||
| 67610-06580E0 |
MCV30..TAIW LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01746B6 |
ACV31,MCV30..TAIW DK.CHARCOAL,TRIM1# |
2 | ||
| 90950-0174622 |
ACV31,MCV30..TAIW BLACK,TRIM2# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-06280E1 |
ACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN) SANDAL WOOD,TRIM4# |
1 | ||
| 67620-06280B1 |
ACV31,MCV30..(20E,20G,30G,30V)..TAIW DK.CHARCOAL,TRIM1# |
1 | ||
| 67620-06490C0 |
MCV30..TAIW LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2# |
1 | ||
| 67620-06490E0 |
MCV30..TAIW LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-06020 |
ACV3#,MCV30 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-06020 |
ACV3#,MCV30 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40248 | ||||
| 90159-60370 | ||||
| 90189-04200 | ||||
| 90189-06127 | ||||
| 90468-04181 | ||||
| 93568-55018 | ||||

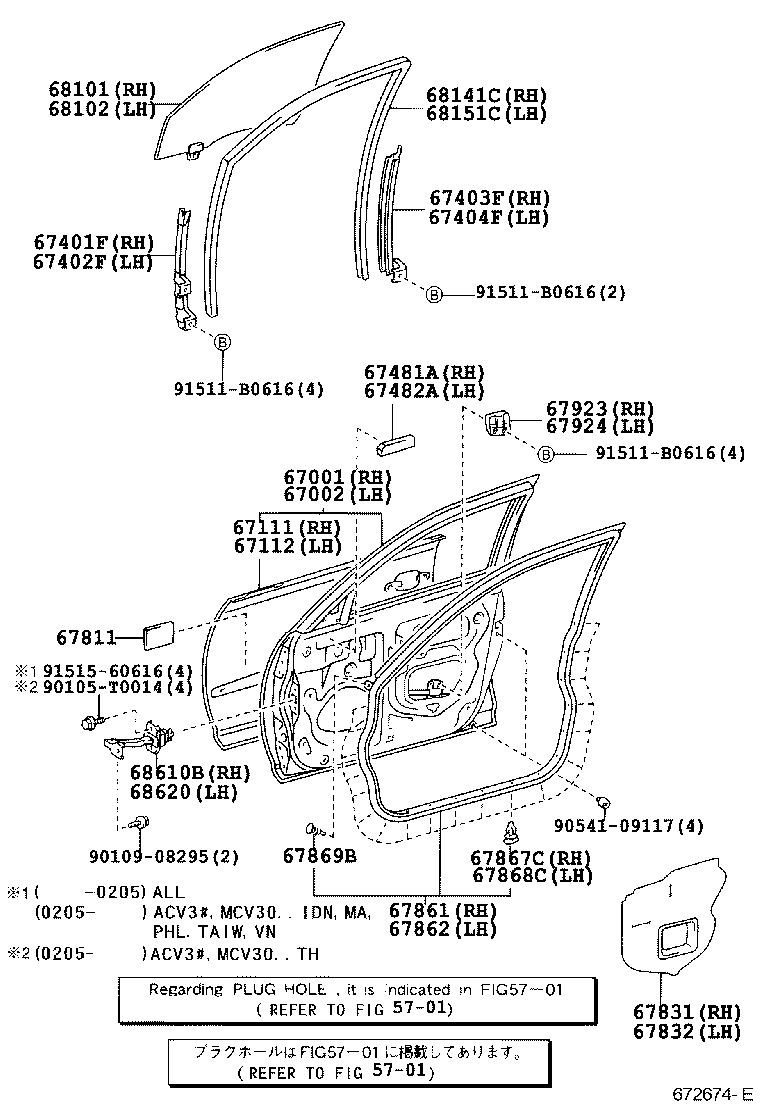

ILLUST NO. 2 OF 2(0203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-06061 |
ACV31,MCV30..TAIW |
1 | ||
| 67001-06060 |
ACV3#,MCV30..LHD |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-06061 |
ACV31,MCV30..TAIW |
1 | ||
| 67002-06060 |
ACV3#,MCV30..LHD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-06060 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-06050 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-06020 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 67403-06020 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-06020 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 67404-06020 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-06051 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67831-06050 |
ACV3#,MCV30 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-06050 |
ACV3#,MCV30 |
1 | ||
| 67832-06051 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67861-06031 |
ACV3#,MCV30 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67862-06031 |
ACV3#,MCV30 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
19 | ||
| 67867-12150 |
ACV3#,MCV30..(IDN,PHL,TAIW,VN)..(4FC,5F) |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-06060 |
MCV30..TAIW;ACV3#..(20E,20G,24G)..(TAIW,TH)..4FC *TT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-06060 |
MCV30..TAIW;ACV3#..(20E,20G,24G)..(TAIW,TH)..4FC *TT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 68141-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 68141-06090 |
ACV31,MCV30..TAIW |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 68151-06080 |
ACV31,MCV30..TAIW |
1 | ||
| 68151-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 68610-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 68620-06030 |
ACV31,MCV30..TAIW |
1 | ||
| Common parts | ||||
| 90105-T0014 | ||||
| 90109-08295 | ||||
| 90541-09117 | ||||
| 91511-B0616 | ||||
| 91515-60616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
