MCV30L-JEAGKR (2004)
Toyota Camry

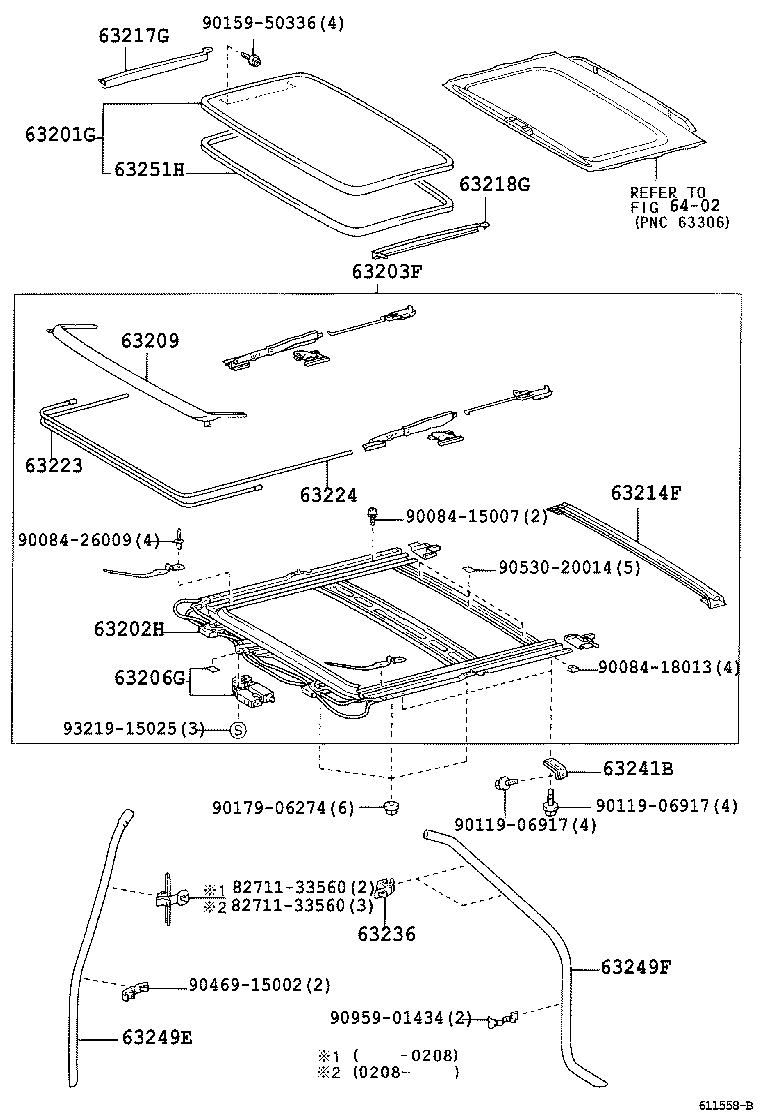

ILLUST NO. 2 OF 2(0203- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-06050 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63201-06050 |
ACV31,MCV30..TAIW |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 63202-06020 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-06020B0 |
ACV31,MCV30..(20G,30G,30V)..TAIW LT.GRAY,TRIM1# |
1 | ||
| 63203-06020A0 |
ACV31,MCV30..TAIW IVORY,TRIM0# |
1 | ||
| 63203-06020A0 |
ACV31,MCV30..(20G,30G,30V)..TAIW IVORY,TRIM4# |
1 | ||
| 63203-06020B0 |
ACV31,MCV30..TAIW LT.GRAY,TRIM2# |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-AA020 |
ACV31,MCV30..TAIW |
1 | ||
| 63260-AA020 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-06010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63209-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-06010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63214-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-06020 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63217-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 63218-06010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63224-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 63224-06010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-06010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63224-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33020 |
ACV31,MCV30..TAIW |
4 | ||
| 63236-33020 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
4 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-06020 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
4 | ||
| 63241-06020 |
ACV31,MCV30..TAIW |
4 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-06030 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
2 | ||
| 63249-06030 |
ACV31,MCV30..TAIW |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-06040 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
2 | ||
| 63249-06040 |
ACV31,MCV30..TAIW |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-06030 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63251-06030 |
ACV31,MCV30..TAIW |
1 | ||
| Common parts | ||||
| 82711-33560 | ||||
| 90084-15007 | ||||
| 90084-18013 | ||||
| 90084-26009 | ||||
| 90119-06917 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90469-15002 | ||||
| 90530-20014 | ||||
| 90959-01434 | ||||
| 93219-15025 | ||||
| Linked diagrams | ||||
| 6402 | ||||
ILLUST NO. 1 OF 2(0203- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
ACV3#,MCV30..IDN,MA,PHL,TAIW,VN |
2 | ||
| 56115-30100 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN (J) |
2 | ||
| 56115-02020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN (L) |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-02020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN (L) |
2 | ||
| 56116-22050 |
ACV3#,MCV30..IDN,MA,PHL,TAIW,VN |
2 | ||
| 56116-22050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN (J) |
2 | ||
| 63111 - PANEL, ROOF | ||||
| 63104-06900 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 63104-06900 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63111-06913 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63104-06900 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 63104-06900 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63111-06913 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-33010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63118-33010 |
ACV31,MCV30..TAIW |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-33010 |
ACV31,MCV30..(20G,30G,30V)..TAIW |
1 | ||
| 63118-33010 |
ACV31,MCV30..TAIW |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-06020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-06020 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 63138-06020 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-06020 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 63138-06020 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-33080 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63144-33080 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-33080 |
ACV31,MCV30..TAIW W(MOON ROOF) |
1 | ||
| 63144-33080 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(MOON ROOF) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-06100 |
MCV30..30V..TAIW |
1 | ||
| 64101-06100 |
MCV30..30V..TAIW |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-06060 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(AIR PURIFIER) |
1 | ||
| 64165-06060 |
ACV31,MCV30..(20G,30G,30V)..TAIW W(AIR PURIFIER) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-06150 |
MCV30..TAIW;ACV3#..(TAIW,TH)..4FC *TT,T=3.5,GREEN |
1 | ||
| 64811-06140 |
ACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F) *HSEA,T=3.5,GREEN |
1 | ||
| Common parts | ||||
| 90119-T0113 | ||||
| 90179-06159 | ||||
| 91111-50608 | ||||
| 91631-40612 | ||||
