MCV30L-JEAGKR (2004)
Toyota Camry

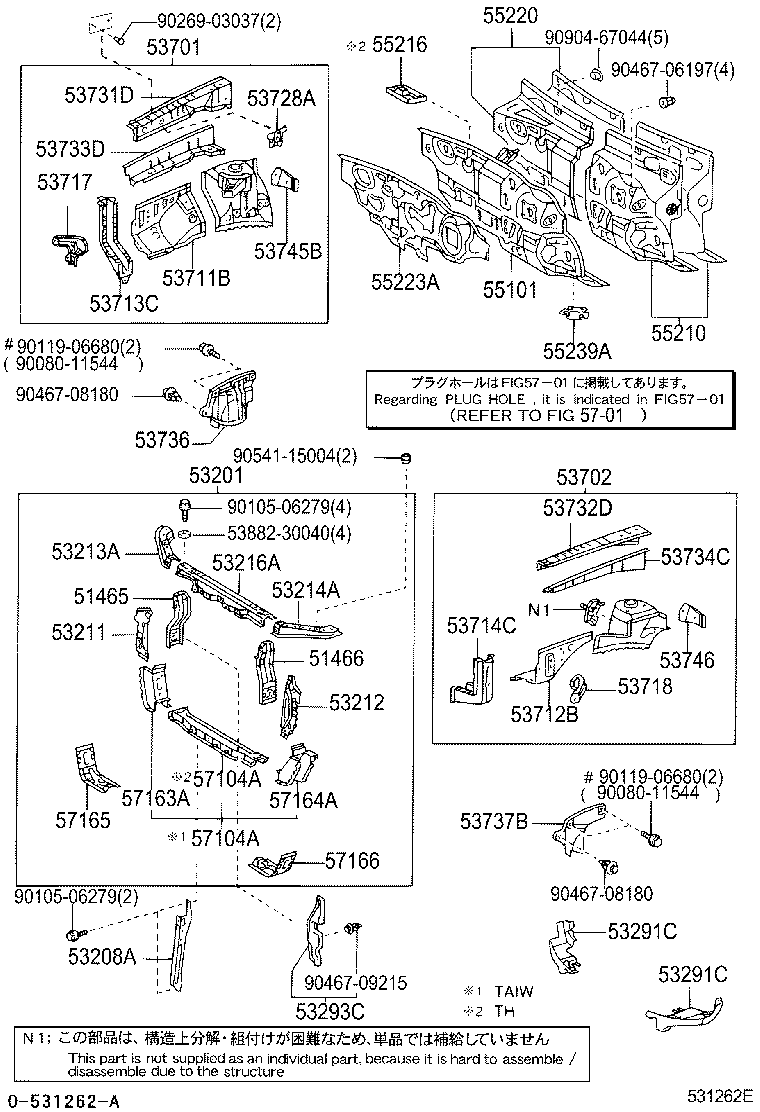

(0203-0405)4FC,5F ; (0405-0407)MA,PHL,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51465 - BRACE, RADIATOR SUPPORT, UPPER RH | ||||
| 51465-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 51466 - BRACE, RADIATOR SUPPORT, UPPER LH | ||||
| 51466-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-33070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-33070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-06060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-33020 |
ACV31,MCV30..TAIW |
1 | ||
| 53293-33020 |
ACV31,MCV30..TAIW |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-33060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| 53729-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-33050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53731-33080 |
ACV3#,MCV30 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53732-33070 |
ACV3#,MCV30 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-28020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53746-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-06230 |
MCV30..TAIW |
1 | ||
| 55101-06230 |
MCV30..TAIW |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 55210-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-06100 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 55220-06100 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-06050 |
ACV30..PHL;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57161-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57104-33040 |
ACV31,MCV30..TAIW |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57161-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57104-33040 |
ACV31,MCV30..TAIW |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| Common parts | ||||
| 53882-30040 | ||||
| 90080-11544 | ||||
| 90105-06279 | ||||
| 90119-06680 | ||||
| 90269-03037 | ||||
| 90467-06197 | ||||
| 90467-08180 | ||||
| 90467-09215 | ||||
| 90541-15004 | ||||
| 90904-67044 | ||||
| Linked diagrams | ||||
| 5701 | ||||

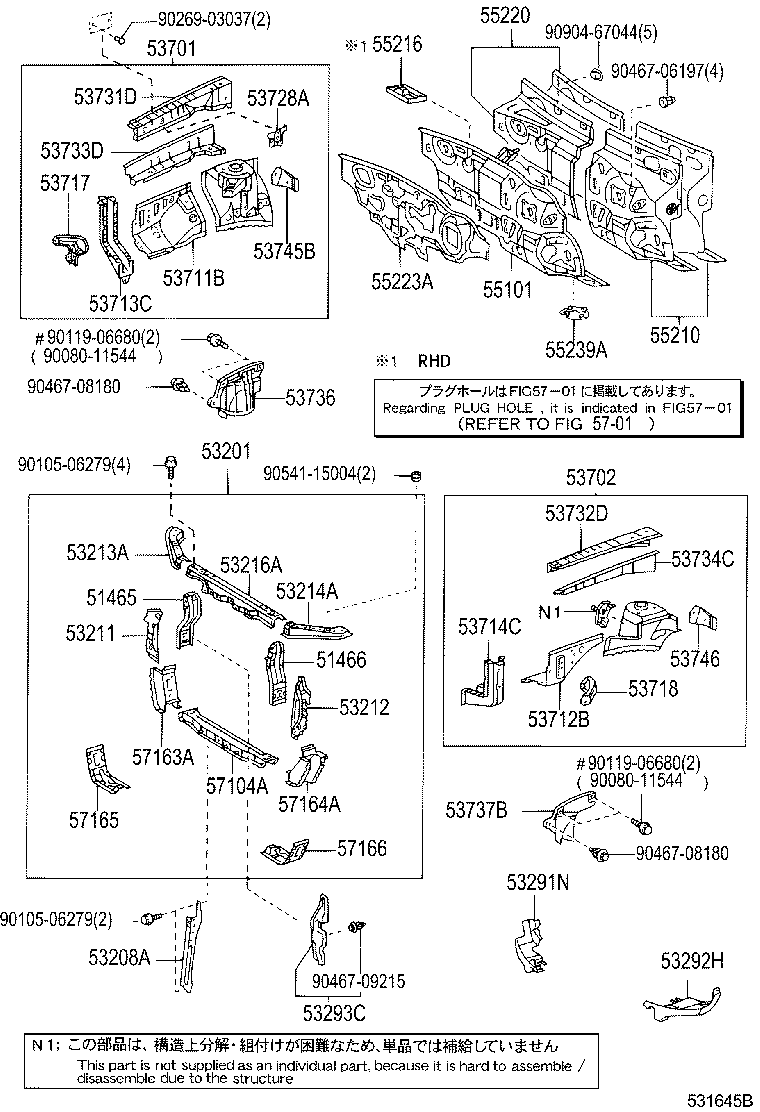

(0405-0407)TAIW,TH ; (0407- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51465 - BRACE, RADIATOR SUPPORT, UPPER RH | ||||
| 51465-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 51466 - BRACE, RADIATOR SUPPORT, UPPER LH | ||||
| 51466-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-33070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-33070 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-06060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53291N - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-06050 |
ACV31,MCV30..TAIW |
1 | ||
| 53292H - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-06070 |
ACV31,MCV30..TAIW |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-33020 |
ACV31,MCV30..TAIW |
1 | ||
| 53293-33020 |
ACV31,MCV30..TAIW |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-33060 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-06030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| 53729-33020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-33050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53731-33080 |
ACV3#,MCV30 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53732-33070 |
ACV3#,MCV30 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-28020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53746-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-06230 |
MCV30..TAIW |
1 | ||
| 55101-06230 |
MCV30..TAIW |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 55210-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-06100 |
ACV3#,MCV30..LHD..(4FC,5F) |
1 | ||
| 55220-06100 |
ACV30..LHD;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-06050 |
ACV30..PHL;MCV30..5FC;ACV31..TAIW |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57161-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57104-33040 |
ACV31,MCV30..TAIW |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-33030 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| Common parts | ||||
| 90080-11544 | ||||
| 90105-06279 | ||||
| 90119-06680 | ||||
| 90269-03037 | ||||
| 90467-06197 | ||||
| 90467-08180 | ||||
| 90467-09215 | ||||
| 90541-15004 | ||||
| 90904-67044 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
