MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

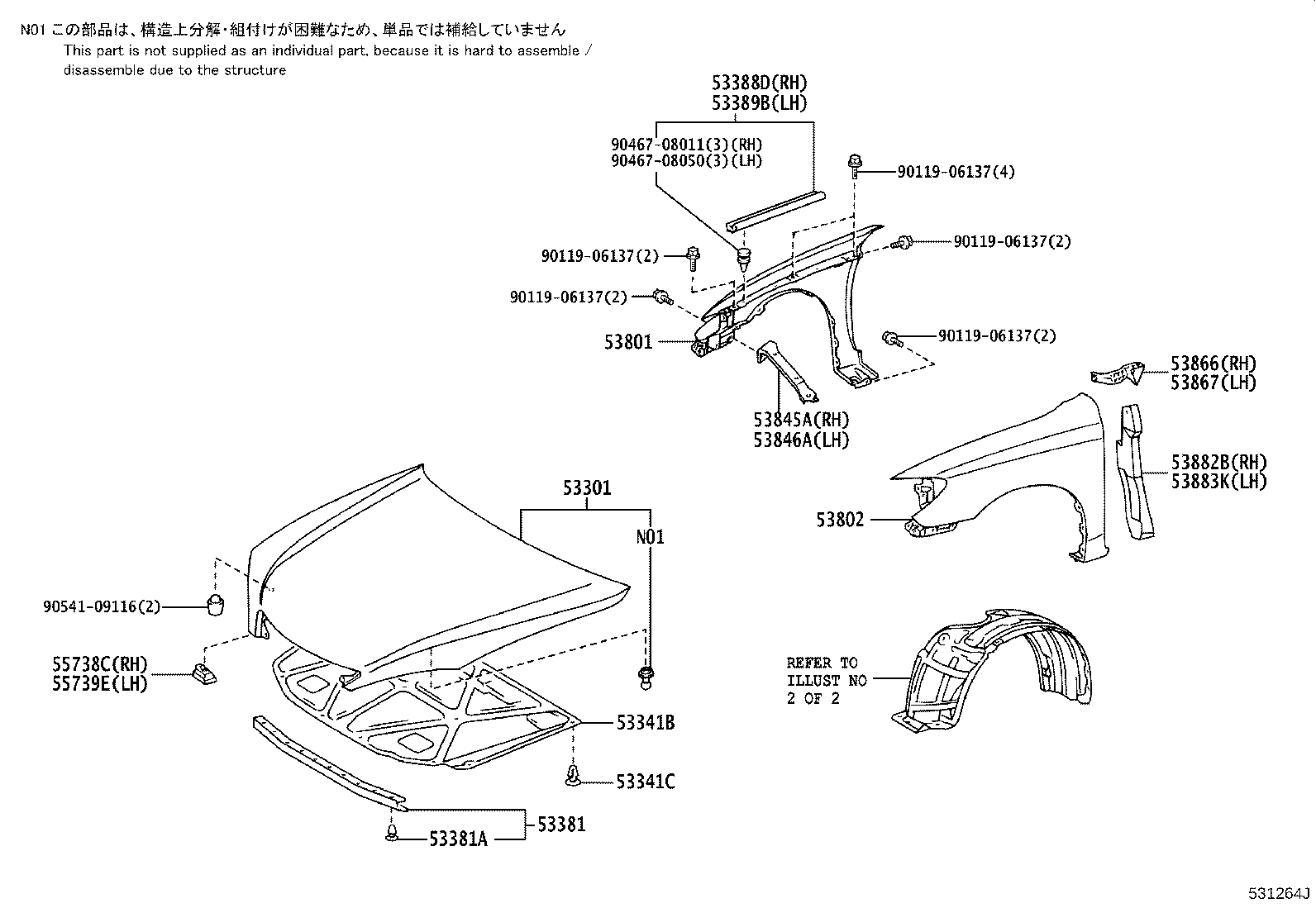

ILLUST NO. 1 OF 2(0203- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53388D 53389B 53801 53802 53845A 53846A 53866 53867 53882B 53883K 55738C 55739E 9011906137 9011906137 9011906137 9011906137 9011906137 9046708011 9046708050 9054109116
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-06060

MCV30..30V..TAIW

 1
53301-06040

ACV3#,MCV30..LHD

 1
53341B - INSULATOR, HOOD
53341-06090

ACV31,MCV30..TAIW

 1
53341-06070

ACV31,MCV30..TAIW

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09030

ACV31,MCV30..TAIW

 13
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-06030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46010

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 10
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-33030

ACV31,MCV30..TAIW

(J)

 1
53388-06010

ACV31,MCV30..TAIW

(L)

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-06010

ACV31,MCV30..TAIW

(L)

 1
53389-33040

ACV31,MCV30..TAIW

(J)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-06080

ACV3#,MCV30..LHD

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-33040

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-33040

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53882B - SEAL, FRONT FENDER, RH
53882-33020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53883K - SEAL, FRONT FENDER, LH
53883-33020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
55738C - STOPPER, HOOD, RH
55738-33030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
55739E - STOPPER, HOOD, LH
55739-33030

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
Common parts
90119-06137
90467-08011
90467-08050
90541-09116

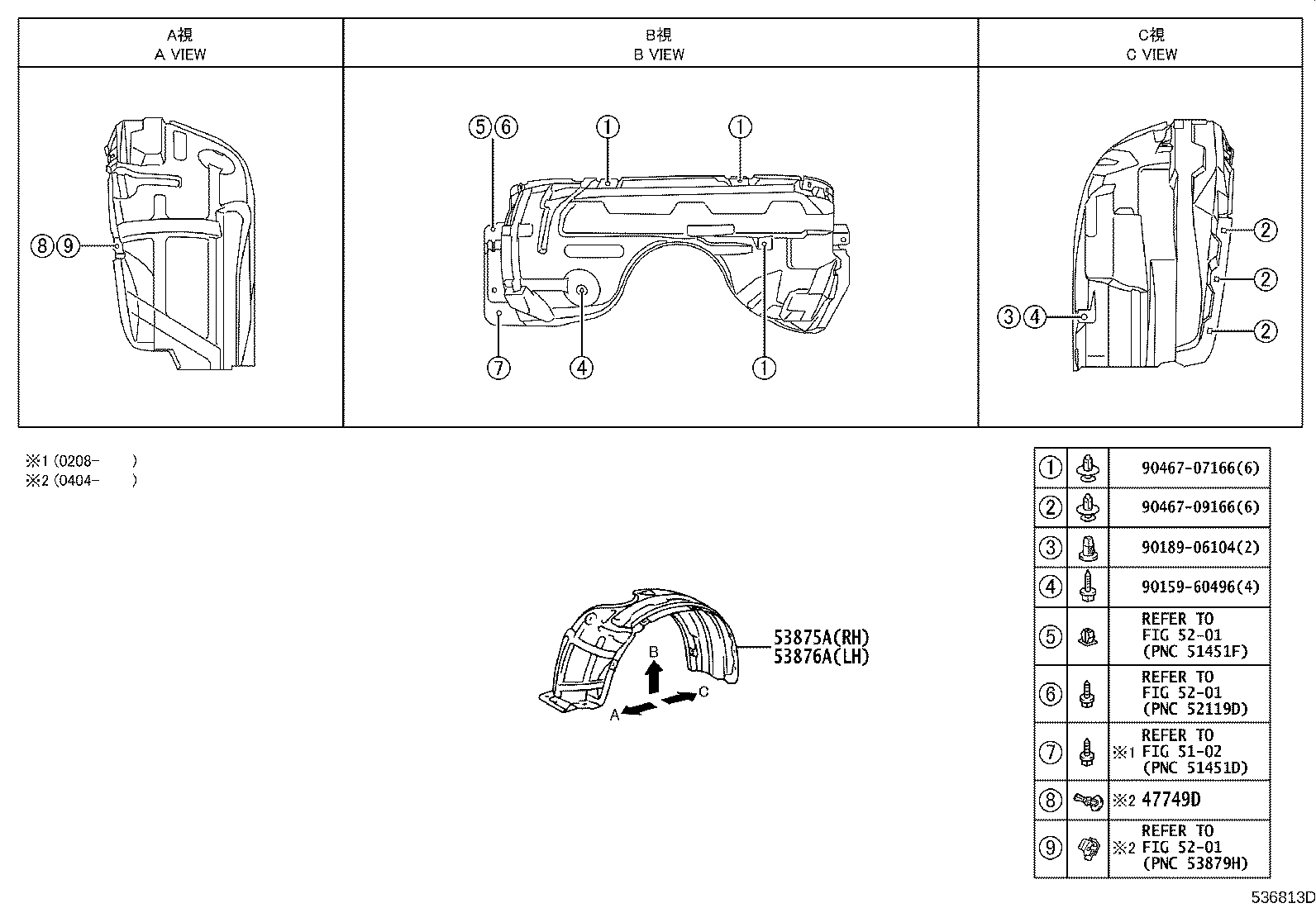

ILLUST NO. 2 OF 2(0203- )

Click highlighted areas on diagram

diagram 47749D 5102 5201 5201 5201 53875A 53876A 9015960496 9018906104 9046707166 9046709166
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-06050

ACV31,MCV30..TAIW

 1
53875-06051

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53876A - LINER, FRONT FENDER, LH
53876-06051

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53876-06050

ACV31,MCV30..TAIW

 1
Common parts
90159-60496
90189-06104
90467-07166
90467-09166
Linked diagrams
5102
5201
