MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

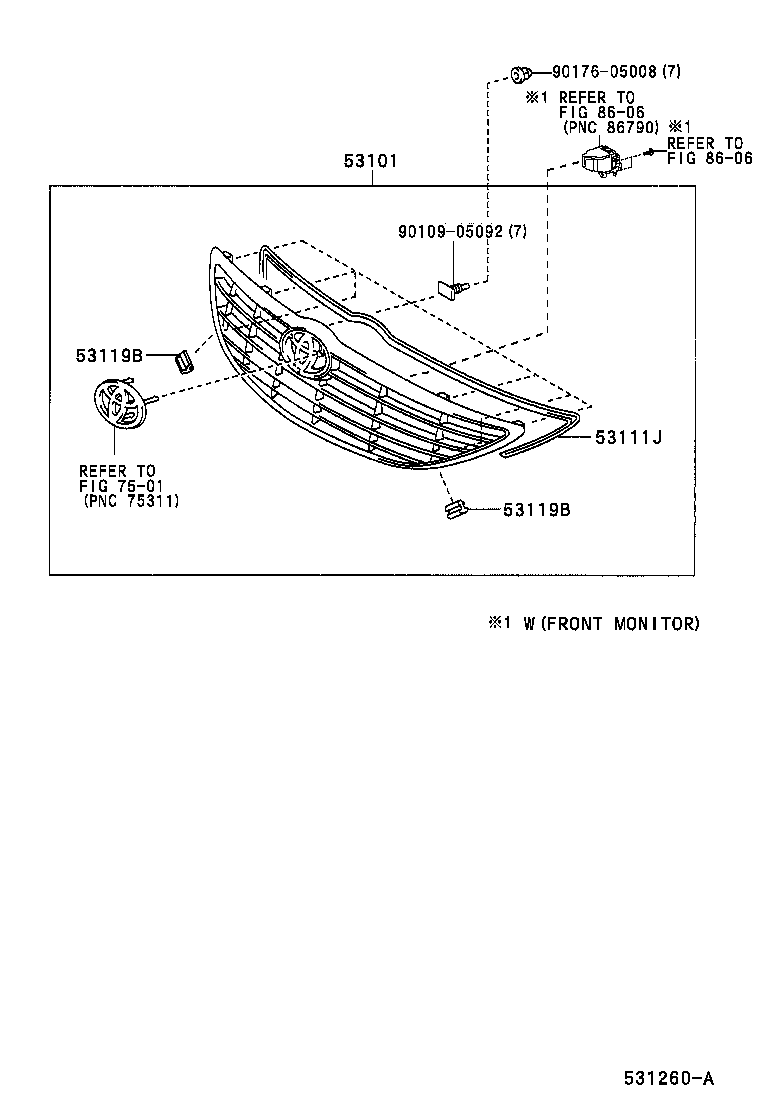

Click highlighted areas on diagram

diagram 53101 53111J 53119B 53119B 7501 8606 8606 9010905092 9017605008
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-06030

MCV30..30V..TAIW

PLATED,W(FRONT MONITOR)

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-06010

ACV31,MCV30..TAIW

 1
53119-06010

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-33080

ACV31,MCV30..TAIW

 2
53119-33080

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-33080

ACV31,MCV30..TAIW

 2
53119-33080

MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN

 2
Common parts
90109-05092
90176-05008
Linked diagrams
7501
8606
