MCV30L-JEAGKR (2004)
5201 - FRONT BUMPER & BUMPER STAY

MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006

Engine 1MZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

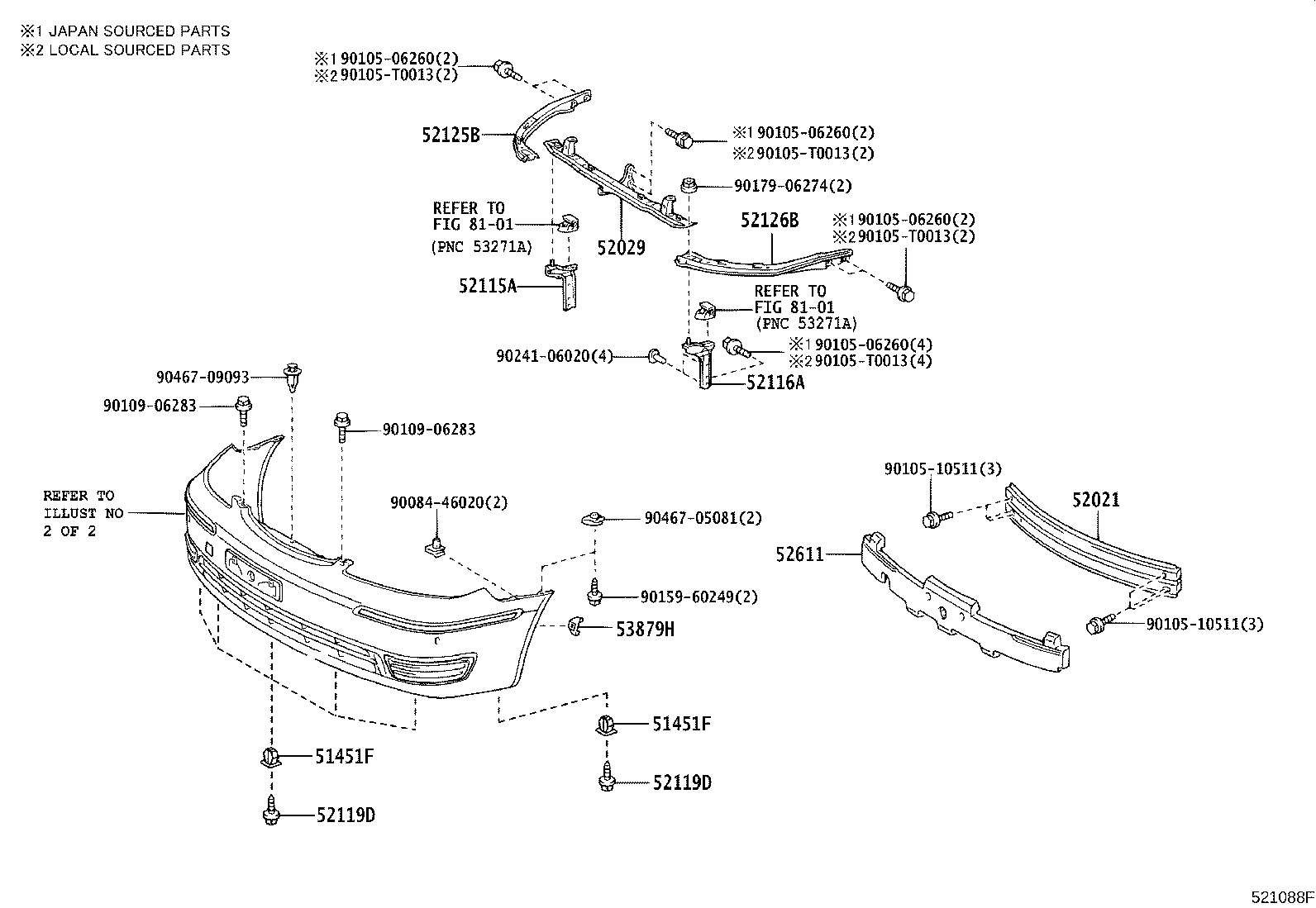

ILLUST NO. 1 OF 2(0404- )TAIW ; (0405- )TH ; (0407- )MA,PHL,VN

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-06020	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-06040	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	1
52611-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
Common parts
90084-46020
90105-06260
90105-10511
90105-T0013
90109-06283
90159-60249
90179-06274
90241-06020
90467-05081
90467-09093
Linked diagrams
8101

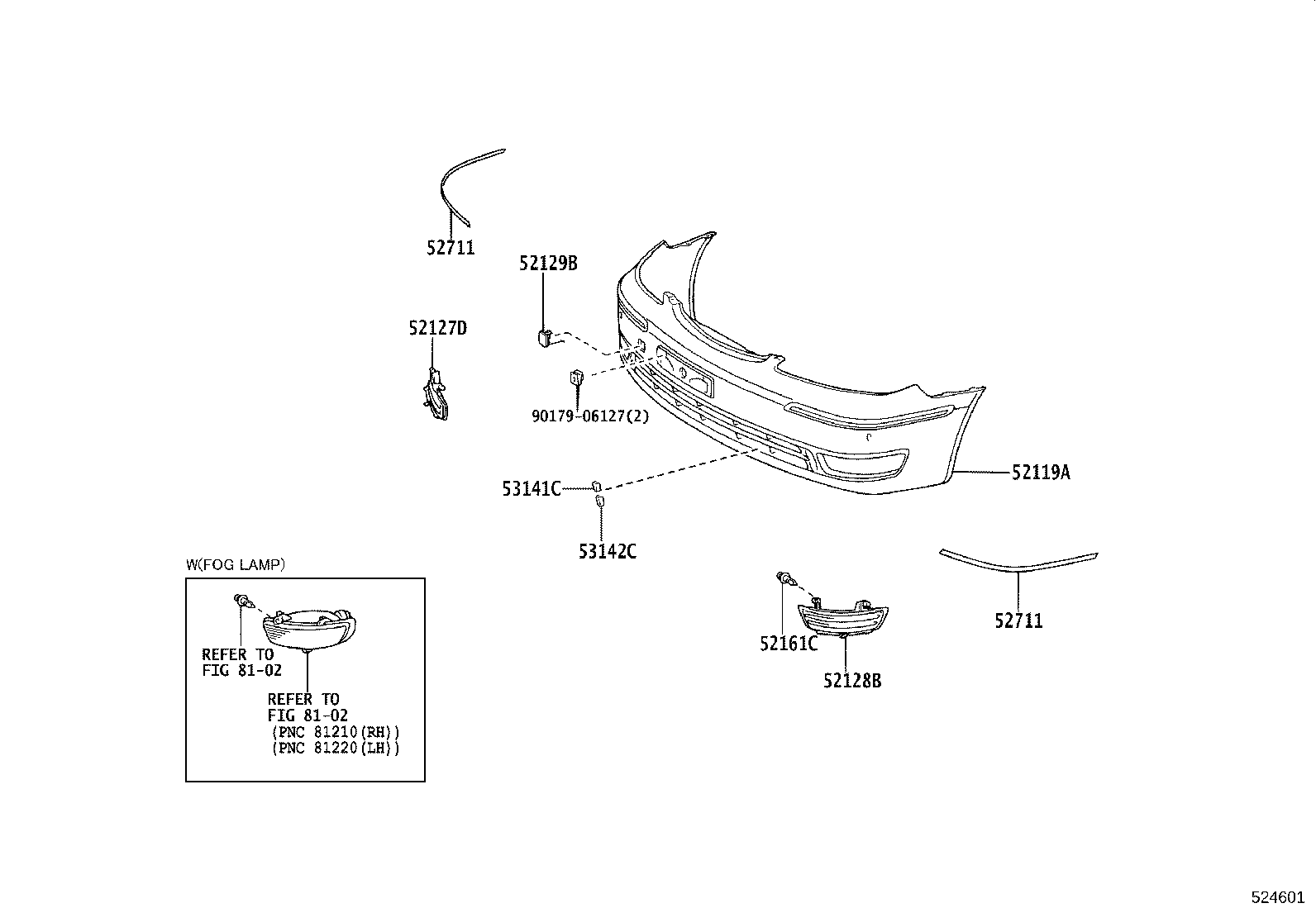

ILLUST NO. 2 OF 2(0404- )TAIW ; (0405- )TH ; (0407- )MA,PHL,VN

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
52119A - COVER, FRONT BUMPER
52119-06913	ACV31,MCV30..(20G,30G,30V)..TAIW PAINT REQ.,W(CLEARANCE SONAR & FOG LAMP)	04/2004 - 05/2006	1
52129B - COVER, FRONT BUMPER, LOWER
52129-06901	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	1
52711 - MOULDING, FRONT BUMPER
52711-06030	ACV31,MCV30..TAIW PLATED	03/2002 - 04/2004	2
52711 - MOULDING, FRONT BUMPER
52711-06030	ACV31,MCV30..TAIW PLATED	03/2002 - 04/2004	2
Common parts
90179-06127
Linked diagrams
8102
