MCV30L-JEAGKR (2004)
Toyota Camry
(0203- )

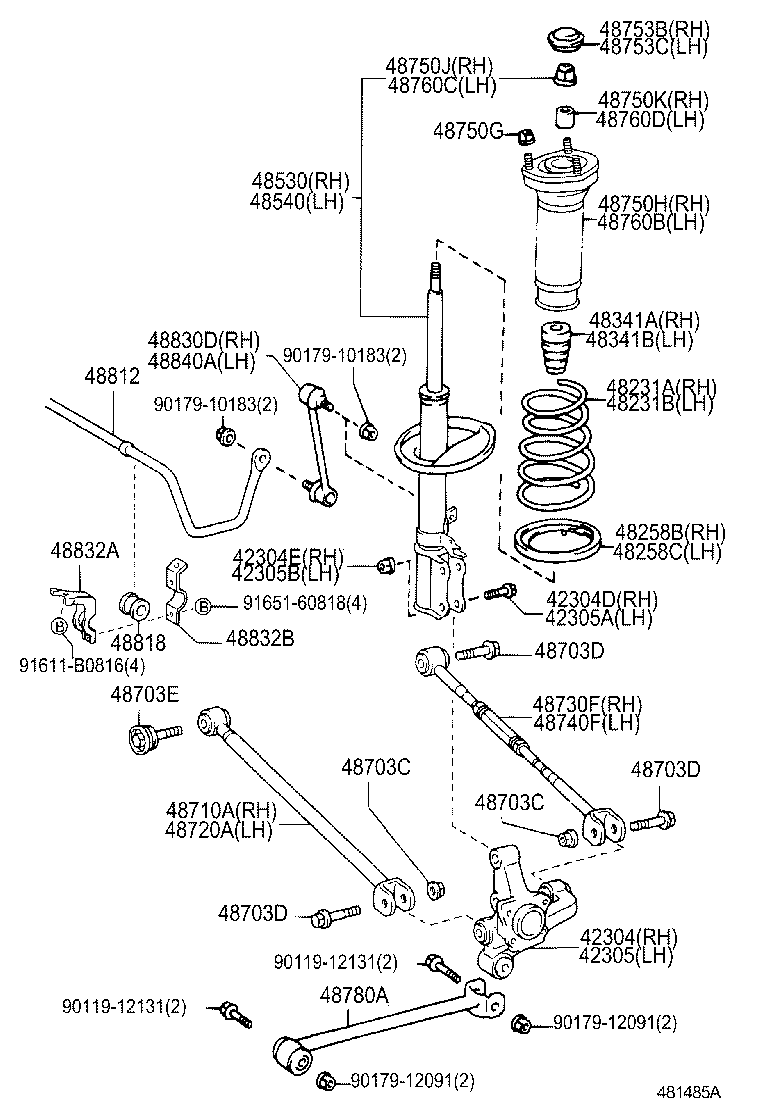

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 42304-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90178-15001 |
ACV3#,MCV30..TAIW,TH |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 42305-06110 |
ACV31,MCV30..TAIW |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90901-05001 |
ACV3#,MCV30..TAIW,TH |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90178-15001 |
ACV3#,MCV30..TAIW,TH |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-06300 |
MCV30..TAIW |
1 | ||
| 48231-06300 |
MCV30..TAIW |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-06300 |
MCV30..TAIW |
1 | ||
| 48231-06300 |
MCV30..TAIW |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 48258-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 48258-06030 |
ACV31,MCV30..TAIW |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32053 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32053 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-09510 |
ACV31,MCV30..TAIW MARK=48530-06240 |
1 | ||
| 48530-09510 |
ACV31,MCV30..TAIW MARK=48530-06240 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-09370 |
ACV31,MCV30..TAIW MARK=48540-06240 |
1 | ||
| 48540-09370 |
ACV31,MCV30..TAIW MARK=48540-06240 |
1 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90119-14079 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
6 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90119-14079 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
6 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90119-14079 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
6 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19045 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN *14-1.50PX76-36 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 48710-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 48710-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-06020 |
MCV30..30V..TAIW |
1 | ||
| 48730-06020 |
ACV31,MCV30..TAIW |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 48740-06010 |
ACV31,MCV30..TAIW |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-08007 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-06070 |
ACV31,MCV30..TAIW |
1 | ||
| 48750-06090 |
ACV31,MCV30..TAIW |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-14001 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-33010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-06090 |
ACV31,MCV30..TAIW |
1 | ||
| 48760-06070 |
ACV31,MCV30..TAIW |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-14001 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
ACV3#,MCV30..TAIW,TH |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-06010 |
ACV31,MCV30..TAIW |
2 | ||
| 48780-06010 |
ACV31,MCV30..TAIW |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-06070 |
MCV30..TAIW |
1 | ||
| 48812-06070 |
MCV30..TAIW |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-06180 |
ACV31..RHD;MCV30..VN..5FC;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-48010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-33040 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-33050 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-48010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| Common parts | ||||
| 90119-12131 | ||||
| 90179-10183 | ||||
| 90179-12091 | ||||
| 91611-B0816 | ||||
| 91651-60818 | ||||
