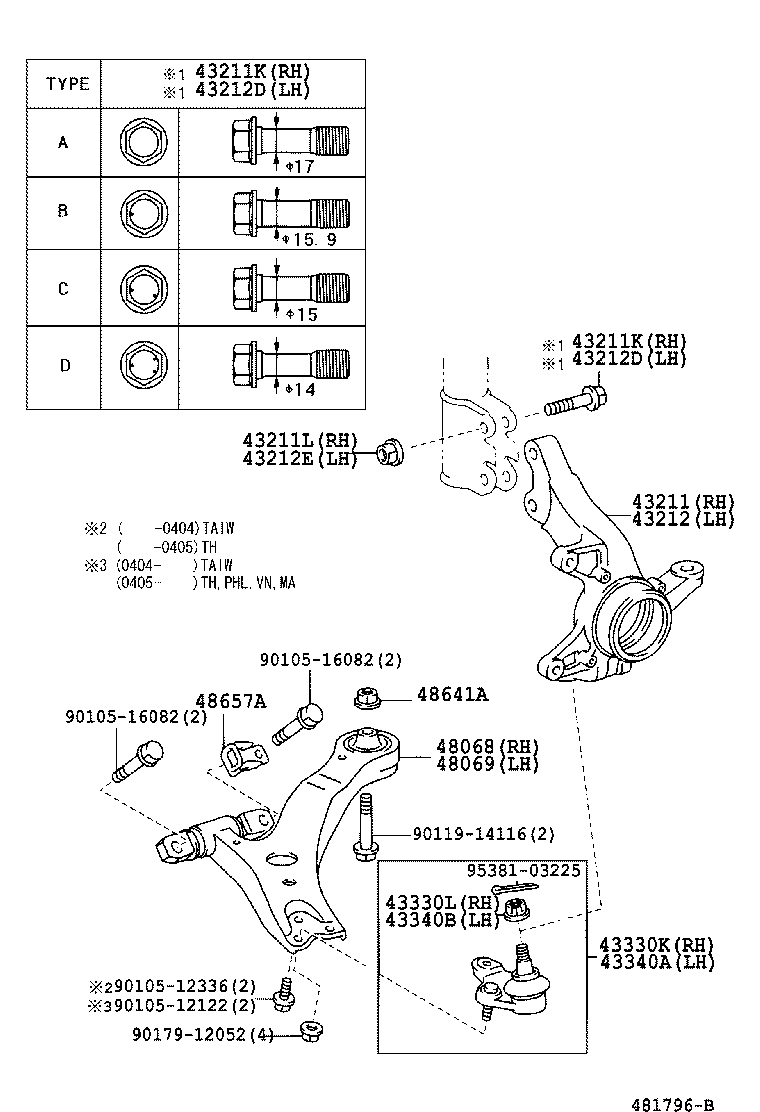

Toyota Camry MCV30 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43211-06160	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009	ACV31,MCV30..TAIW OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17011	ACV31,MCV30..TAIW OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17010	ACV31,MCV30..TAIW OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009	ACV31,MCV30..TAIW OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17011	ACV31,MCV30..TAIW OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17010	ACV31,MCV30..TAIW OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	2
43212 - KNUCKLE, STEERING, LH
43212-06200	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17011	ACV31,MCV30..TAIW OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17010	ACV31,MCV30..TAIW OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
90105-17009	ACV31,MCV30..TAIW OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17011	ACV31,MCV30..TAIW OD=14,TYPE D:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17010	ACV31,MCV30..TAIW OD=15,TYPE C:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
90105-17008	ACV3#,MCV30..4FC,5F OD=17,TYPE A:REFER TO ILLUSTRATION	03/2002 - 05/2004	2
90105-17009	ACV31,MCV30..TAIW OD=15.9,TYPE B:REFER TO ILLUSTRATION	03/2002 - 04/2004	1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29405	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29175	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003	ACV3#,MCV30..4FC,5F	03/2002 - 05/2004	1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-06080	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-06080	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90178-14008	ACV31,MCV30..TAIW	04/2004 - 12/2999	2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-06020	ACV31,MCV30..TAIW	03/2002 - 04/2004	2
48657-06020	MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	2
Common parts
90105-12122
90105-12336
90105-16082
90119-14116
90179-12052
95381-03225

MCV30L-JEAGKR (2004)

(0404- )TAIW ; (0405- )TH ; (0407- )MA,PHL,VN
