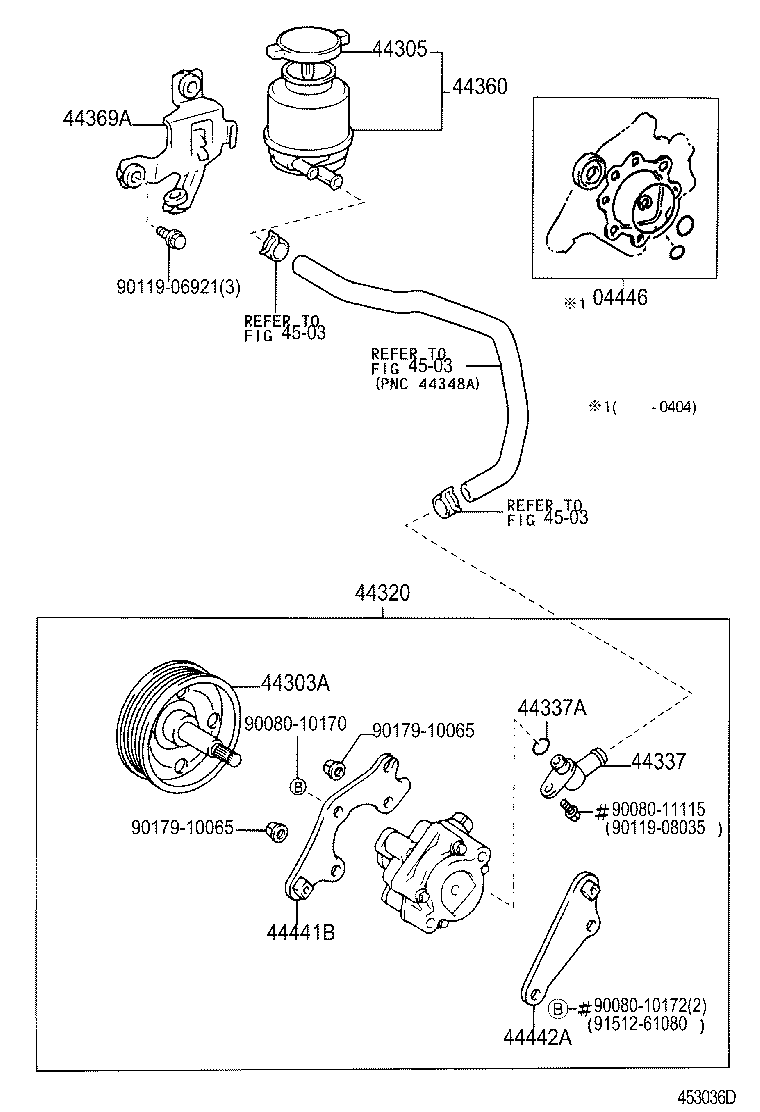

MCV30L-JEAGKR (2004)
Toyota Camry
(0203- )MCV30..TAIW
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06040 |
MCV30..TAIW (L) |
1 | ||
| 04446-34010 |
MCV30..TAIW (J) |
1 | ||
| 04446-04010 |
MCV30..TAIW |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44305-28030 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44305-02060 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-28110 |
MCV30..TAIW |
1 | ||
| 44311-28110 |
MCV30..TAIW |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
MCV30..TAIW |
1 | ||
| 90178-12003 |
MCV30..TAIW |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-33140 |
MCV30..TAIW TYPE B |
1 | ||
| 44310-06080 |
MCV30..TAIW TYPE A |
1 | ||
| 44310-06080 |
MCV30..TAIW TYPE A |
1 | ||
| 44320-33140 |
MCV30..TAIW TYPE B |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-33040 |
MCV30..TAIW TYPE B |
1 | ||
| 44337-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44337-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44337-33040 |
MCV30..TAIW TYPE B |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 |
MCV30..TAIW TYPE A |
1 | ||
| 90080-30034 |
MCV30..TAIW TYPE A |
1 | ||
| 90301-11016 |
MCV30..TAIW TYPE B |
1 | ||
| 90301-11016 |
MCV30..TAIW TYPE B |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33040 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44360-06040 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44360-33040 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-33010 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44390-06030 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44390-33010 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-28020 |
MCV30..TAIW TYPE B |
1 | ||
| 44441-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44441-28020 |
MCV30..TAIW TYPE B |
1 | ||
| 44441-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-07010 |
MCV30..TAIW TYPE A |
1 | ||
| 44442-33021 |
MCV30..TAIW TYPE B |
1 | ||
| 44442-33021 |
MCV30..TAIW TYPE B |
1 | ||
| 44442-07010 |
MCV30..TAIW TYPE A |
1 | ||
| Common parts | ||||
| 90119-06921 | ||||
| 90119-08035 | ||||
| 91512-61085 | ||||
| 91512-G1025 | ||||
| Linked diagrams | ||||
| 4503 | ||||
(0203- )MCV30..TAIW
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06040 |
MCV30..TAIW (L) |
1 | ||
| 04446-34010 |
MCV30..TAIW (J) |
1 | ||
| 04446-04010 |
MCV30..TAIW |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-06030 |
MCV30..TAIW |
1 | ||
| 44303-06030 |
MCV30..TAIW |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44305-28030 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44305-02060 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-33140 |
MCV30..TAIW TYPE B |
1 | ||
| 44310-06080 |
MCV30..TAIW TYPE A |
1 | ||
| 44310-06080 |
MCV30..TAIW TYPE A |
1 | ||
| 44320-33140 |
MCV30..TAIW TYPE B |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-33040 |
MCV30..TAIW TYPE B |
1 | ||
| 44337-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44337-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44337-33040 |
MCV30..TAIW TYPE B |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 |
MCV30..TAIW TYPE A |
1 | ||
| 90080-30034 |
MCV30..TAIW TYPE A |
1 | ||
| 90301-11016 |
MCV30..TAIW TYPE B |
1 | ||
| 90301-11016 |
MCV30..TAIW TYPE B |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33040 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44360-06040 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44360-33040 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-33010 |
ACV3#,MCV30..4FC,5F |
1 | ||
| 44390-06030 |
ACV31,MCV30..TAIW (L) |
1 | ||
| 44390-33010 |
ACV31,MCV30..TAIW (J) |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-28020 |
MCV30..TAIW TYPE B |
1 | ||
| 44441-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44441-28020 |
MCV30..TAIW TYPE B |
1 | ||
| 44441-06040 |
MCV30..TAIW TYPE A |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-07010 |
MCV30..TAIW TYPE A |
1 | ||
| 44442-33021 |
MCV30..TAIW TYPE B |
1 | ||
| 44442-33021 |
MCV30..TAIW TYPE B |
1 | ||
| 44442-07010 |
MCV30..TAIW TYPE A |
1 | ||
| Common parts | ||||
| 90080-10170 | ||||
| 90080-10172 | ||||
| 90080-11115 | ||||
| 90119-06921 | ||||
| 90119-08035 | ||||
| 90179-10065 | ||||
| 91512-61080 | ||||
| Linked diagrams | ||||
| 4503 | ||||
