Toyota Camry MCV30 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33060	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45025-33060	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-33050	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45026-33050	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45274-42010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90080-52142	ACV31,MCV30..TAIW T=1.20,UPPER	04/2004 - 12/2999	1
90080-52143	ACV31,MCV30..TAIW T=1.20,LOWER	04/2004 - 12/2999	1
90520-17042	ACV31,MCV30..TAIW T=1.20,LOWER	03/2002 - 04/2004	1
90520-17269	ACV31,MCV30..TAIW T=1.20,UPPER	03/2002 - 04/2004	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90080-52142	ACV31,MCV30..TAIW T=1.20,UPPER	04/2004 - 12/2999	1
90080-52143	ACV31,MCV30..TAIW T=1.20,LOWER	04/2004 - 12/2999	1
90520-17042	ACV31,MCV30..TAIW T=1.20,LOWER	03/2002 - 04/2004	1
90520-17269	ACV31,MCV30..TAIW T=1.20,UPPER	03/2002 - 04/2004	1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-33060	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45202-33060	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-33130	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45205-06100	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-33010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45209-33010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-33070	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45210-33070	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45250 - COLUMN ASSY, STEERING
45250-06350	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45250-06350	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45261 - SPRING, TILT STEERING JUMP UP
45261-20010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45261-20010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45271-16020	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-06030	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45280-06030	ACV31,MCV30..TAIW	04/2004 - 05/2006	1
45286 - COVER, STEERING COLUMN
45286-06907	ACV31,MCV30..(20G,30G,30V)..TAIW	04/2004 - 12/2999	1
45286-06906B1	ACV31,MCV30..TAIW DK.CHARCOAL,TRIM1#	03/2002 - 04/2004	1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0D010	ACV31,MCV30..TAIW OD=24	04/2004 - 12/2999	1
45813-0D010	ACV31,MCV30..TAIW OD=24	03/2002 - 04/2004	1
45813C - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0D020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45813-0D020	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45821-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45826 - LEVER, STEERING TILT
45826-48020	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45831-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45833-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45877A - SPACER, STEERING COLUMN BRACKET
45877-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45877-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45880A - BOLT(FOR STEERING TILT LEVER)
45832-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45832-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45893A - STOPPER, TILT STEERING PAWL
45893-0D010	ACV31,MCV30..TAIW	03/2002 - 04/2004	1
45893-0D010	ACV31,MCV30..TAIW	04/2004 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ACV31,MCV30..TAIW	04/2004 - 12/2999	2
45897-12020	ACV31,MCV30..TAIW	03/2002 - 04/2004	2
Common parts
90105-08379
90119-08560
90159-60475
90179-06206
90460-81002
91631-B0818
93568-55014

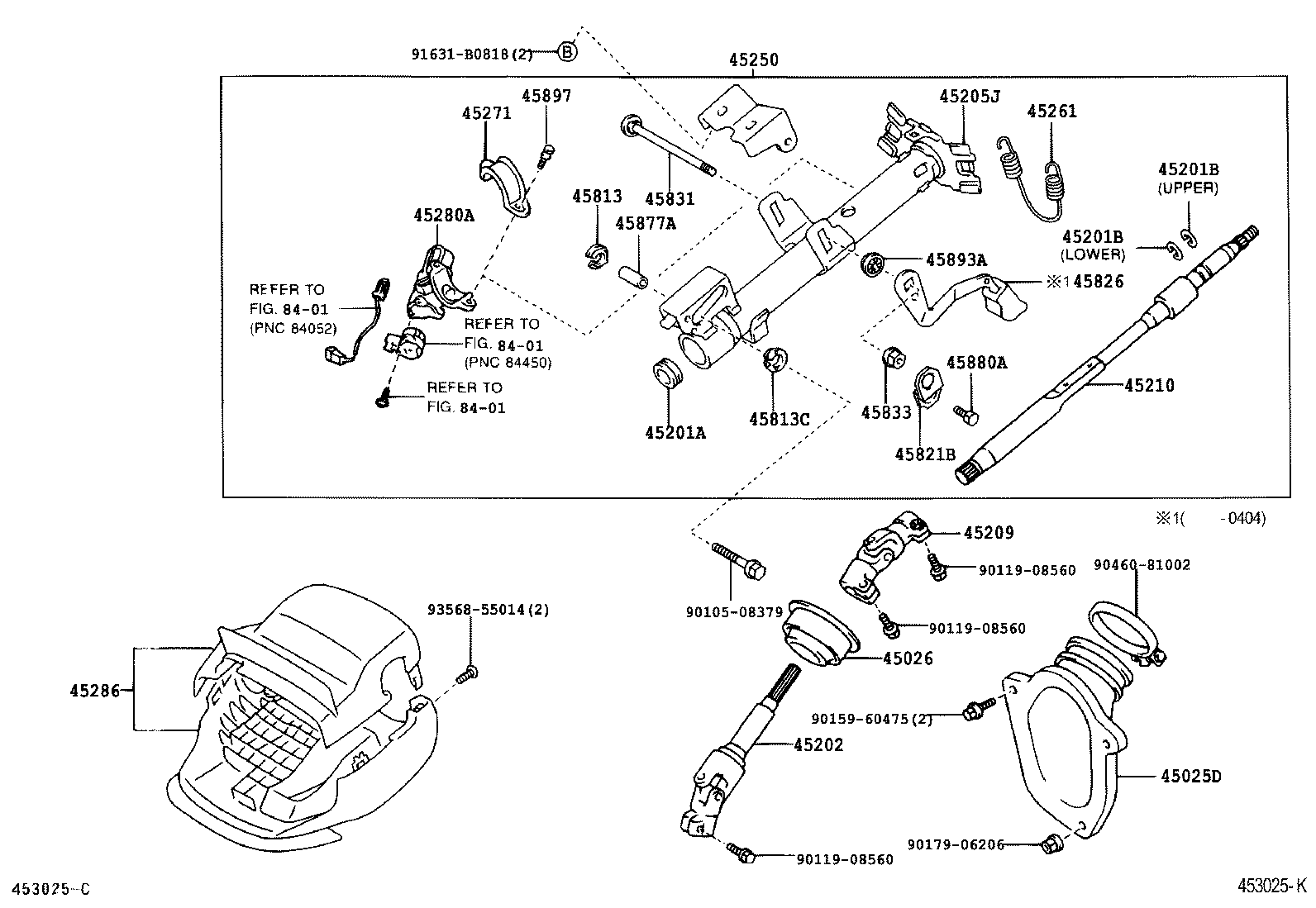

Linked diagrams
8401

MCV30L-JEAGKR (2004)

(0203- )TAIW
