MCV30L-JEAGKR (2004)
Toyota Camry

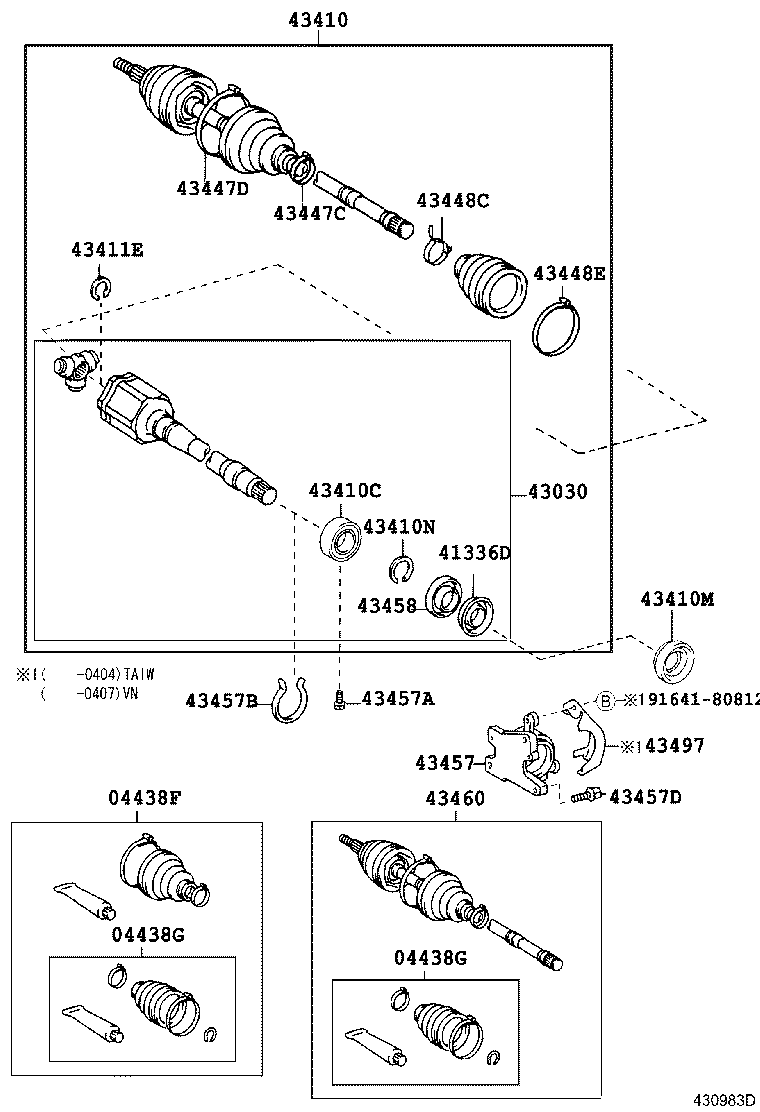

(0203- )MCV30
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-06240 |
MCV30..30V..TAIW |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06220 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06220 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 41336-8C000 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-8C001 |
MCV30..30V..TAIW |
1 | ||
| 43030-33041 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-33230 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43410-06360 |
MCV30..30V..TAIW |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-8C000 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 90363-41003 |
ACV30..5F;ACV30,MCV30..24E,24V,30G,30V |
1 | ||
| 90363-41002 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40010 |
MCV30 |
1 | ||
| 90311-40028 |
MCV30..5FC |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 9008C-52001 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 90520-38015 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43425-8C000 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-8C001 |
MCV30..30V..TAIW |
1 | ||
| 42345-48030 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-8C003 |
MCV30..30V..TAIW |
1 | ||
| 42345-44020 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 9008C-94001 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 42345-42010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) TYPE A:REFER ILLUST. |
1 | ||
| 90949-01559 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) TYPE B:REFER ILLUST. |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 9008C-94002 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 42345-12160 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-33010 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN *10-1.25PX19.8-8.3 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-8C000 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 43458-12010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09A14 |
MCV30..30V..TAIW |
1 | ||
| Common parts | ||||
| 91641-80812 | ||||

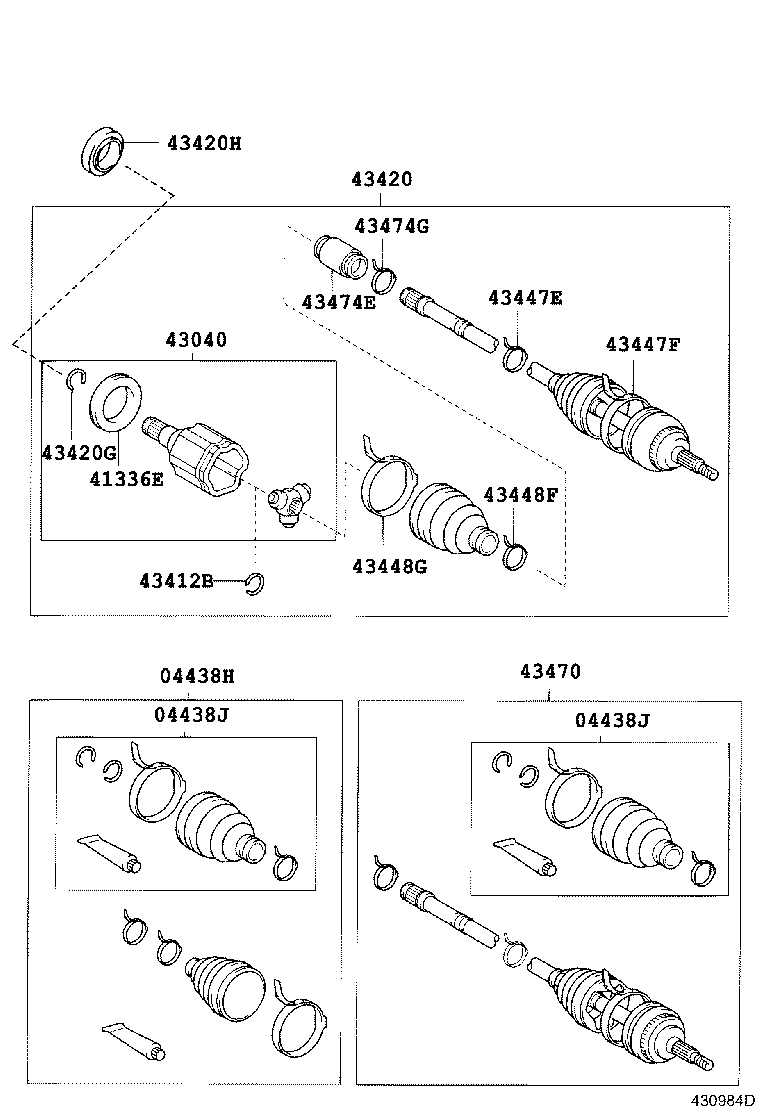

(0203- )MCV30
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-06240 |
MCV30..30V..TAIW |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06220 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06220 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-8C002 |
MCV30..30V..TAIW |
1 | ||
| 41336-28030 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28021 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43040-8C001 |
MCV30..30V..TAIW |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-8C000 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 43425-28010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-33200 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43420-06350 |
MCV30..30V..TAIW |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 9008C-52002 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50023 |
MCV30..5FC |
1 | ||
| 90311-50011 |
MCV30 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-8C003 |
MCV30..30V..TAIW |
1 | ||
| 42345-48030 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-44020 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 42345-8C001 |
MCV30..30V..TAIW |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-42010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) TYPE A:REFER ILLUST. |
1 | ||
| 9008C-94001 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 90949-01559 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) TYPE B:REFER ILLUST. |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 9008C-94002 |
ACV31,MCV30..(20J,30V)..TAIW |
1 | ||
| 42345-12160 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09A37 |
MCV30..30V..TAIW |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-28010 |
ACV31..RHD;MCV30..VN..5FC;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-14010 |
ACV30,MCV30..(TH,VN)..(5F,5FC);ACV30,MCV30..(24E,24V,30G,30V)..(PHL,TAIW,TH) |
1 | ||
