MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )

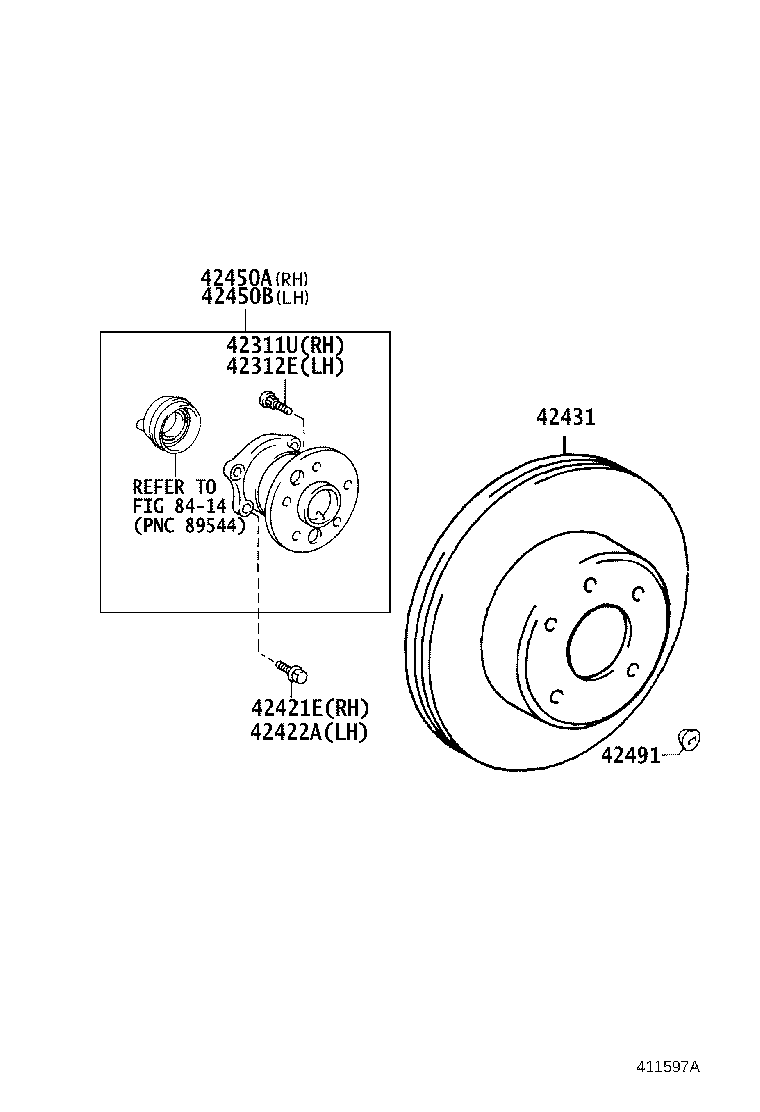

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

ACV3#,MCV30

 5
90942-02049

ACV3#,MCV30..TAIW,TH

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

ACV3#,MCV30

 5
90942-02049

ACV3#,MCV30..TAIW,TH

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10510

ACV3#,MCV30..TAIW,TH

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10510

ACV3#,MCV30..TAIW,TH

 4
42431 - DISC, REAR
42431-06060

ACV31,MCV30..TAIW

 2
42431-06060

ACV31,MCV30..TAIW

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-06040

ACV3#,MCV30

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42460-06010

ACV3#,MCV30

 1
42460-06010

ACV3#,MCV30..TAIW,TH

 1
Linked diagrams
8414
