MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0203- )ATM

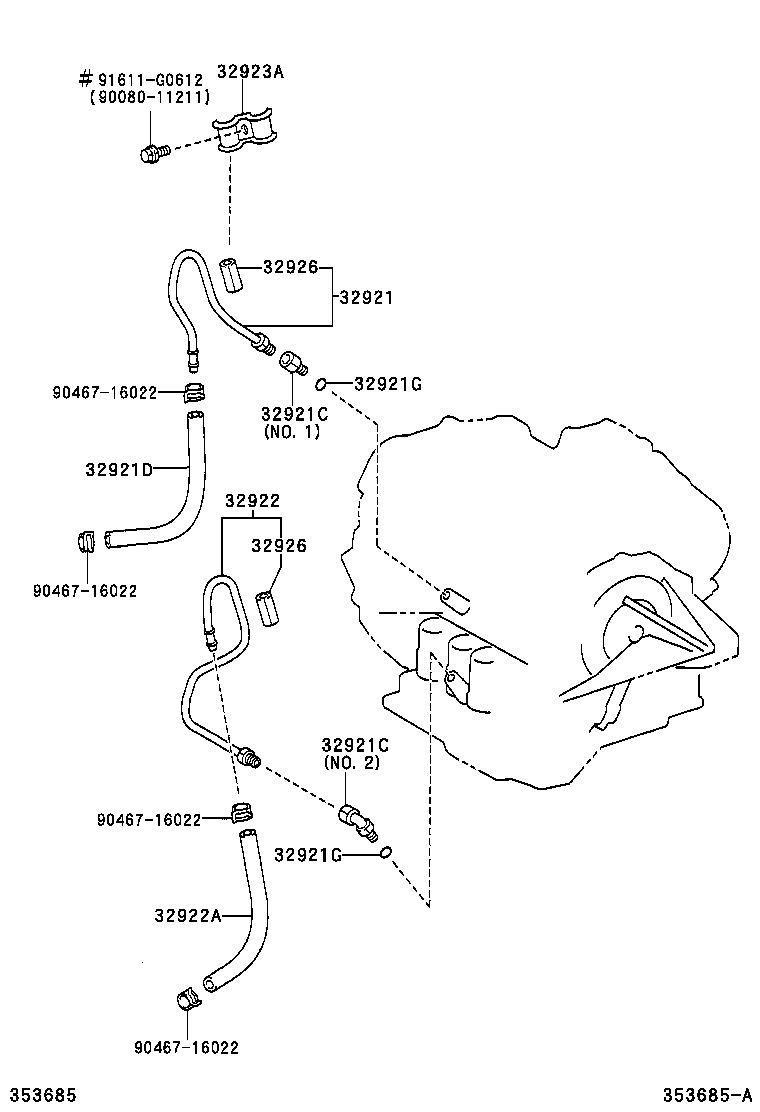

Click highlighted areas on diagram

U140E,U241E,U151E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923A 32926 32926 9008011211 9046716022 9046716022 9046716022 9046716022 91611G0612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-06140

MCV30..TAIW

 1
32921-06150

MCV30..TAIW

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-33050

MCV30..5FC

 1
90445-17124

MCV30..TAIW

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-06130

MCV30..TAIW

 1
32922-06110

ACV31,MCV30..TAIW

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17124

ACV31,MCV30..TAIW

 1
32942-33030

MCV30..5FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12074

ACV31,MCV30..TAIW

 1
90462-12074

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ACV31,MCV30..TAIW

L=35,ID=10

 2
32926-30020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ACV31,MCV30..TAIW

L=35,ID=10

 2
32926-30020

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

L=35,ID=10

 2
Common parts
90080-11211
90467-16022
91611-G0612
