MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0404- )5FC

Click highlighted areas on diagram

U151E

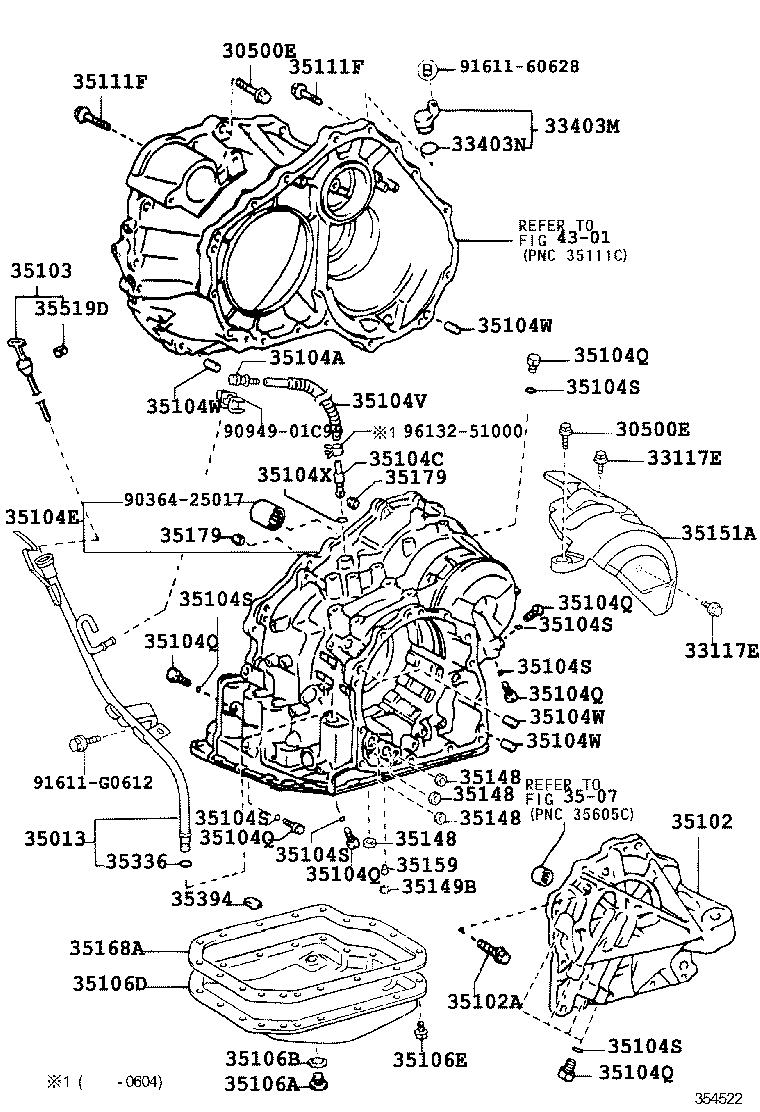

diagram 30500E 30500E 33117E 33117E 33403M 33403N 35013 3507 35102 35102A 35103 35104A 35104C 35104E 35104Q 35104Q 35104Q 35104Q 35104Q 35104Q 35104Q 35104S 35104S 35104S 35104S 35104S 35104S 35104S 35104V 35104W 35104W 35104W 35104W 35104X 35106A 35106B 35106D 35106E 35111F 35111F 35148 35148 35148 35148 35149B 35151A 35159 35168A 35179 35179 35336 35394 35519D 4301 9036425017 9094901C99 9161160628 91611G0612 9613251000
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

ACV31,MCV30..TAIW

*12-1.25PX55-30

 3
92412-H1055

MCV30..TAIW

*10-1.25PX55-30

 1
90119-12250

MCV30..TAIW

*12-1.25PX50-30

 1
91619-61265

MCV30..TAIW

*12-1.25PX65-30

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

ACV31,MCV30..TAIW

*12-1.25PX55-30

 3
92412-H1055

MCV30..TAIW

*10-1.25PX55-30

 1
90119-12250

MCV30..TAIW

*12-1.25PX50-30

 1
91619-61265

MCV30..TAIW

*12-1.25PX65-30

 1
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-21020

MCV30..TAIW

 1
33403-21020

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24020

MCV30..TAIW

 1
96711-24020

MCV30..VN..5FC;MCV30..PHL,TAIW,TH

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-06110

MCV30..TAIW

 1
35013-06090

MCV30..TAIW

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-33030

MCV30..5FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08071

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

*8-1.25PX30-25

 11
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-33220

MCV30..TAIW

 1
35103-06040

MCV30..TAIW

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90930-03149

MCV30..5FC

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90930-03157

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
35104V - HOSE (FOR BREATHER PLUG)
35121-48030

MCV30..5FC

 1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-21010

ACV3#,MCV30

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

ACV31,MCV30..TAIW

 1
90301-09173

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

MCV30..5FC

NO.1

 2
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-52010

MCV30..5FC

 1
35519-20030

ACV31,MCV30..TAIW

 1
Common parts
90364-25017
90949-01C99
91611-60628
91611-G0612
96132-51000
