MCV30L-JEAGKR (2004)
Toyota Camry
(0203- )ATM
U140E,U241E,U151E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

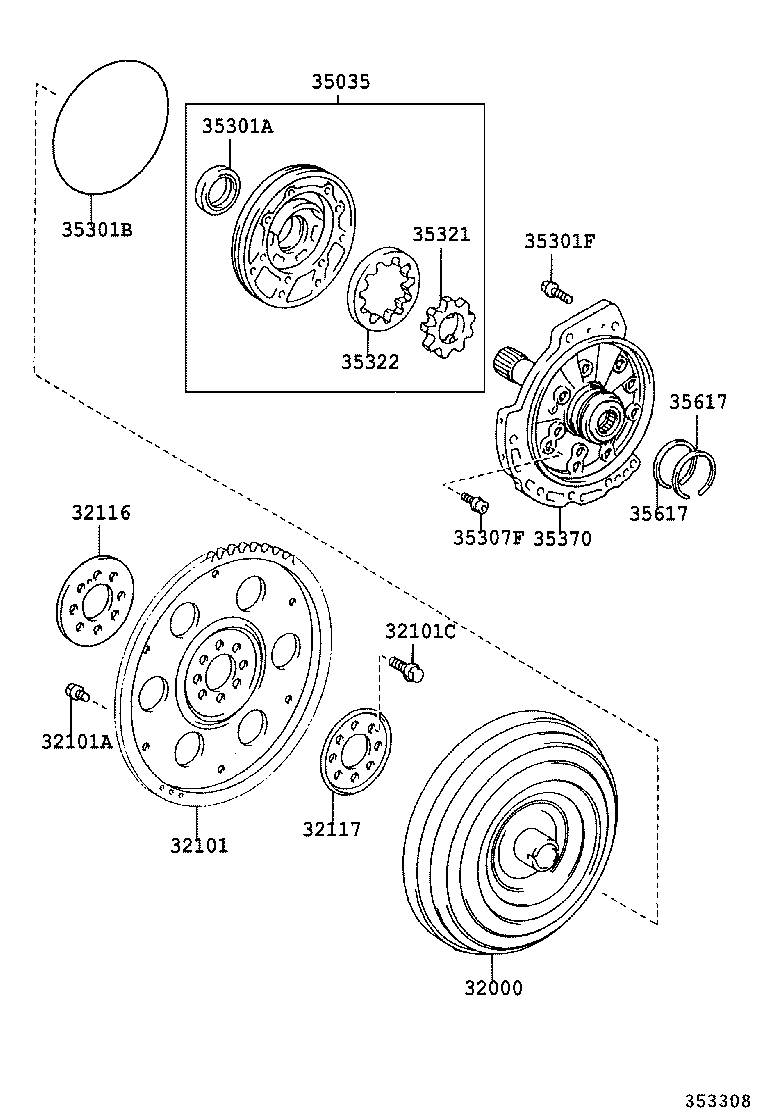

| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-06010 |
MCV30..TAIW (L) |
1 | ||
| 32101-33010 |
MCV30 (J) |
1 | ||
| 32101-48010 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH (J) |
1 | ||
| 32101-06010 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH (L) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09025 |
ACV31,MCV30..TAIW *9-1.25PX12.4-8.4 |
5 | ||
| 90109-09001 |
ACV31,MCV30..TAIW *9-1.25PX12.4-7.3 |
1 | ||
| 90119-09025 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) *9-1.25PX12.4-8.4 |
5 | ||
| 90109-09001 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) *9-1.25PX12.4-7.3 |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
MCV30..TAIW *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH *10-1.25PX18-13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32020 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 32116-32020 |
MCV30..TAIW |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
MCV30..TAIW |
1 | ||
| 32117-32020 |
MCV30..VN..5FC;MCV30..PHL,TAIW,TH |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99099 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
MCV30..5FC *8-1.25PX28-28 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60027 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-33080 |
MCV30..5FC T=11.715,MARK C |
1 | ||
| 35321-33100 |
MCV30..5FC T=11.715,MARK E |
1 | ||
| 35321-33090 |
MCV30..5FC T=11.715,MARK D |
1 | ||
| 35321-33060 |
MCV30..5FC T=11.715,MARK A |
1 | ||
| 35321-33070 |
MCV30..5FC T=11.715,MARK B |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-33060 |
MCV30..5FC T=11.715,MARK A |
1 | ||
| 35322-33090 |
MCV30..5FC T=11.715,MARK D |
1 | ||
| 35322-33100 |
MCV30..5FC T=11.715,MARK E |
1 | ||
| 35322-33080 |
MCV30..5FC T=11.715,MARK C |
1 | ||
| 35322-33070 |
MCV30..5FC T=11.715,MARK B |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH) |
2 | ||
