MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

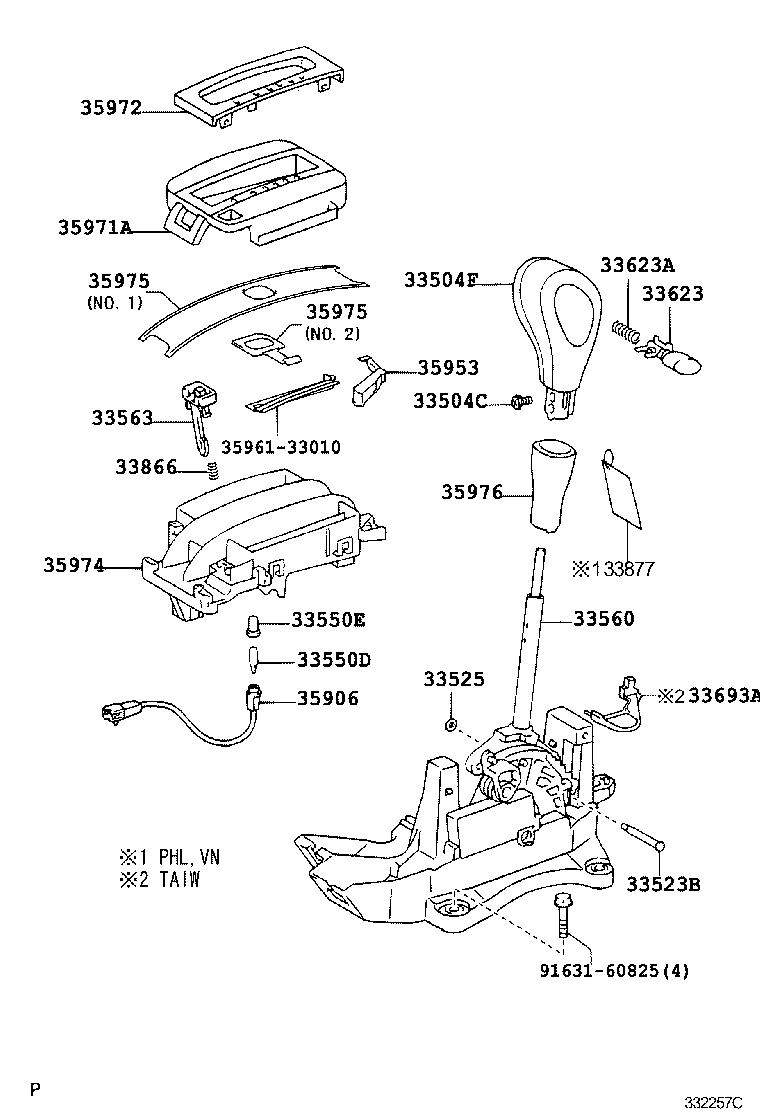

ILLUST NO. 1 OF 2(0404- )5FC

Click highlighted areas on diagram

diagram 33504C 33504F 33523B 33525 33550D 33550E 33560 33563 33623 33623A 33693A 33866 33877 35906 35953 3596133010 35971A 35972 35974 35975 35975 35976 9163160825
Part # Description Qty Price
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-06090E0

ACV31,MCV30..(20G,30G,30V)..TAIW

WOOD KNOB,SANDAL WOOD,TRIM0#

 1
33542-06070E0

ACV31,MCV30..(20G,30G,30V)..TAIW

SANDAL WOOD,TRIM4#

 1
33542-06070B0

ACV31,MCV30..(20G,30G,30V)..TAIW

DK.CHARCOAL,TRIM1#

 1
33542-06090C0

ACV31,MCV30..(20G,30G,30V)..TAIW

WOOD KNOB,BLACK,TRIM2#

 1
33542-06090

ACV31,MCV30..(20G,30G,30V)..TAIW

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
33523-33010

MCV30..5FC

 1
33525 - SUPPORT, SHIFT LEVER
33525-42010

MCV30..5FC

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

14V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-06020

ACV31,MCV30..TAIW

 1
33560-06040

MCV30..TAIW

 1
33560-33110

MCV30..5FC

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-06050

MCV30..TAIW

 1
33563-33180

MCV30..5FC

 1
33563-06050

ACV31,MCV30..TAIW

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07116

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
33693A - SHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT)
33693-06020

ACV31,MCV30..TAIW

 1
33693-06020

MCV30..TAIW

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010

MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-06030

ACV31,MCV30..TAIW

 1
35906-06050

MCV30..TAIW

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-33030

MCV30..5FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-33180

MCV30..5FC

 1
35972 - COVER, POSITION INDICATOR HOUSING
35972-06020

ACV31,MCV30..TAIW

 1
35972-33050

MCV30..5FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-06040

ACV31,MCV30..TAIW

 1
35974-33120

MCV30..5FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-33080

MCV30..5FC

NO.1

 1
35975-06050

ACV31,MCV30..TAIW

 1
35976-33080

MCV30..5FC

NO.2

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-33080

MCV30..5FC

NO.1

 1
35975-06050

ACV31,MCV30..TAIW

 1
35976-33080

MCV30..5FC

NO.2

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-06060

MCV30..5FC

 1
35976-06060C0

MCV30..TAIW

BLACK,TRIM2#

 1
35976-06060E0

MCV30..TAIW

SANDAL WOOD,TRIM0#

 1
Common parts
35961-33010
91631-60825

ILLUST NO. 2 OF 2(0404- )5FC

Click highlighted areas on diagram

diagram 33574B 33723Q 33820B 33821B 33823 33826A 33880A 3513 90119T0029 90119T0029 90119T0112 9046814004 9046814016 91611B0816 91611B0816 91621J0614
Part # Description Qty Price
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-06050

ACV31,MCV30..TAIW

 1
33574-06050

ACV31,MCV30..TAIW

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054

ACV31,MCV30..TAIW

 1
90179-08054

ACV31,MCV30..TAIW

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06240

MCV30..TAIW

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33577-33070

ACV31,MCV30..TAIW

 1
33577-33070

ACV31,MCV30..TAIW

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33040

MCV30..TAIW

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-33010

MCV30;ACV3#..(IDN,MA,PHL,TH)..4FC

 1
33826-33040

MCV30..TAIW

 1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-33050

ACV31,MCV30..TAIW

 1
33880-33050

ACV30..PHL;MCV30..5FC;ACV31..TAIW

 1
Common parts
90119-T0029
90119-T0112
90468-14004
90468-14016
91611-B0816
91621-J0614
Linked diagrams
3513
