Toyota Camry MCV30 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0A080	1MZFE..MCV30..TAIW 12V 100A	04/2004 - 12/2999	1
27060-0A080	1MZFE..MCV30..TAIW 12V 100A	03/2002 - 04/2004	1
27039 - COVER, ALTERNATOR REAR END
27039-20160	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27039-20160	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27064-42010	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0A070	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27310-0A070	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10002	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
90099-10192	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27312 - PLATE, RETAINER
27312-42010	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27312-42010	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0A070	1MZFE..MCV30..TAIW	04/2004 - 05/2006	1
27330-0A070	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90068-10013	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
90068-10013	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-0A070	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
27359-0A070	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27365 - PLATE, TERMINAL
27365-55080	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27365-55080	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27384 - WASHER
27384-50030	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27384-50030	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27387 - INSULATOR, TERMINAL
27387-42021	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27387-42021	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27388-42010	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27389 - INSULATOR, TERMINAL
27389-42010	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	4
27389-42010	1MZFE..MCV30..TAIW	04/2004 - 12/2999	4
27443 - COVER, ALTERNATOR BEARING
27443-63020	1AZFE,1MZFE..ACV31,MCV30..TAIW	03/2002 - 04/2004	1
27443-63020	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27446 - CLIP, ALTERNATOR CORD
27446-62050	1MZFE..MCV30..TAIW	04/2004 - 12/2999	1
27446-62050	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
27700A - REGULATOR ASSY, GENERATOR
27700-20050	1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN	04/2004 - 12/2999	1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
93319-14025
94150-80600

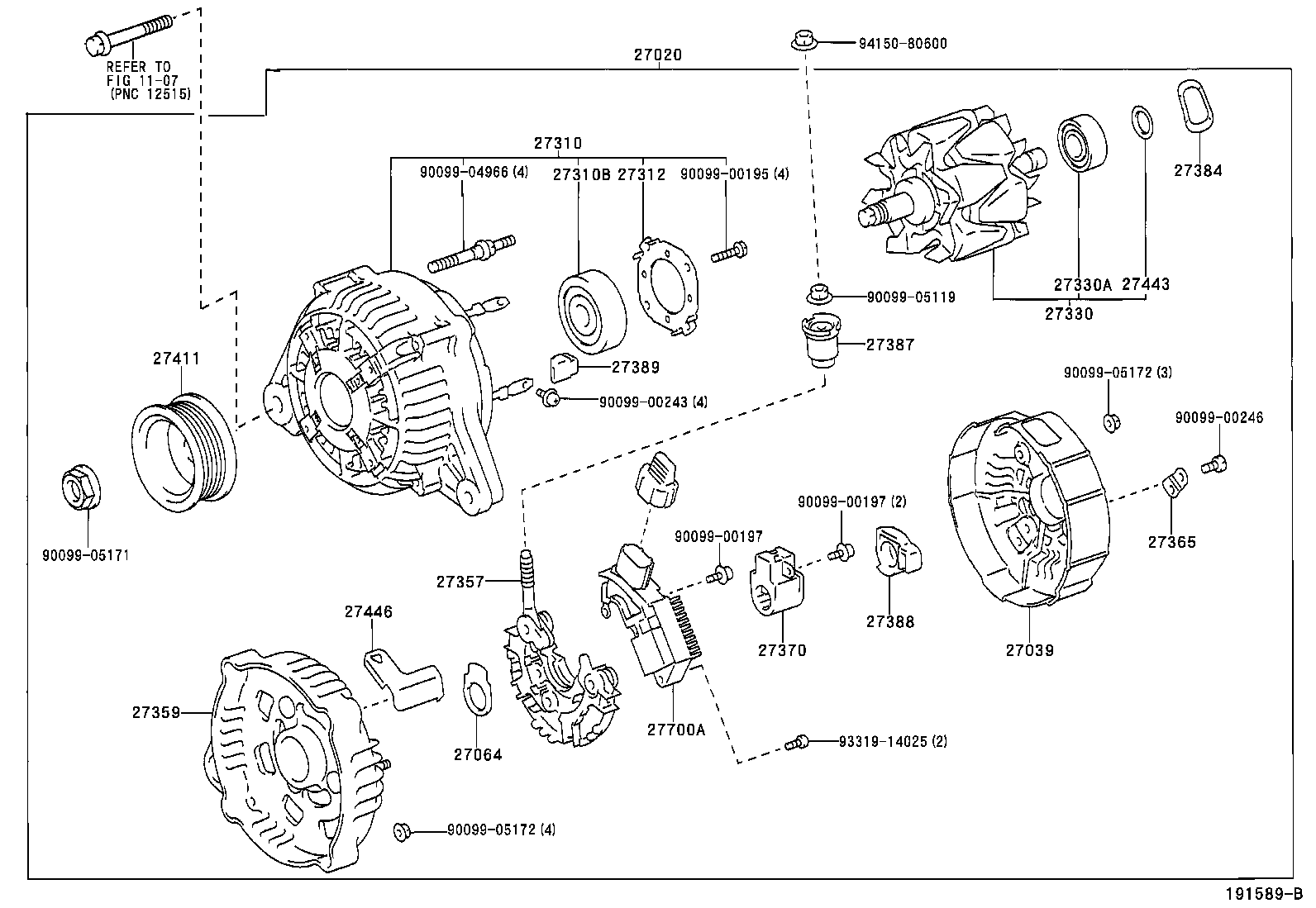

Linked diagrams
1107

MCV30L-JEAGKR (2004)

(0203- )1MZFE..TAIW
