MCV30L-JEAGKR (2004)
Toyota Camry

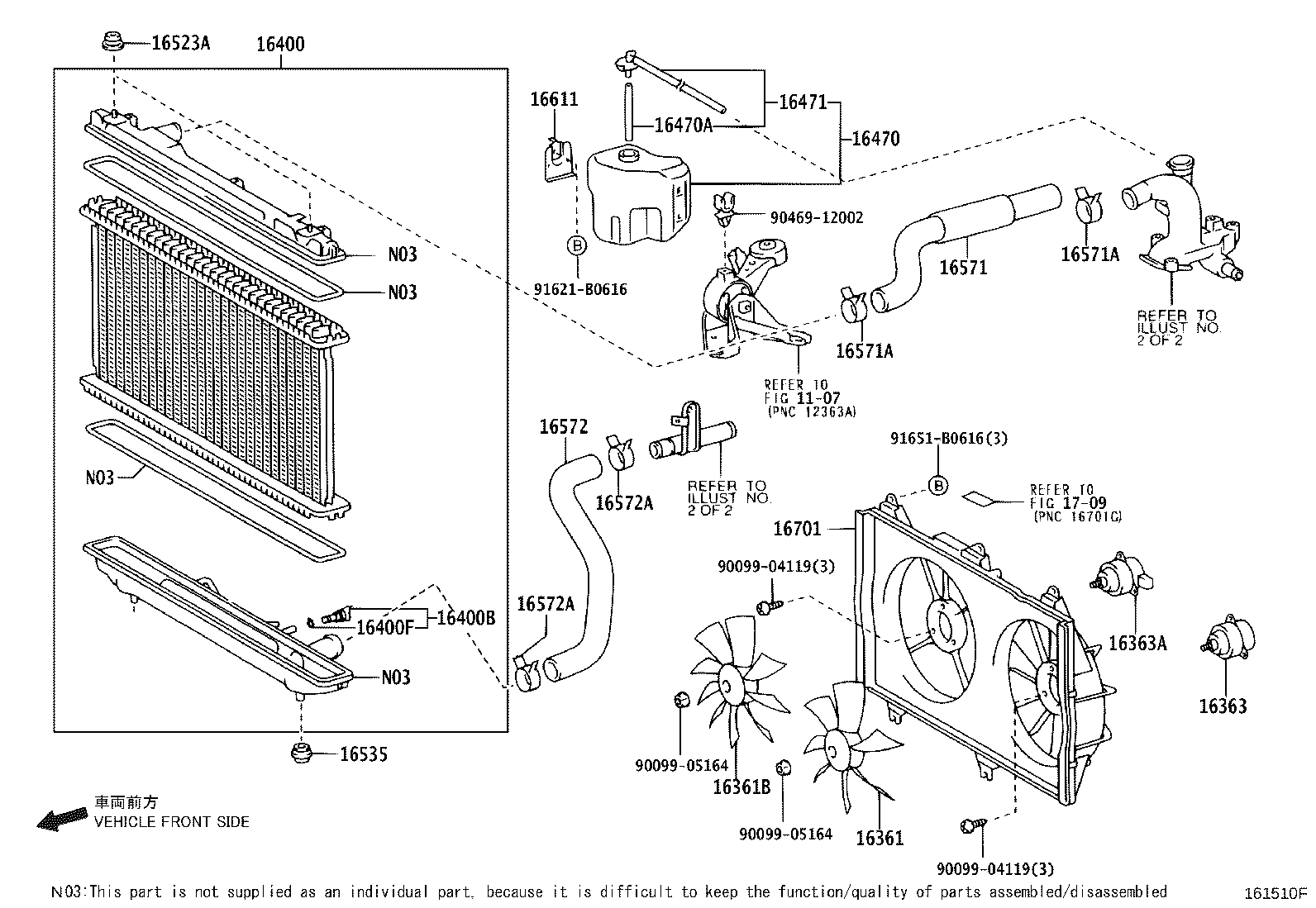

ILLUST NO. 1 OF 2(0203- )1MZFE..TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-20110 |
1MZFE..MCV30 |
1 | ||
| 16361-20111 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-20120 |
1MZFE..MCV30 |
1 | ||
| 16361-20121 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20320 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16363-20210 |
1MZFE..MCV30 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-20220 |
1MZFE..MCV30 |
1 | ||
| 16363-20330 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0A280 |
1MZFE..MCV30..TAIW |
1 | ||
| 16400-0A280 |
1MZFE..MCV30..TAIW |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-8C000 |
1MZFE..MCV30..TAIW |
1 | ||
| 16417-8C000 |
1MZFE..MCV30..TAIW |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0A080 |
1MZFE..MCV30..TAIW |
1 | ||
| 16470-0A080 |
1MZFE..MCV30..TAIW |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1MZFE..MCV30..TAIW *H,L=145 |
1 | ||
| 90445-12078 |
1MZFE..MCV30..TAIW *H,L=145 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0A020 |
1MZFE..MCV30..TAIW |
1 | ||
| 16405-0A020 |
1MZFE..MCV30..TAIW |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0H020 |
1MZFE..MCV30..TAIW |
2 | ||
| 16523-0H020 |
1MZFE..MCV30..TAIW |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A080 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0A050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0A050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28010 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-20140 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90469-12002 | ||||
| 91621-B0616 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(0203- )1MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-20010 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16261-20010 |
1MZFE..MCV30..TAIW |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-20040 |
1MZFE..MCV30..5FC |
1 | ||
| 16264-20030 |
1MZFE..MCV30..TAIW |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1MZFE..MCV30..TAIW |
2 | ||
| 96135-51300 |
1MZFE..MCV30..5FC |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1MZFE..MCV30..TAIW |
2 | ||
| 96135-51300 |
1MZFE..MCV30..5FC |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-20040 |
1MZFE..MCV30..5FC |
1 | ||
| 16267-20030 |
1MZFE..MCV30..TAIW |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1MZFE..MCV30..5FC |
2 | ||
| 96137-41501 |
1MZFE..MCV30..TAIW |
2 | ||
| 96135-51300 |
1MZFE..MCV30..TAIW |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1MZFE..MCV30..5FC |
2 | ||
| 96137-41501 |
1MZFE..MCV30..TAIW |
2 | ||
| 96135-51300 |
1MZFE..MCV30..TAIW |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-20010 |
1MZFE..MCV30..TAIW |
1 | ||
| 16321-20030 |
1MZFE..MCV30..5FC |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-20020 |
1MZFE..MCV30..TAIW |
1 | ||
| 16322-20031 |
1MZFE..MCV30..5FC |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 96761-35031 |
1MZFE..MCV30..TAIW |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-20020 |
1MZFE..MCV30..5FC |
1 | ||
| 16323-20010 |
1MZFE..MCV30..TAIW |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1MZFE..MCV30..TAIW |
1 | ||
| 16325-62010 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-20060 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16331-20060 |
1MZFE..MCV30..TAIW |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1MZFE..MCV30..TAIW *WAX 82-95 |
1 | ||
| 90916-03129 |
1MZFE..MCV30 *WAX 82-95 |
1 | ||
| 90916-03084 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
1MZFE..MCV30..TAIW |
1 | ||
| 16401-62090 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08230 | ||||
| 90179-08233 | ||||
| 91511-B0616 | ||||
| 91621-J0814 | ||||
| 91631-B0820 | ||||
| 92122-60612 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||
| 8719 | ||||
