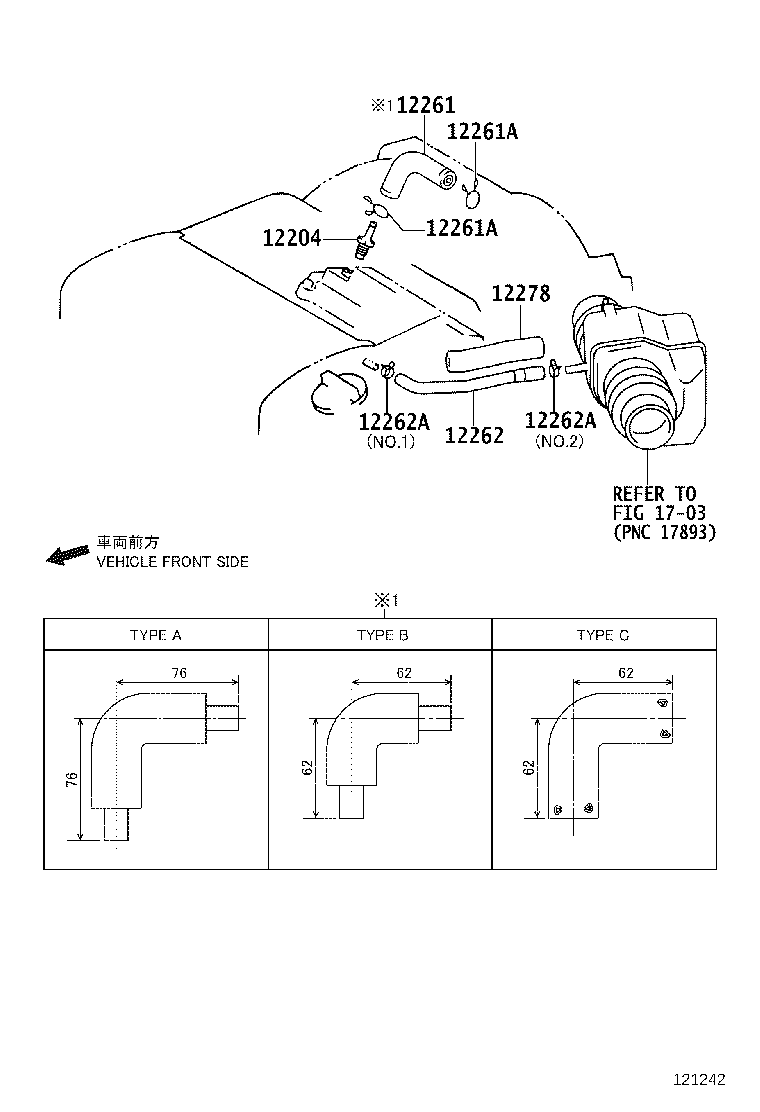

Toyota Camry MCV30 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-20040	1MZFE..MCV30..TAIW	03/2002 - 04/2004	1
12204-20060	1MZFE..MCV30	12/2004 - 01/2005	1
12204-20040	1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH	04/2004 - 12/2004	1
12204-20040	1MZFE..MCV30	01/2005 - 12/2999	1
12261 - HOSE, VENTILATION
12261-20090	1MZFE..MCV30 TYPE B:REFER ILLUST.	12/2004 - 09/2005	1
12261-20011	1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH TYPE A:REFER ILLUST.	04/2004 - 12/2004	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH	04/2004 - 12/2999	2
90467-14017	1MZFE..MCV30..TAIW	03/2002 - 04/2004	2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH	04/2004 - 12/2999	2
90467-14017	1MZFE..MCV30..TAIW	03/2002 - 04/2004	2
Linked diagrams
1703

MCV30L-JEAGKR (2004)
