MCV30L-JEAGKR (2004)

Toyota Camry

Production Apr 2004 - May 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0404- )1MZFE..5FC

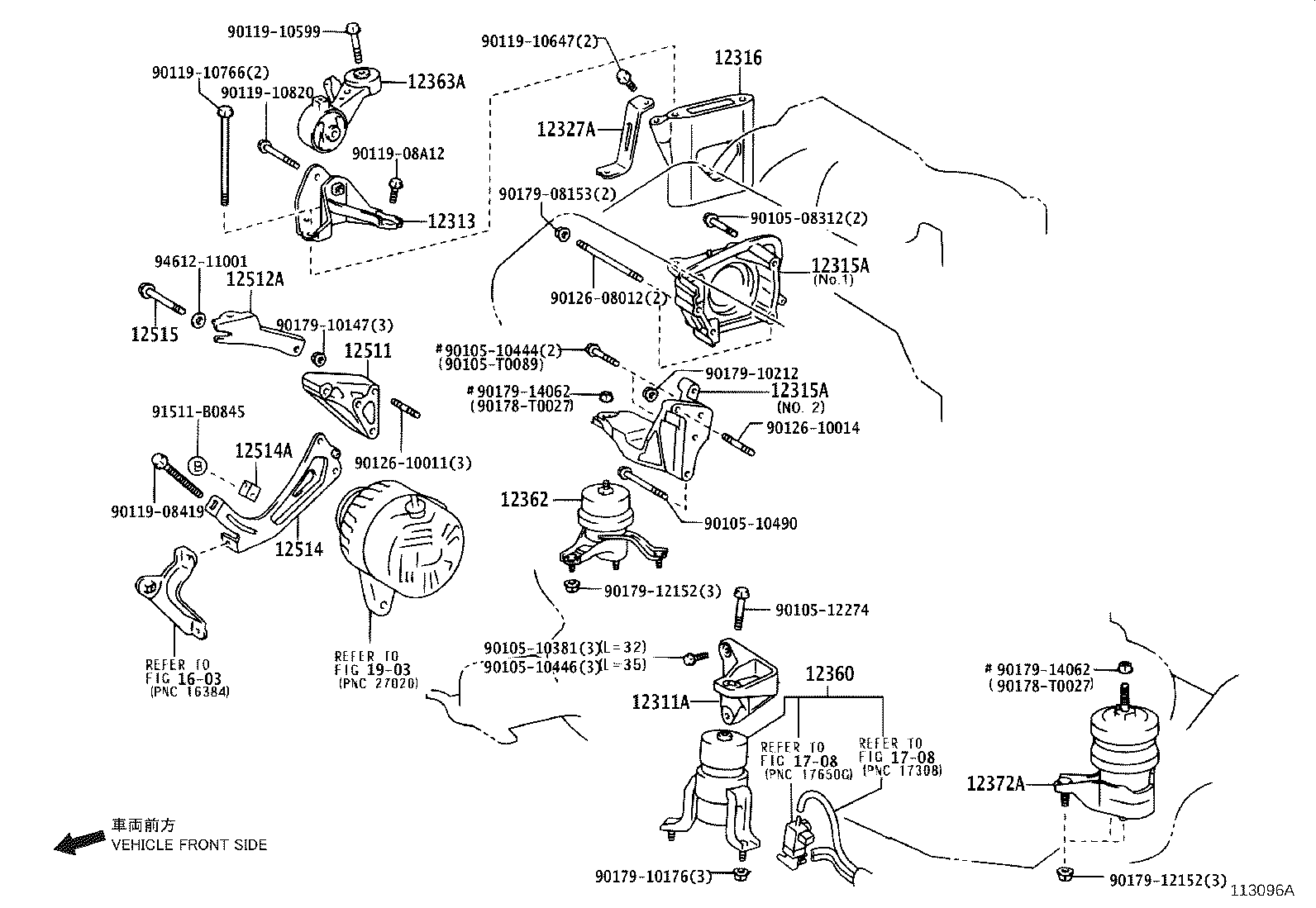

Click highlighted areas on diagram

diagram 12311A 12313 12315A 12315A 12316 12327A 12360 12362 12363A 12372A 12511 12512A 12514 12514A 12515 1603 1708 1708 1903 9010508312 9010510381 9010510444 9010510446 9010510490 9010512274 90105T0089 9011908419 9011908A12 9011910599 9011910647 9011910766 9011910820 9012608012 9012610011 9012610014 90178T0027 90178T0027 9017908153 9017910147 9017910176 9017910212 9017912152 9017912152 9017914062 9017914062 91511B0845 9461211001
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0A060

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0A050

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0A020

1MZFE..MCV30..TAIW

NO.2

 1
12315-20020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

NO.1

 1
12315-20020

1MZFE..MCV30..TAIW

NO.1

 1
12315-0A020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

NO.2

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0A020

1MZFE..MCV30..TAIW

NO.2

 1
12315-20020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

NO.1

 1
12315-20020

1MZFE..MCV30..TAIW

NO.1

 1
12315-0A020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

NO.2

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-20020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-0A010

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-20180

1MZFE..MCV30..5FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-20010

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0A070

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-20060

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-20020

1MZFE..MCV30..TAIW

 1
12511-20020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12512A - BRACKET, ALTERNATOR, NO.2
12512-20020

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12512-20020

1MZFE..MCV30..TAIW

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-20010

1MZFE..MCV30..TAIW

 1
12514-20010

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-20010

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
12515 - BOLT, ALTERNATOR THROUGH
12515-20010

1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH

 1
Common parts
90105-08312
90105-10381
90105-10444
90105-10446
90105-10490
90105-12274
90105-T0089
90119-08419
90119-08A12
90119-10599
90119-10647
90119-10766
90119-10820
90126-08012
90126-10011
90126-10014
90178-T0027
90179-08153
90179-10147
90179-10176
90179-10212
90179-12152
90179-14062
91511-B0845
94612-11001
Linked diagrams
1603
1708
1903
