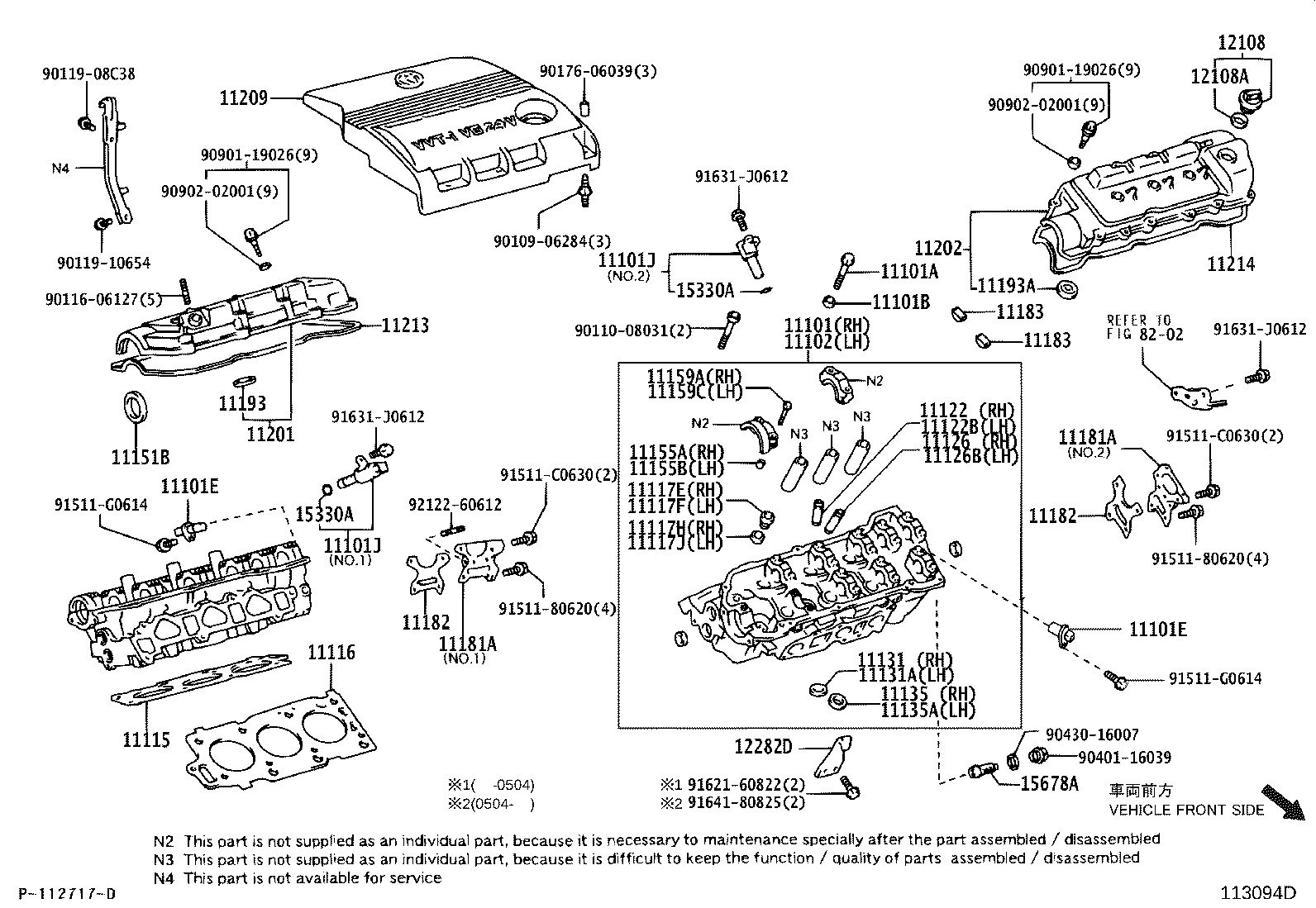

MCV30L-JEAGKR (2004)
Toyota Camry
(0404- )1MZFE..5FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29409 |
1MZFE..MCV30 |
1 | ||
| 11101-29438 |
1MZFE..MCV30..5FC |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02117 |
1MZFE..MCV30..TAIW |
16 | ||
| 90910-02117 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11031 |
1MZFE..MCV30..TAIW |
16 | ||
| 90201-11031 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
16 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05026 |
1MZFE..MCV30..5FC |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05026 |
1MZFE..MCV30..5FC |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-20011 |
1MZFE..MCV30..5FC NO.2 |
1 | ||
| 15330-20011 |
1MZFE..MCV30..5FC NO.1 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-20011 |
1MZFE..MCV30..5FC NO.2 |
1 | ||
| 15330-20011 |
1MZFE..MCV30..5FC NO.1 |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-29058 |
1MZFE..MCV30..5FC |
1 | ||
| 11102-29039 |
1MZFE..MCV30 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-20040 |
1MZFE..MCV30 |
1 | ||
| 11115-20032 |
1MZFE..MCV30..5FC |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-20040 |
1MZFE..MCV30 |
1 | ||
| 11116-20032 |
1MZFE..MCV30..5FC |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24013 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-24013 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24246 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24246 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.05 |
6 | ||
| 11122-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-20020 |
1MZFE..MCV30 STD |
6 | ||
| 11123-20020 |
1MZFE..MCV30 O/S 0.05 |
6 | ||
| 11122-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11123-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11127-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.05 |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11127-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.05 |
6 | ||
| 11126-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-62030 |
1MZFE..MCV30 STD |
6 | ||
| 11132-62030 |
1MZFE..MCV30 O/S 0.03 |
6 | ||
| 11131-62050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11132-62050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.03 |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-62050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11131-62030 |
1MZFE..MCV30 STD |
6 | ||
| 11132-62030 |
1MZFE..MCV30 O/S 0.03 |
6 | ||
| 11132-62050 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-20040 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11136-20040 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.03 |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11136-20040 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH O/S 0.03 |
6 | ||
| 11135-20040 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH STD |
6 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38034 |
1MZFE..MCV30..TAIW |
2 | ||
| 90311-38034 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
19 | ||
| 11155B - PIN, RING | ||||
| 90253-10004 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
19 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
20 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
20 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11108-20010 |
1MZFE..MCV30..5FC NO.1 |
1 | ||
| 11109-20010 |
1MZFE..MCV30..5FC NO.2 |
1 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11108-20010 |
1MZFE..MCV30..5FC NO.1 |
1 | ||
| 11109-20010 |
1MZFE..MCV30..5FC NO.2 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-20020 |
1MZFE..MCV30..5FC |
2 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-20020 |
1MZFE..MCV30..5FC |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-20010 |
1MZFE..MCV30..TAIW |
4 | ||
| 11183-20010 |
1MZFE..MCV30..5FC |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-20010 |
1MZFE..MCV30..TAIW |
4 | ||
| 11183-20010 |
1MZFE..MCV30..5FC |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
3 | ||
| 11193-70010 |
1MZFE..MCV30..TAIW |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-20050 |
1MZFE..MCV30 |
1 | ||
| 11201-20100 |
1MZFE..MCV30..5FC |
1 | ||
| 11201-20080 |
1MZFE..MCV30..5FC |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-20031 |
1MZFE..MCV30..TAIW |
1 | ||
| 11202-20051 |
1MZFE..MCV30..5FC |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-20100 |
1MZFE..MCV30..5FC |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-20020 |
1MZFE..MCV30..TAIW |
1 | ||
| 11213-20030 |
1MZFE..MCV30..5FC |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-20030 |
1MZFE..MCV30..5FC |
1 | ||
| 11214-20010 |
1MZFE..MCV30..TAIW |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-20030 |
1MZFE..MCV30..TAIW |
1 | ||
| 12180-20030 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-20020 |
1MZFE..MCV30..TAIW |
1 | ||
| 12195-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-20020 |
1MZFE..MCV30..TAIW |
1 | ||
| 12282-20020 |
1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1MZFE..MCV30..5FC |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1MZFE..MCV30..5FC |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-20010 |
1MZFE..MCV30..5FC |
2 | ||
| Common parts | ||||
| 90109-06284 | ||||
| 90110-08031 | ||||
| 90116-06127 | ||||
| 90119-08C38 | ||||
| 90119-10654 | ||||
| 90176-06039 | ||||
| 90401-16039 | ||||
| 90430-16007 | ||||
| 90901-19026 | ||||
| 90902-02001 | ||||
| 91511-80620 | ||||
| 91511-C0630 | ||||
| 91511-G0614 | ||||
| 91621-60822 | ||||
| 91631-J0612 | ||||
| 91641-80825 | ||||
| 92122-60612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
