MCV30L-JEAEKM (2004)

Toyota Camry

Production Jul 2004 - Aug 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0407- )MCV30..PHL,VN

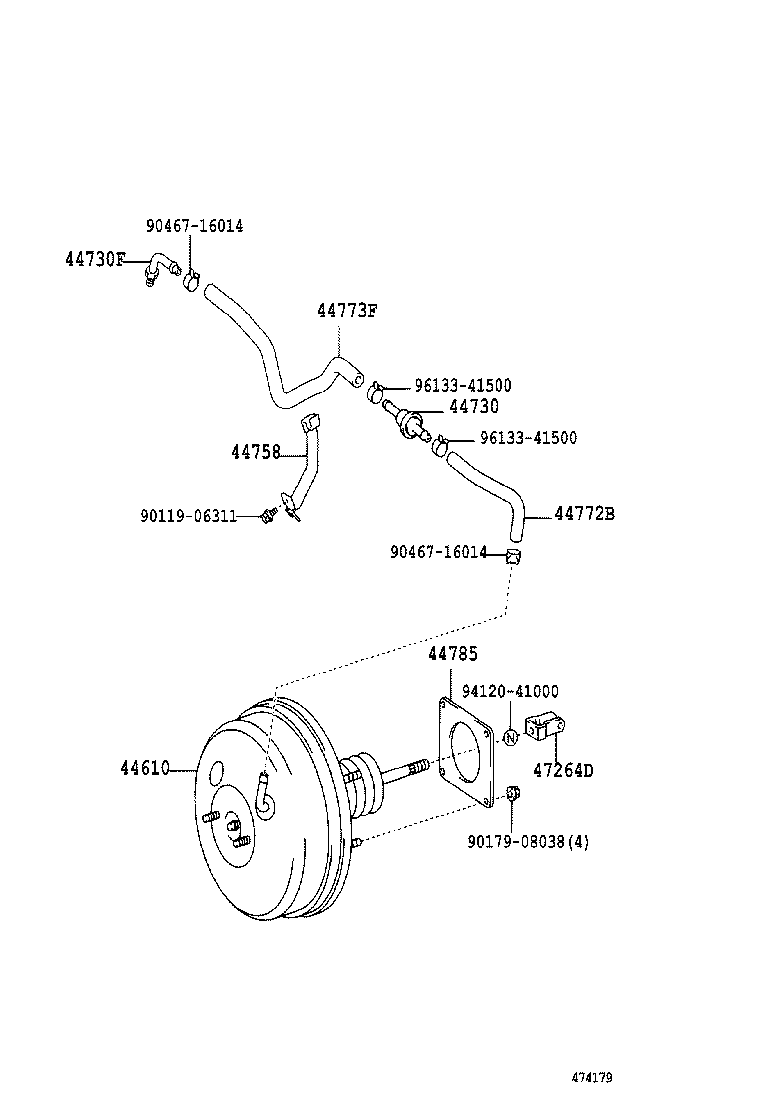

Click highlighted areas on diagram

diagram 44610 44730 44730F 44758 44772B 44773F 44785 47264D 9011906311 9017908038 9046716014 9046716014 9412041000 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-33690

ACV30,MCV30..PHL,VN

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-33070

MCV30..PHL,VN

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-33100

ACV30,MCV30..PHL,VN

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ACV3#,MCV30..MA,PHL,VN

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-12060

ACV3#,MCV30..MA,PHL,VN

 1
47264-63010

ACV3#,MCV30..IDN,MA,PHL,TH,VN

 1
Common parts
90119-06311
90179-08038
90467-16014
94120-41000
96133-41500
