CV11L-UEPEXW (1985)

Toyota Camry

Production Aug 1985 - Oct 1986
Engine 2CTL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CV11..LHD

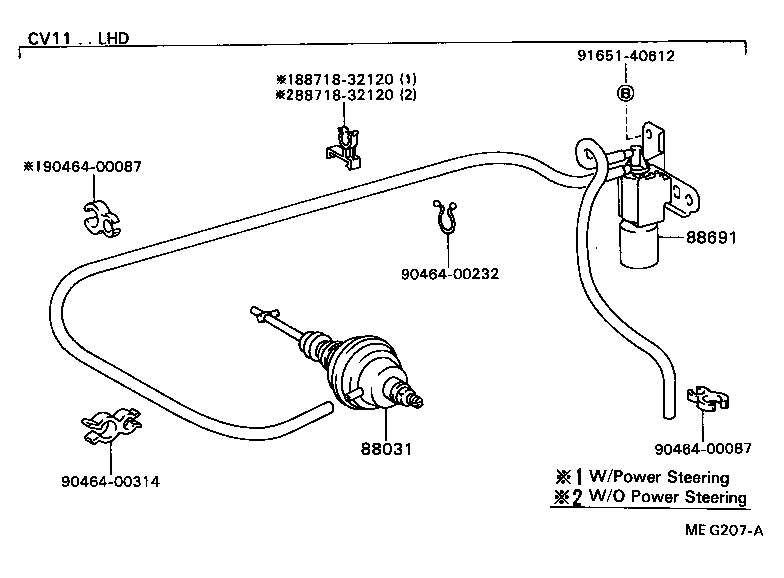

Click highlighted areas on diagram

diagram 88031 88691 8871832120 8871832120 9046400087 9046400087 9046400232 9046400314 9165140612
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30070

CV11..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-32230

CV11..LHD

 1
Common parts
88718-32120
90464-00087
90464-00232
90464-00314
91651-40612
